Design and Implementation

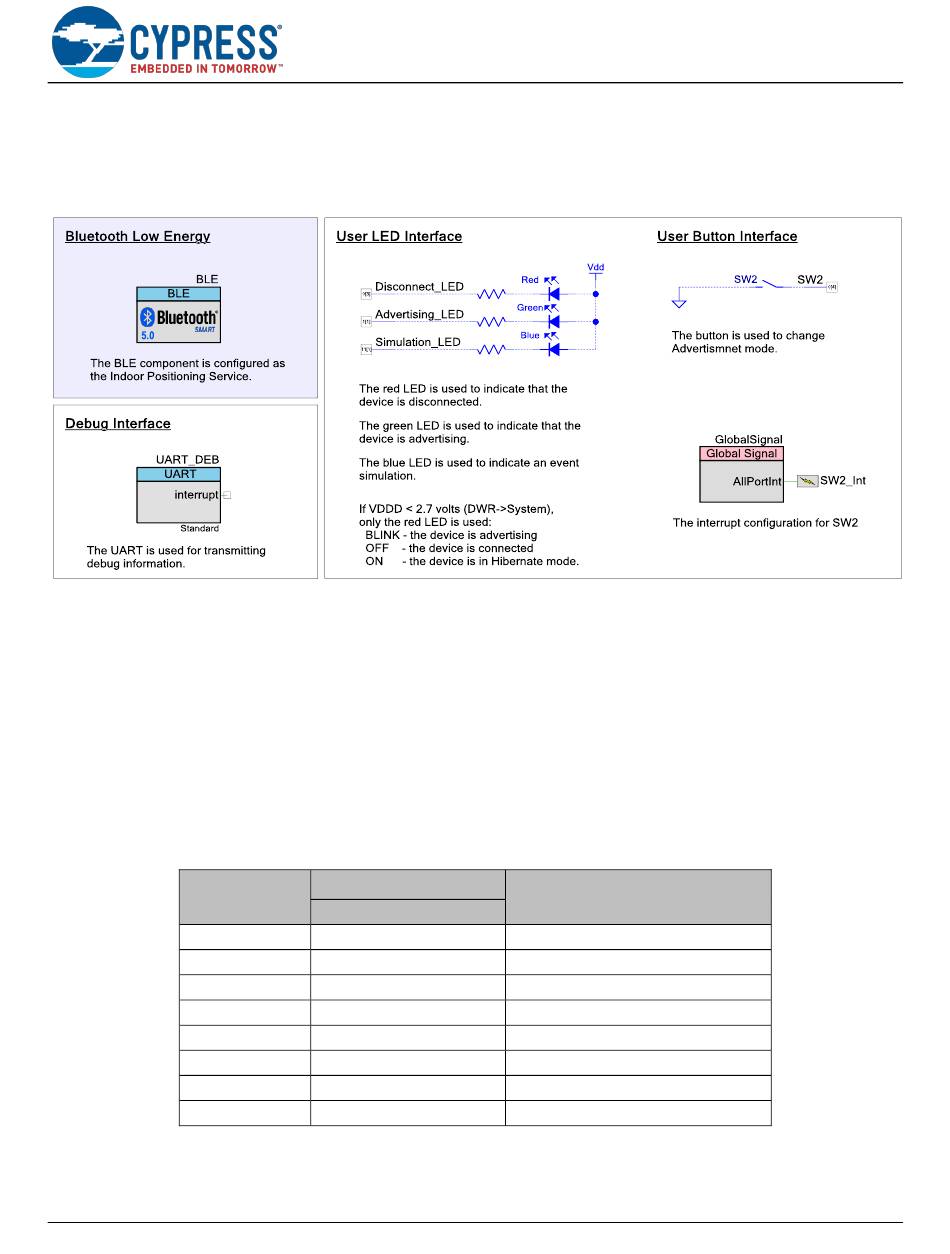

Figure 10
shows the top design schematic.
This project demonstrates the functionality of the BLE Component configured as the IPS Server. It is designed to work with
CySmart.
After startup, the device initializes the BLE Component. To operate, the Component requires several callback functions to receive
events from the BLE Stack. AppCallBack() is used to receive general BLE events. Another callback (IpsCallBack()) is used
to receive events specific to the service's attribute operations.
The CYBLE_EVT_STACK_ON event indicates successful initialization of the BLE Stack. After this event is received, the Component
starts fast advertising with the packet structure as configured in the BLE Component Customizer.
UART is used to print the debug information and scan the commands from the terminal.
Pin Assignments
Table 2
lists the pin assignments and connections required on the development board for supported
Pin Name
\UART_DEB:rx\
\UART_DEB:tx\
\UART_DEB:rts\
\UART_DEB:cts\
Disconnect_LED
Advertising_LED
Simulation_LED
SW2
www.cypress.com
Figure 10. BLE Indoor Positioning Code Example Schematic
Table 2. Pin Assignment
Development Kit
CY8CKIT-062
P5[0]
P5[1]
P5[2]
P5[3]
P0[3]
P1[1]
P11[1]
P0[4]
Document No. 002-17647 Rev.**
BLE Indoor Positioning with PSoC 6 MCU with BLE Connectivity
Comment
The red color of the RGB LED
The green color of the RGB LED
The blue color of the RGB LED
kits.
10
