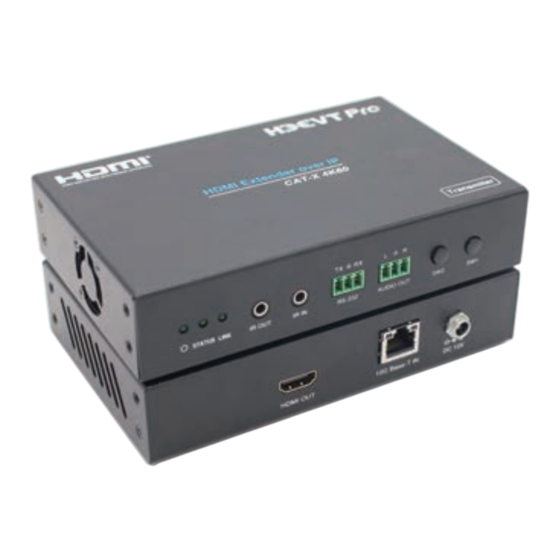

- Page 1 ST-IP4K18GB-L/R-RS HDMI Extender over IP True 4K60 UltraHD VER 1.1...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this man- ual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lighting strikes, etc.
- Page 3 Audio down-mixing and re-sampling Video-splitting and bezel correction Note: Transmitter and Receiver 3. Package Contents are each sold separately 1× HDMI Extender Transmitter (ST-IP4K18GB-L-RS) -OR- 1× HDMI Extender Receiver (ST-IP4K18GB-R-RS) Also included: 1× 12V/2.5A DC Power Adapter 1× Wideband IR Receiver cables 1×...
- Page 4 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz, Video Resolutions 1080P@120Hz, and 1080P 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 4K60 10-bit, 1080p 12-bit HDMI Audio LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and Formats DTS HD Master Audio Human body model —...
- Page 5 Operation 32 - 104°F / 0 - 40°C Temperature Storage temperature -4 - 140°F / -20 - 60°C Relative Humidity 20 - 90% RH (no condensation) 5. Operation Controls and Functions 5.1 Transmitter Panel Number Name Function descriptions Connect to the HDMI source device, such as HDMI IN DVD player or Set top box.
- Page 6 Use the terminal block to connect audio output. AUDIO OUT This port output is from HDMI input port audio. SW2 button Reserved button. SW1 button Reserved button. 5.2 Receiver Panel Number Name Function descriptions Connect to the HDMI output source device, such HDMI OUT as HDTV or monitor.
- Page 7 Use the terminal block to connect audio output. AUDIO OUT This port output is from HDMI input port audio. SW2 button Reserved button. Copy EDID from the Receiver HDMI display send SW1 button to the Transmitter HDMI source. 6. Connection Diagram 4×RX DVD player Matrix Switching...
- Page 8 7. Notes Recommend switch model: The switch used may need some configuration to use this product with it. MAN334 REV 5/20/19...
