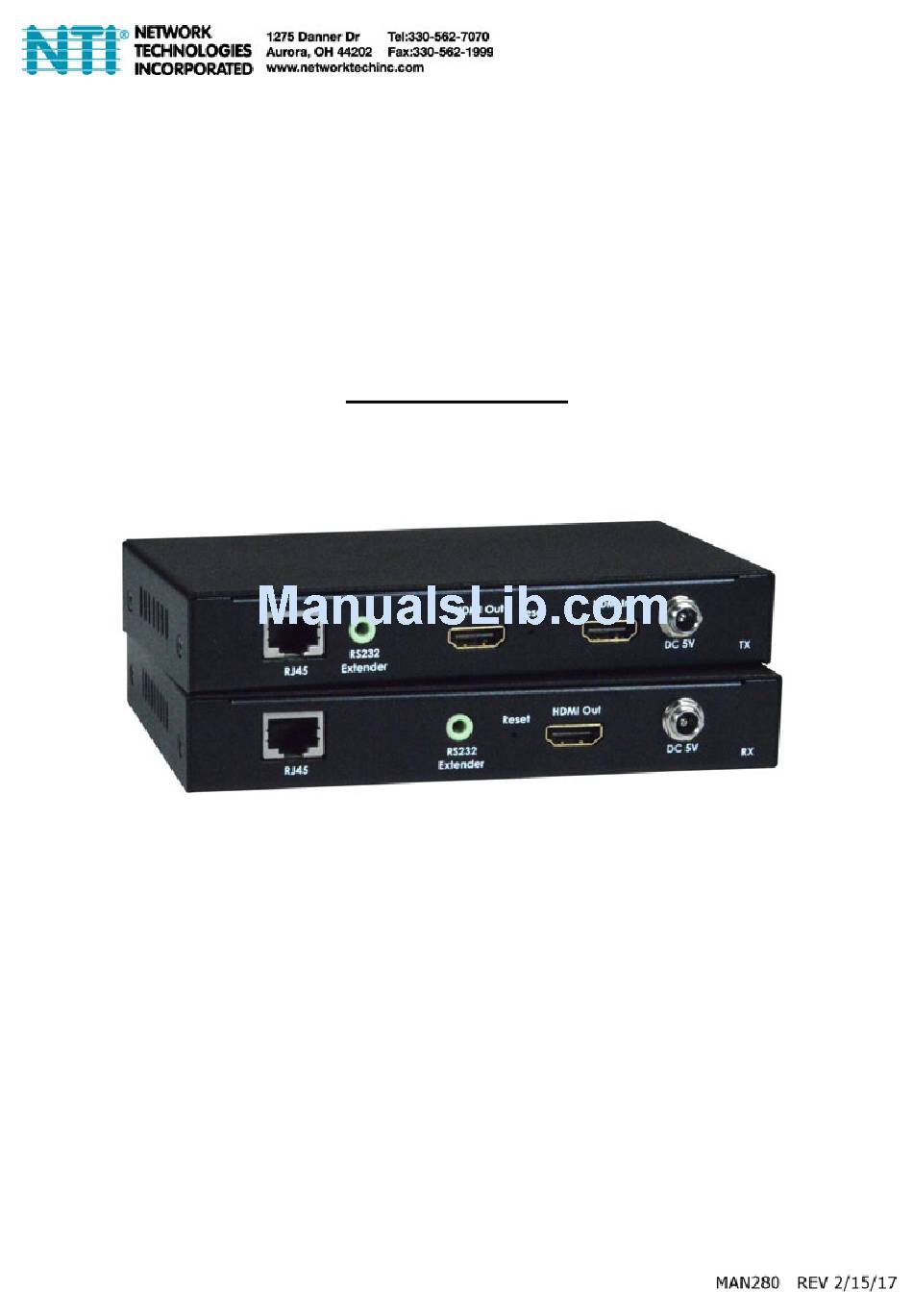

- Page 1 ST-IPHD-IR-LC HDMI over Gigabit IP Extender with IR and RS232 User Manual...
-
Page 2: Table Of Contents
CONTENTS 1. Introduction 2. How It Connects 3. Features 4. Transmitter Unit Panel Layout 5. Transmitter Unit Panel Description 6. Receiver Unit Panel Layout 7. Receiver Unit Panel Description 8. Remote Control Panel Layout and Description 9. Connecting and Operating the Extender 10. -
Page 3: Introduction
INTRODUCTION The HDMI over IP Extender with LED extends HDMI signal over just one 100 Ohm Cat.5e/Cat.6 cable -- up to 100 meters away. The extender supports Full HD 1080p resolution. DVI-D Computer video can also be transmitted with a DVI-to-HDMI cable or adaptor (Note: Audio is not included in a DVI-D signal). -
Page 4: How It Connects
(remote control supplied). HDMI Source Devices can also be controlled remotely using the built in IR repeater in the HDMI over IP Extender with LED System at Receiver side. ： Note ST-IPHD-IR-LC is HDCP 2.0 compliant. -
Page 5: Features
FEATURES HDMI signal extension up to 100 meters Supports HDTV resolution up to 1080p@60Hz Supports PCM 2 Ch audio Compliant with HDCP 2.0 standards Audio and video are transmitted digitally over the 100 Ohm Cat.6 cable for lower signal loss ... -
Page 6: Transmitter Unit Panel Layout
TRANSMITTER UNIT PANEL LAYOUT Front Panel Power LED Dip Switch Link LED Back Panel Reset Button RJ45 Port HDMI Output Port Power Input port RS232 Extender Port HDMI Input Port Side Panel... -
Page 7: Transmitter Unit Panel Description
TRANSMITTER UNIT PANEL DESCRIPTION 1. Power LED This LED indicator will activate once the included 5V DC power adapter has been properly connected between the Transmitter unit and a power socket. Note: the LED will blink during the initial power up time during which it is loading the device firmware. - Page 8 away. The output from this port will be the same with the outpour from receiver side. 8. RS232 Extender Port Connect a serial communications port to this 3.5 mm connector for bidirectional RS-232 communication. Port Setup Parameters: Baud Rate : 2400. Data: 8bit.
-
Page 9: Receiver Unit Panel Layout
RECEIVER UNIT PANEL LAYOUT Front Panel Power LED IR Extender Port LED Display Link LED Back Panel RJ45 Port Reset Button Power Input Port RS232 Extender Port HDMI Output Port... -
Page 10: Receiver Unit Panel Description
RECEIVER UNIT PANEL DESCRIPTION 1. Power LED This LED indicator will activate once the included 5V DC power adapter has been properly connected between the Transmitter unit and a power socket. Note: the LED will blink during the initial power up time during which it is loading the device firmware. - Page 11 8. RS232 Extender Port Connect a serial communications port to this 3.5 mm connector for bidirectional RS-232 communication. Port Setup Parameters: Baud Rate : 2400. Data: 8bit. Parity: none. Stop:1bit. Flow Control: none. 9. Reset Occasionally like many network devices (routers, modems etc) it may be necessary to reset the Receiver.
-
Page 12: Remote Control
REMOTE CONTROL PANEL LAYOUT & DISCRIPTION Press figure keys to choose source channel. Press to switch source channel numerically upward Front Panel 1. Figure Keys : 0-9 The figure keys allows user to key in the source channel and shows channel number on LED display of receiver. - Page 13 CONNECTING AND OPERATING How to Connect HDMI Over IP Extender with LED One Source to One Display 1. Connect one HDMI Cable between the HDMI output port of source device and the HDMI input port of Transmitter unit (5 Meters Max) 2.
- Page 14 CONNECTING AND OPERATING How to Connect HDMI Over IP Extender with LED One Source to Many Displays 1. Connect one HDMI Cable between the HDMI output port of source device and the HDMI input port of Transmitter unit (5 Meters Max) 2.
- Page 15 Configure Point-to-Many Connections using Un-Managed Network Switch Local HDTV Blu-Ray Player ST-IPHD-IR-L-LC = HDMI-xx-MM (Local Unit) = CAT5e/6 Cable Adapter Unmanaged Network Switch ST-IPHD-IR-R-LC ST-IPHD-IR-R-LC ST-IPHD-IR-R-LC (Remote Unit) (Remote Unit) (Remote Unit) Adapter Adapter Adapter Remote HDTV with HDMI Input Remote HDTV with Remote HDTV with HDMI Input...
- Page 16 CONNECTING AND OPERATING How to Connect HDMI Over IP Extender with LED Many Sources to Many Displays 1. Connect one HDMI Cable between the HDMI output port of source device and the HDMI input port of Transmitter unit (5 Meters Max) 2.
- Page 17 to reduce the output resolution of your source devices to compensate for lower than required bandwidth availability within the network. 3. Users can connect at most 64 Transmitters to the system. 4. Please note that the Ethernet switch should be a Full Duplex Gigabit Ethernet switch that supports IGMP functions.
-
Page 18: Specification
SPECIFICATION PERFORMANCE HDTV Resolutions 480p, 720p, 1080i, 1080p Color Depth 8 Bit Audio Format PCM 2 Ch audio IR Range 30 kHz to 50 kHz HDMI Input: 5 meters Max, Maximum Cable Range HDMI Outputs: 5 meters Max Video Bandwidth 150MHz via LAN Input Video Signal 3.3 Volts P-P... - Page 19 Limited Warranty 24 months ENVIRONMENTAL Operating Temperature +0 to +40° C (+32° to 104° F) Operating Humidity 10% to 85% (Non-condensing) Storage Temperature -20° to +60° (+20° to +140° F) Storage Humidity 10% to 85% (Non-condensing) POWER REQUIREMENTS External Power Supply 5VDC@2.5A SAFETY Certificate...
- Page 20 Appendix 1. There are 64 combinations for the DIP switch, please refer to the following table which defines 64 source channels for the Transmitter. Combination Combination Combination Combination 000000 000010 000001 000011 100000 100010 100001 100011 010000 010010 010001 010011 110000 110010 110001...
