Viewing Saved Data in Graph Form

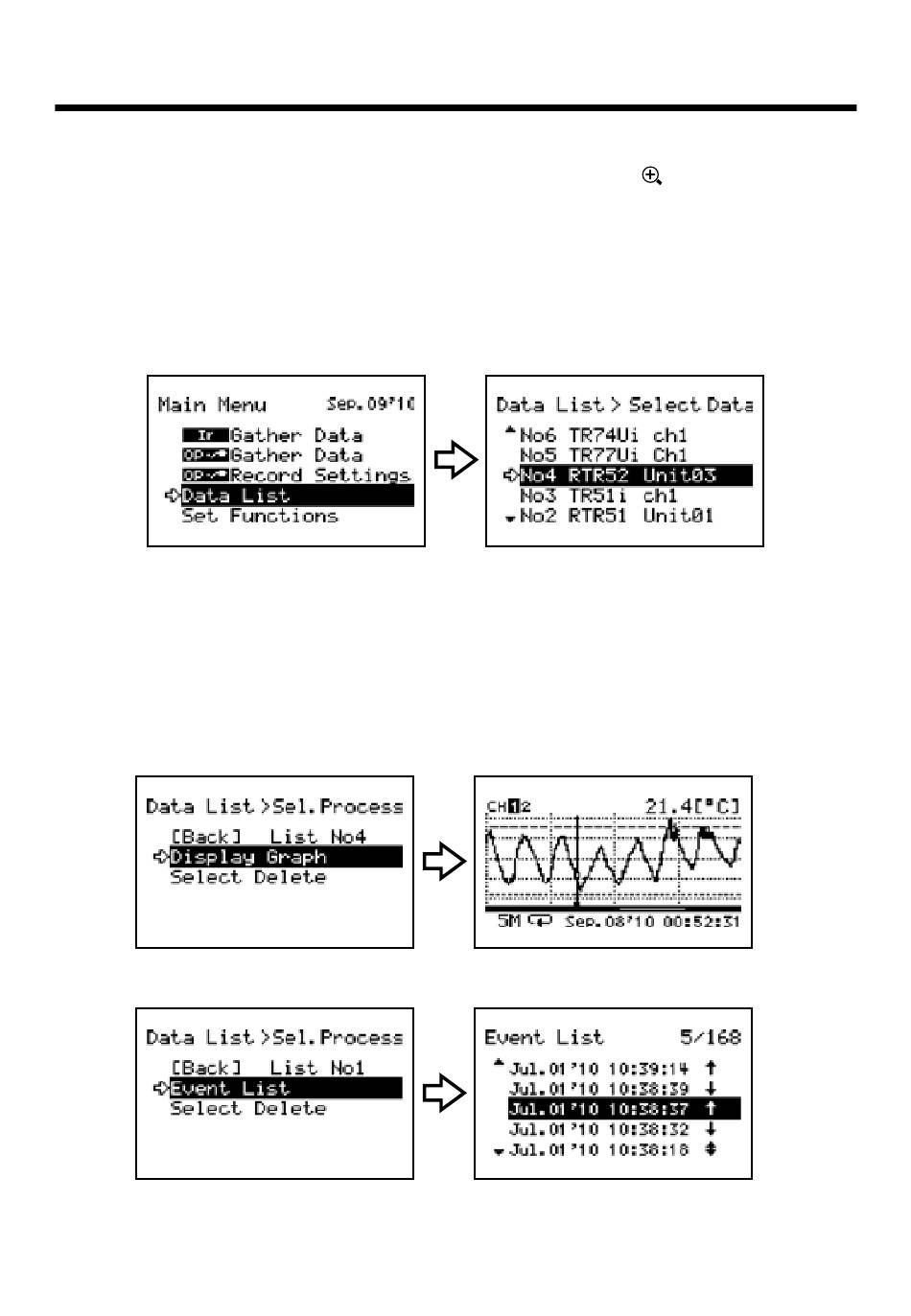

1.
Select [Data List] in the Main Menu, or press the < List> button on
the TR-57DCi.
2.
From the Select Data display, choose the data you wish to view in a
graph by moving the Operation Dial up and down, and press dial to
confirm.
Main Menu
The selected data will be highlighted. See the next page for the details
about the Data List.
3.
Click on [Display Graph] to view the Graph for the selected data.
To view event data, after opening [Data List] click on [Event List].
For Temperature, Humidity, Barometric Pressure, Illuminance, UV,
Voltage, Pulse, and CO2 Data
For Event Data
36
Select data
