Downloading Recorded Data

Use this to download recorded data from Data Loggers to the
TR-57DCi.

Downloading via Optical and Cable Communication

1.
Connect the Data Logger to the TR-57DCi. (See p.23)
2.

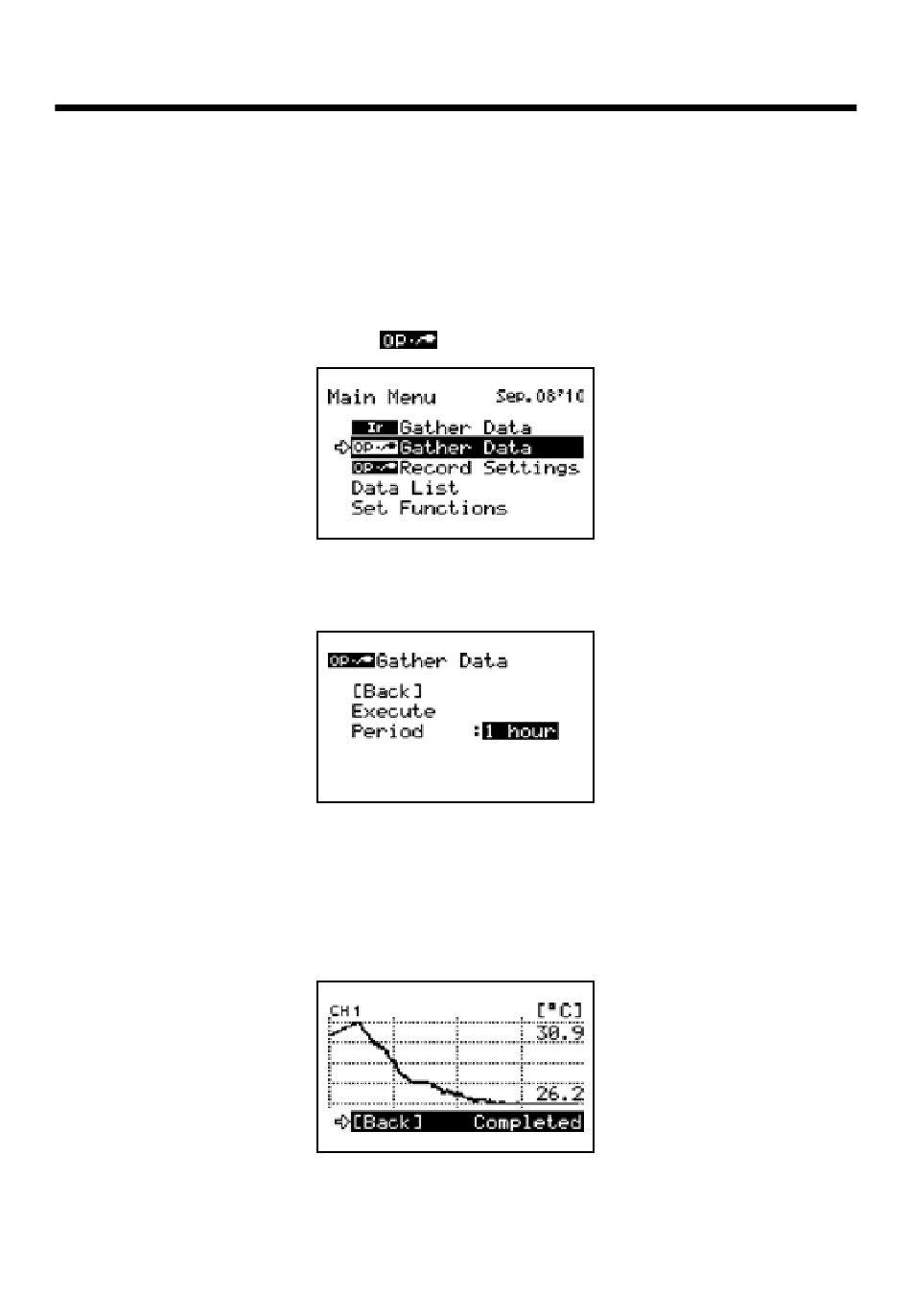

In the Main Menu, open [
When using data loggers for which the period of data to be downloaded is
user-selectable, the settings window will appear as follows.
After the selection is made, adjust the arrow to [Execute] and press the
Operation Dial to start downloading recorded data.
* If you wish to stop downloading, press the dial again.
3.
A graph will appear showing the downloaded data.
28
Gather Data] to start downloading.
