Communicating with Data Loggers

There are three ways to communicate between a TR-57DCi and a
Data Logger: Optical Communication, Cable Communication, and
Infrared Communication. The communication method you select will
depend upon the type of Data Logger and the installation
environment.

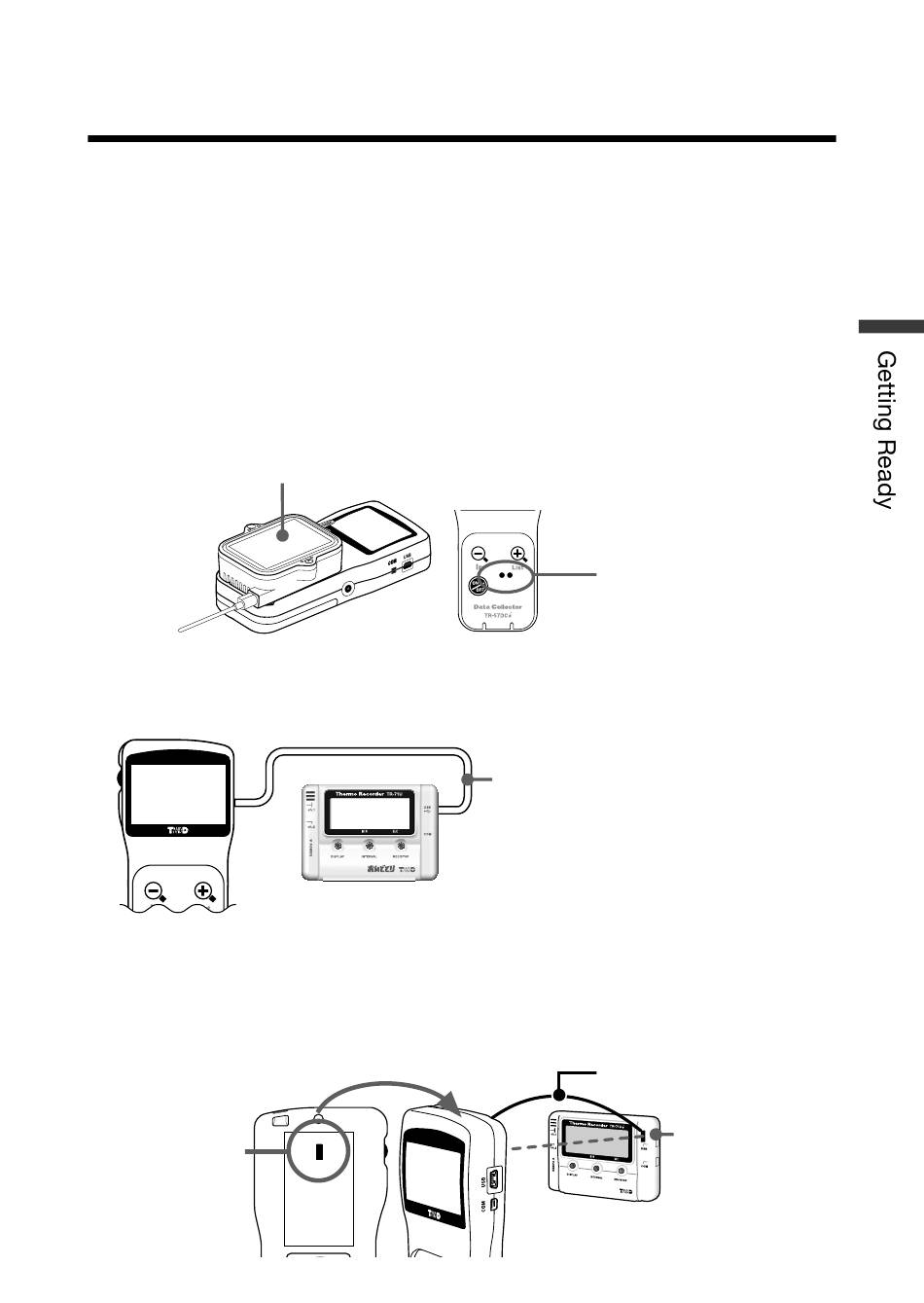

Optical Communication

For TR-5 / 5S / 5i Series and RTR-5 Series Data Loggers
Place the target logger face down on TR-57DCi.
R-51i / 52i / 55i, TR-51S / 52S, TR-51A / 51 / 52
RTR-51 / 51A / 52 / 52A / 52Pt / 53 / 53A, RVR-52 / 52A

Cable Communication

For TR-7 Series, and VR-71 Data Loggers

Infrared Communication (limited to the downloading of data)

For TR-7Ui / 5i Series Data Loggers
Place the infrared port of the TR-57DCi and the target Data Logger face-to-face.
Infrared Port of
TR-57DCi
TR-57DCi Optical
Communication
Port
Connect using the supplied
communication cable TR-6C10
TR-71Ui / 72Ui / 74Ui / 76Ui / 77Ui,
TR-71U/72U/73U
Connect using the optional communi-
cation cable TR-4C10
TR-71S/72S, VR-71
TR-7Ui:About 5 to 20 cm
TR-5i:About 10 to 20 cm
TR-71Ui / 72Ui / 74Ui / 76Ui / 77Ui
TR-51i / 52i / 55i
Infrared Port of
Data Logger
