Graph Display

In this display you can view in graph form the recorded data col-
lected by the TR-57DCi.
A graph is displayed for each channel of data and can be scrolled
left and right with the Operation Dial or by the buttons on the
TR-57DCi.

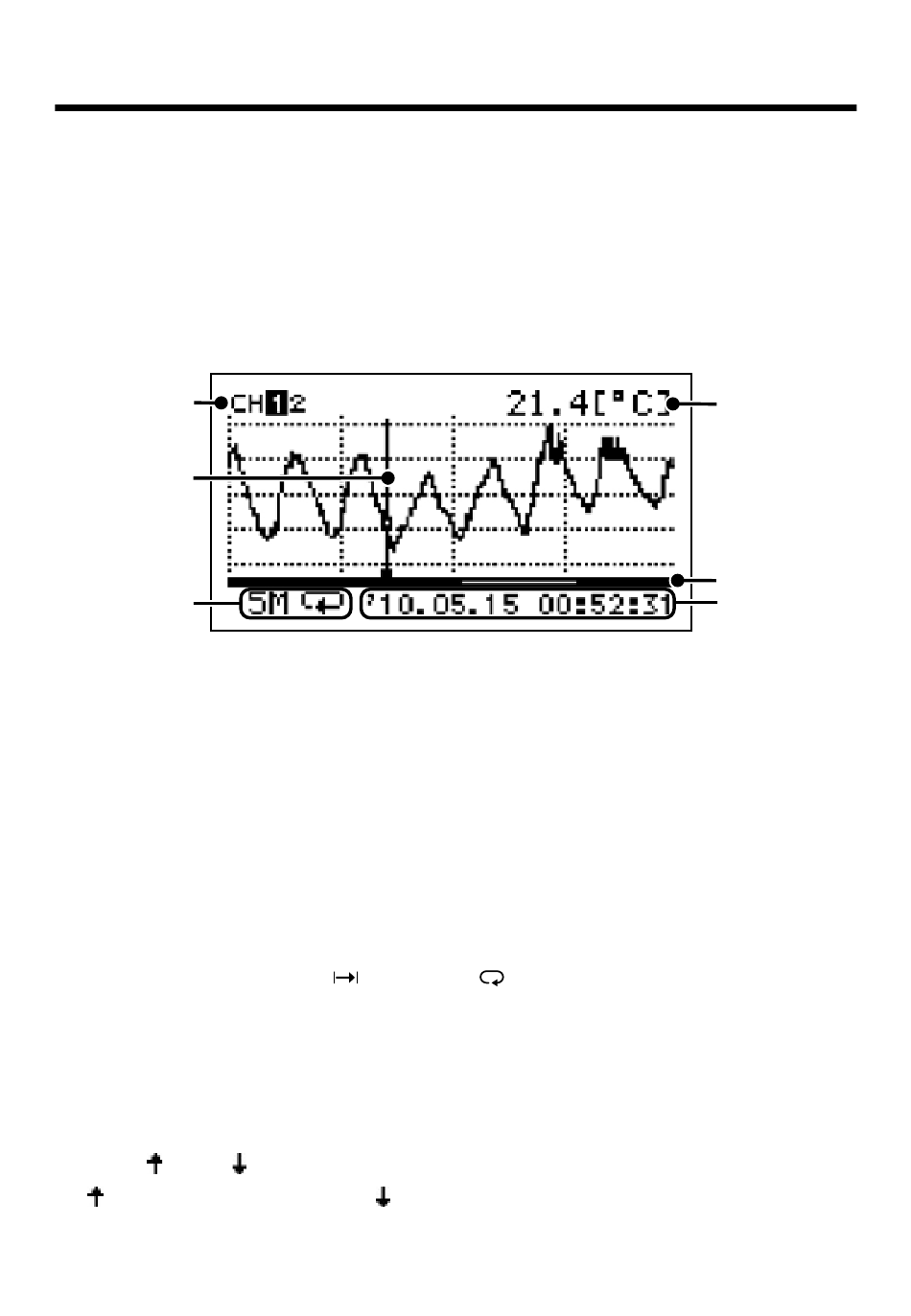

Reading a Graph

1.
2.
3.
1. Displayed Channel
If there are multiple channels of recorded data, you can change the channel on
display by holding in the Operation Dial (for about one second).
2. Cursor
By moving the Operation Dial, you can scroll the cursor left and right to view
the recording date and time and measurement for that point where the cursor is
positioned.
3. Recording Interval and Mode
The "Recording Interval" and "Recording Mode" for the displayed data are shown
here.
S: Seconds, M: Minutes,
4. Measurement at Cursor Position
The corresponding measurement value is displayed for the date and time where
the cursor is positioned.
[°C/°F]: Temperature, [%RH]: Humidity, [hPa]: Barometric Pressure,
[lx]: Illuminance, [mW/cm
[Pulse ] [Pulse ]: Pulse, [ppm]: CO2 Concentration
: Pulse Rising (OFF -> ON),
32
: One Time,
2
]: UV Light, [V]: Voltage, [mA]: 4-20mA,
: Pulse Falling (ON -> OFF)
: Endless
4.
5.
6.
