- Page 1 Main Unit ® TR-57DCi User’s Manual Thank you for purchasing our product. This manual provides a brief explana- tion of how to set up and get started with the TR-57DCi. © Copyright T&D Corporation. All rights reserved. 2022.01 16504630013 (6th Edition)
-
Page 2: Safety Precautions And Instructions
The following items should be strictly obeyed for the safe usage of before using. T&D Corporation accepts no responsibility for any malfunction the TR-57DCi Unit, (hereinafter referred to as this/the “Unit”) , and of and/or trouble with this product or with your computer that is caused by... - Page 3 Do not use this Unit in wet or humid places, such as a Do not use any other batteries than those that are specified bathroom. Doing so may cause fire, electrocution, and/or in this Manual. It may cause fire or malfunction. malfunction. Forbidden Forbidden Store the TR-57DCi Unit, batteries and communication Do not use AC adaptors other than those specified for use cables out of the reach of children. Touching them may with the Unit. Doing so may cause fire or malfunction. cause injury and swallowing batteries is extremely Strictly Follow Forbidden dangerous.
-
Page 4: Before Using This Product
Before Using this Product Important Notes about the Installation Procedure Harmful gases or chemicals may cause corrosion and/or (for using USB communication) other danger to the Unit. Also, by coming into contact with hazardous substances, harm may occur to the people Forbidden In order to use a USB connection to communicate between the Unit handling the Unit. -
Page 5: Table Of Contents
Downloading via Optical and Cable Communication -----------------28 Before Using this Product --------------------------------------------- 5 Downloading via Infrared Communication -------------------------------29 Introduction Screen during Downloading ---------------------------------------------------30 What is “Data Collector TR-57DCi”? ----------------------------- 10 If Downloading Recorded Data Fails ----------------------------------------31 Overview ------------------------------------------------------------------------------10 Graph Display ------------------------------------------------------------- 32 Basic Functions ---------------------------------------------------------------------10... -
Page 6: Introduction
Introduction Explanation of Product Outline for TR-57DCi - What is “Data Collector TR-57DCi”? - Package Contents - Appearance Diagram and Part Names... -

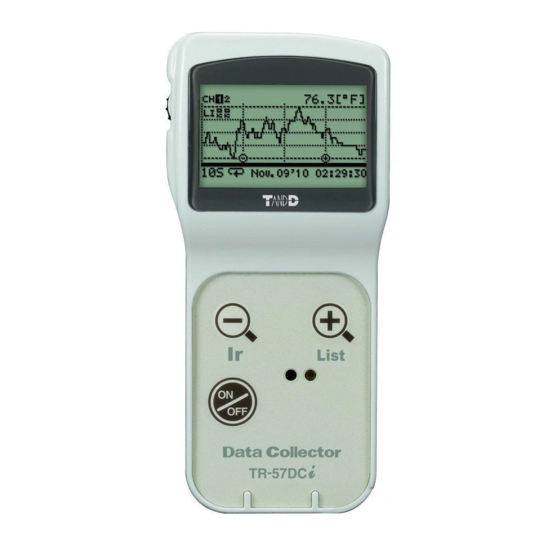

Page 7: What Is "Data Collector Tr-57Dci
Storage Capacity of 256,000 readings Backlight Function One TR-57DCi has the capacity to store 16 units of TR-71U at full storage The LCD Backlight allows the display to be easily read even in the dark. You capacity (8,000 readings x 2ch).When downloading units at non-full storage can make changes in the Backlight ON/OFF by going to the [Main] Menu capacity, it can store and manage up to 250 downloading sessions. -
Page 8: Package Contents
/ highest value. - Press to view the Data List Display. AAA Alkaline Battery x 2 TR-57DCi User’s Manual / Warranty (this document) x 1 - Press while viewing the Data List to view details for the Software “T&D Recorder for data on display. -
Page 9: Using The Operation Dial
Using the Operation Dial LCD Display and Operation Main Menu Window Move the dial up Menus for Infrared Communication Press Menus for Optical or Cable Communication Move the dial down When battery life goes low, a battery life warning mark will appear to inform you it is time to replace the battery. -
Page 10: Getting Ready
This section explains what needs to be done to get a Pressure, Illuminance, UV Light, Voltage, and Pulse Data that have been downloaded TR-57DCi ready for use. to a TR-57DCi can be displayed in graph form. See p.32 for details about the display. - Installing the Batteries... -
Page 11: Installing The Batteries
- Make sure not to mistake + / -. If the clock settings have not yet been made when the power is - The TR-57DCi cannot recharge batteries. turned on, the following message will appear. By pressing the Operation Dial while the message is displayed, the clock settings About Battery Life window will automatically open. -
Page 12: Making Clock Settings Manually
(3) Change the value by moving the dial up and down. - When connecting a TR-57DCi to a PC, connect only one unit at a time. If you connect multiple TR-57DCi Units at the same time, they may not be recognized properly. -
Page 13: Serial Communication
TR-71S/72S, VR-71 Infrared Communication (limited to the downloading of data) For TR-7Ui / 5i Series Data Loggers Place the infrared port of the TR-57DCi and the target Data Logger face-to-face. TR-7Ui:About 5 to 20 cm TR-5i:About 10 to 20 cm... -
Page 14: Available Operations Via Data Logger Communication
This section explains the basic operations and func- Interval”, and “Recording Start Date and Time (Programmed Start)”. tions of the TR-57DCi. [Read Settings] The TR-57DCi can read and display all settings for the connected Data - Recording Start Logger. - Downloading Recorded Data [Download Recorded Data] The TR-57DCi can collect recorded data from the Data Logger. -
Page 15: Recording Start
After having completed the recording settings, make settings for recording The following settings and changes can be made from the TR-57DCi start date and time. First, make sure that the clock settings in the TR-57DCi Unit via Optical and Cable Communication. -
Page 16: Downloading Recorded Data
* If you wish to stop downloading, press the dial again. After adjusting the arrow to [Execute] and pressing the Operation A graph will appear showing the downloaded data. Dial, place the infrared port of TR-57DCi and data logger face-to- face. (See p.23) -
Page 17: Screen During Downloading
If there is not enough memory remaining, the message [Memory Full] will appear and downloading will stop. Please save recorded data from the TR-57DCi to your PC and delete unnecessary data from the TR-57DCi to make space for downloading new data from the Data Logger. -
Page 18: Graph Display
From the entire range of recorded data this line shows the range of data currently on display. You can use the< List> button on the TR-57DCi to A graph is displayed for each channel of data and can be zoom in and the < Ir> button to zoom out on data. -
Page 19: Event List Display
Event List Display When using TR-57DCi to collect event data from RVR-52/52A, all Events within an input voltage range of 0 to 30V are measured for every 1 second and the time and date are recorded if any change, data can be viewed in the event list. -
Page 20: Viewing Saved Data In Graph Form
Viewing Saved Data in Graph Form Reading the Data List Select [Data List] in the Main Menu, or press the < List> button on the TR-57DCi. The notation may differ slightly depending on the Data Logger being used. From the Select Data display, choose the data you wish to view in a graph by moving the Operation Dial up and down, and press dial to confirm. -
Page 21: Reading Data Details
By clicking on the < List> button in the Data List Display, the details of that data can be viewed. This section contains explanations about other opera- tional settings for the TR-57DCi, as well as, how to delete recorded data. Device Name... -
Page 22: Operational Settings
By changing the Unit of Temperature, the Recorded Data display in In the Main Menu, open [Set Functions] and [Set Contrast]. the TR-57DCi and the LCD display on the target Remote Unit(s) for which recording was started from the TR-57DCi will be also be changed to reflect the new setting. -
Page 23: Making Clock Settings
- Please note that depending on your Windows OS, the time zone may be displayed in UTC format instead of GMT. Using the TR-57DCi in Areas that Observe Daylight Savings Time When daylight savings time begins, move the clock settings in the Unit one hour ahead and add one hour to the time zone. -
Page 24: Deleting Data
Deleting Data Deleting Selected Data Deleting All Data In the Main Menu, open [Data List]. Select the data you wish to In the Main Menu, open [Set Functions] and [Clear Memory]. delete and press the Operation Dial. Main Menu Main Menu Select data A confirmation screen will appear. Select [Execute] to delete the Move the arrow to [Select Delete] and press the Operation Dial. -
Page 25: Others
Others - Menu List - Specifications - Optional Accessories... -
Page 26: Menu List
Menu List Data List Gather Data Back Back Select Data Back Execute Upon completion of the download, a with Operation Display Data in (Press Operation Dial to display Graph) graph will appear. Dial Graph Back Select a Device TR-7i Continue TR-5i Specify Period of Data to be... -
Page 27: Specifications
Specifications Optional Accessories Serial Communication Cable Compatible Devices TR-7Ui Series: 74Ui / 76Ui / 73U (including S Type) TR-5i Series: TR-51i / 52i / 55i-TC / 55i-Pt / 55i-V / 55i-mA / 55i-P Discontinued: VR-71, TR-71Ui/72Ui/77Ui, TR-71S/72S, TR-71U/72U, [unit: mm] TR-51S/52S, TR-51A/52, RTR-51/51A/52/52A/52Pt/53/53A, RVR-52A TR-07C 1500... - Page 28 We have opened an English Website for your convenience. Here you can find information about our company, news, products, upcoming events, software and user’s manual downloads, as well as, other support. Please stop by and see what we have to offer. Data Collector TR-57DCi User's Manual © Copyright T&D Corporation. All rights reserved. This is printed on recycled paper.
