Miele PG 8056 Operating Instructions Manual

Commercial dishwasher
Hide thumbs

Advertisement

Quick Links

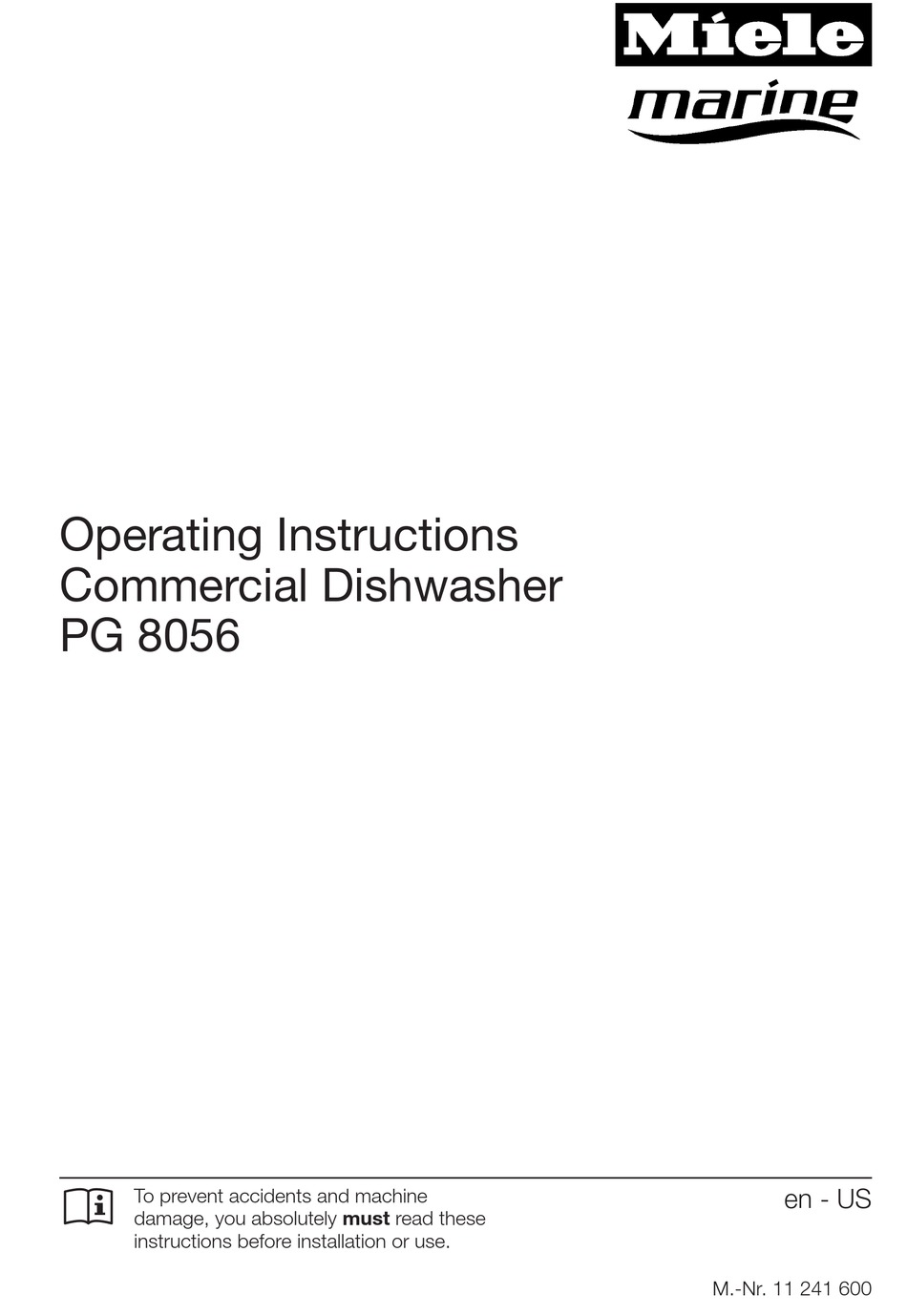

Operating Instructions
Commercial Dishwasher
PG 8056
To prevent accidents and machine
damage, you absolutely must read these
instructions before installation or use.
en - US
M.-Nr. 11 241 600

Advertisement

loading

  Summary of Contents for Miele PG 8056

  • Page 1 Operating Instructions Commercial Dishwasher PG 8056 To prevent accidents and machine en - US  damage, you absolutely must read these instructions before installation or use. M.-Nr. 11 241 600...
  • Page 3: Table Of Contents

    Contents Guide to the manual ...................... 6 Proper use.......................... 7 Important safety instructions ..................... 8 Symbols attached to the commercial dishwasher .............. 12 Disposal of the commercial dishwasher ................12 Caring for the environment .................... 13 Product description...................... 14 Machine overview........................ 14 Control panel ........................15 User profiles........................ 16 User groups.........................
  • Page 4 Contents Program end........................53 Turning off the dishwasher ....................53 Unloading the dishwasher....................53 Interrupting a program......................54 Canceling a program ......................55 Additional functions ...................... 56 Delay Start........................... 56 Drying assistance ........................ 57 Program chart........................ 58 Settings ........................... 60 Menu structure ........................61 Delay Start...........................
  • Page 5 Contents Software version........................92 Cleaning and care ...................... 93 Maintenance........................93 Cleaning the control panel ....................94 Cleaning the front of the dishwasher .................. 94 Cleaning the wash cabinet ....................94 Cleaning the door and the door seal................... 95 Cleaning the filters in the wash cabinet ................95 Cleaning the spray arms......................
  • Page 6: Guide To The Manual

    Guide to the manual Warnings  Warnings important for safety are highlighted like this. Warnings alert you to potential injury and damage. Read the warnings carefully and follow the instructions and directions. Notes Notes contain information that is particularly important to follow. They are highlighted by a thickly framed box.
  • Page 7: Proper Use

    This machine is designed exclusively for use as a “dishwasher” for cleaning wash items as described in these instructions. Any other use, conversions, and modifications are not permitted and could be dangerous. Miele cannot be held liable for damage resulting from incorrect or improper use or operation. ...
  • Page 8: Important Safety Instructions

    This could be dangerous.  In the event of a damaged or leaking dishwasher, switch off at the power supply immediately and call Miele Technical Service, a Miele dealer, or a suitably qualified service technician.  Faulty components may only be replaced by genuine Miele original parts. Only when these parts are fitted can Miele guarantee the safety standards of the appliance.
  • Page 9 The dishwasher must not be used if the wire is damaged. A damaged wire may only be replaced by a suitable wire of the same type. For safety reasons, such replacement may only be carried out by Miele Technical Service or a qualified service technician. ...
  • Page 10 Seek medical attention immediately if detergent has been swallowed or inhaled.  Miele cannot be held liable for any effect chemical detergents may have on the material of the items being cleaned. Observe the detergent manufacturer's instructions with regard to storage conditions, use, and dosage.
  • Page 11 Accessories  Only use genuine Miele original spare parts and accessories with this dishwasher. Miele will provide you with the article designations of the accessories.  Only use Miele baskets and inserts with this dishwasher. Using baskets and inserts made by other manufacturers, or making modifications to Miele accessories can cause unsatisfactory cleaning results, for which Miele cannot be held liable.
  • Page 12: Symbols Attached To The Commercial Dishwasher

    Remove or disable the door lock prior to disposal of the dishwasher, so that children cannot become trapped inside (see “Caring for the environment”). Miele cannot be held liable for damage caused by failure to comply with these safety instructions and warnings.
  • Page 13: Caring For The Environment

    Consult with local authorities, dealers or Miele in order to dispose of and recycle electrical and electronic appliances. Miele assumes no responsibility for deleting any personal data left on the appliance being disposed.
  • Page 14: Product Description

    Product description Machine overview Door lock Rinse aid container Upper spray arm (not visible) Door lock barrel Upper basket runner Container for reactivation salt Connection for upper basket spray arm Dispenser for powder detergent Lower spray arm Filter combination Lower basket runner Back: Connection for dispenser modules Data plate...
  • Page 15: Control Panel

    For selecting additional programs Open the door Display OK button (confirmation) User interface For selecting options or confirming entries in the user interface  and  button (arrow buttons)  service interface For navigating in the user interface Testing and transmission point for Miele Technical Service...
  • Page 16: User Profiles

    User profiles User groups Users can be divided into two groups: – Daily operators – Experienced operators Access to “Additional settings” can be blocked to general, daily operators by using a code (see “Additional settings, Code”). Daily operators Operators must be instructed in operating and loading the Commercial Dishwasher and trained regularly to guarantee safe daily use.
  • Page 17: Operation Tips

    Operation tips Display functions The display is not a touch screen. The following functions can be selected or set with the display: – The program – The delay start time – The settings The following appears in the display while a program is running: –...
  • Page 18: Menus

    Operation tips Menus The Commercial Dishwasher's user interface is divided into different menus. These menus are displayed in a 3-line display on the control panel. Example: Language  deutsch english (GB) The name of the menu and a maximum of two menu options are shown.
  • Page 19 Operation tips System messages The  symbol denotes system messages. These give information about current processes and the status of the Commercial Dishwasher. System messages are displayed individually at the end of the program. If there are a number of system messages, subsequent messages can be displayed by pressing the OK button.
  • Page 20: Symbols In The Display

    Operation tips Symbols in the display Navigation arrows If a menu contains more than two options, two navigation arrows are  shown beside the options. The arrow buttons  and  can be used to scroll through the options. Dotted line ------- If a menu contains more than two options, the end of the option list is marked by a dotted line.
  • Page 21: Initial Commissioning

    Initial commissioning During commissioning, the following settings must be carried out. You will be asked to program settings one after the other automatically, and currently selected values will have a check  beside them. The commissioning process requires a set period of time which cannot be interrupted.
  • Page 22 Initial commissioning Setting the The display will then change to the screen for setting the temperature temperature unit unit. Temperature unit °C °F Use the  and  arrow buttons to select the desired temperature  unit and confirm your choice with the OK button. Setting the The display will then change to the screen for setting the date format.
  • Page 23 Initial commissioning Setting The display will change to the screen for setting the time of day. the time Time of day : 00 Use the arrow buttons  (higher) and  (lower) to set the hours and  minutes, and confirm each entry with the OK button. If you have selected 12 h for the clock format, “am”...
  • Page 24 This setting can be disabled if it is not possible to connect the dishwasher to all available water connections. If individual water connections are disabled, they can only be enabled again by Miele Service. Plumbing connections Accept Cold water Use the ...
  • Page 25: Opening And Closing The Door

    Opening and closing the door Comfort door lock The Commercial Dishwasher is equipped with a comfort door lock. Opening the door  The door can only be opened if the Commercial Dishwasher is connected to the electrical supply and is switched on (the LED in the  button is lit up).
  • Page 26: Opening The Door Using The Emergency Release

    Opening and closing the door Opening the door using the emergency release  The emergency release should only be operated when it is no longer possible to open the door in the usual way.  If the emergency release is operated during a program cycle, hot water can escape.
  • Page 27: Filling The Salt Container

    Use only special, coarse-grained reactivation salt or other pure kitchen salt. Suitable products are available from Miele Professional. If the hardness of your water is constantly less than 4 gpg (= 4°dH), no salt is required for the water softener.
  • Page 28: Setting The Water Hardness Level

    Filling the salt container Setting the water hardness level The water softener can be set to between 0 and 73 gpg (0 - 70 °dH German scale). Select the Additional settings menu.  Water hardness Select and confirm your choice with the OK button. ...
  • Page 29 Filling the salt container Settings table gr/gal mmol/l Display gr/gal mmol/l Display CaCO 3 CaCO 3   0     0   0   0   650   6.5   1   20   1   670   6.7   2   40   2   680   6.8   3   50   3   700   7.0   4   70   4   720   7.2   5...
  • Page 30: Salt Refill Reminder

    Filling the salt container Salt refill reminder At the end of a program, fill the salt compartment with salt  whenever the message appears in the display. Acknowledge the message with the OK button.  If no salt is added, the  symbol indicating low salt will appear beside the program name on the right.
  • Page 31 Filling the salt container Filling the container for reactivation salt When filling the salt container, only open the door halfway to  ensure that all the salt gets into the container. Press the button on the lid of the salt container in the direction of ...
  • Page 32 Filling the salt container Do not add more than 4.4 lb (2 kg) of salt. If there is water present in the container, it may be forced out by the added salt. Clean any excess salt from around the container opening and the ...
  • Page 33: Adding Rinse Aid

    Suitable products are available from Miele Professional. Conversion to the external DOS module must be carried out only by Miele Service or by an authorized dealer. In the Glasses program, the final rinse is carried out without rinse aid.
  • Page 34 Adding rinse aid Adding rinse aid Open the door fully.  Unscrew the lid of the rinse aid container.  Add rinse aid only until it is up to the maximum mark on the edge of  the funnel on the container. The rinse aid container holds approx.
  • Page 35: Application Technology

    Application technology Preparing the wash items  Risk of injury during loading and unloading. The baskets may roll out of the dishwasher when at sea. Make sure that the baskets do not roll out of the dishwasher during loading and unloading. Remove coarse food residues from the dishware.
  • Page 36 Application technology Items not suitable – Wooden cutlery and cookware or items with wooden parts: these for dishwashers: may discolor and fade. The glue used in these items is not dishwasher-proof and wooden handles may come loose after being washed in a dishwasher. –...
  • Page 37: Upper Basket

    Application technology Upper basket Use the upper basket for small, lightweight and delicate items such as cups, saucers, glasses, dessert bowls etc. Light, heat resistant plastic items can also be loaded in the upper basket. O 891 upper basket With insert E 810 for e.g. 20 cups, 33 saucers or 17 dessert plates. Cup rack The cup rack can be set at two different widths so that it can also accommodate large cups.
  • Page 38: Adjusting The Upper Basket

    Application technology Adjusting the upper basket In order to obtain more space for taller items in the lower or upper basket, the upper basket can be adjusted between two vertical positions that are approx. 2" (5 cm) apart. Pull the upper basket out. ...
  • Page 39 Application technology Depending on the position of the upper basket, the following plate dimensions can be accommodated: Example with O 891 Upper Basket: Upper basket Upper basket plate Ø Lower basket plate Ø position Max. 5 1/8" (15 cm) 13" (33 cm)* Bottom Max.
  • Page 40: Lower Basket

    Application technology Lower basket Use the lower basket for larger and heavier items such as plates, serving platters, saucepans, bowls, etc. Always place thin, delicate glassware in the lower basket using a suitable insert or basket. U 890 lower basket carrier For plastic trays, various inserts and cutlery baskets. U 890 lower basket with 2 x E 816 inserts and 2 x E 165 cutlery baskets 16 plates with Ø...
  • Page 41 Application technology U 890 lower basket with an E 816 insert rotated 90° With the E 165 cutlery baskets, 16 plates with Ø 13“ (33 cm) and various cutlery items can be loaded. Without the cutlery basket, 19 plates with Ø 13” (33 cm) can be loaded into the rotated E 816 insert.
  • Page 42: Use Of Plastic Trays

    Which basket combination to use will depend on the type, shape, and size of the wash items. For further information on baskets, please contact your Miele dealer or Miele Technical Service. Examples: (lower baskets) U 525 5-Row Wire Basket...
  • Page 43 Application technology U 534–U 537 Plastic Trays with compartments for different glass heights In this example, the plastic tray is connected to the top frame by long extenders. (For assembly in U 876 Lower Basket Carrier only) Assembling a The height of the tray can be altered by fitting a top frame  to the plastic tray base basket ...
  • Page 44: Operation

    Operation Adding detergent Only use detergent suitable for Commercial Dishwashers. Suitable products are available from Miele Professional. Detergent can be dispensed in powder form via the powder detergent dispenser or in liquid form via an external dispenser module (optional – see “Dispenser module”).
  • Page 45 Operation Add the required amount of powder detergent and close the flap.  Dispensing Always follow the recommendations of the detergent manufacturer.  There are markings to assist with dispensing: 20 and 40. They indicate the filling quantity in milliliters when the door is open in the horizontal position.
  • Page 46: Dispenser Module

    Color coding the suction wands can be helpful for correct dispensing. Specific types of soiling may require different combinations of detergents and additives. Miele Technical Service will be able to advise you. Connecting The dispenser module comes with a separate installation manual.
  • Page 47 Operation Setting the For information about setting the dispensing concentration, see dispensing “Additional settings/Additional functions/Dispensing systems”. concentration Refilling or The dispenser module is equipped with a level monitoring indicator changing which shows a message in the display when the level drops below containers the minimum.
  • Page 48 Operation To vent the system and adjust the dosage amount, see “Additional settings, Additional functions”. Checking Monitor the amount of process chemicals used by regularly checking consumption the level in the container in order to detect any dispensing irregularities.
  • Page 49: Leds On The Keypad

    Operation LEDs on the keypad Light-emitting diodes that indicate the status of the dishwasher are integrated in the keypad. Except for the Start/Stop button, which has a green LED during normal operation, all other LEDs light up yellow. In the event of a fault the Start/Stop button flashes red. Button Status ...
  • Page 50: Turning The Machine On

    Operation Turning the machine on Switch on the water supply if it is off.  Press the  button until the button's LED lights up.  Close the door (the LED on the  button will light up).  As soon as the Commercial Dishwasher is ready for operation, the display message changes to show the last selected program, e.g.: Universal...
  • Page 51 Operation Program list Programs that cannot be selected using the shortcut buttons can be selected from the program list. Press the  button.  The following selection menu appears in the display Select program Normal Intensive Select the desired program using the  and  buttons, and confirm ...
  • Page 52: Starting A Program

    Operation Starting a program Press the Start/Stop button (the LED for the Start/Stop button will  light up). Once it has been started, a program can no longer be changed. A running program can either be interrupted (see “Interrupting a program”) or cancelled (see “Canceling a program”).
  • Page 53: Program End

    Operation Program end After a program has ended normally, the Start/Stop button's LED will go out and the  button's LED will flash. The message Program finished will appear in the bottom line of the display. Universal Temperature 55 °C Program finished In addition to this, an audible signal will sound for approx.
  • Page 54: Interrupting A Program

    Operation Interrupting a program  Risk of damage due to water leakage. The door of the Commercial Dishwasher must not be opened during operation. Once the program has started, leave the door closed to ensure that no water drips out. Only select “Cancel program”...
  • Page 55: Canceling A Program

    Operation Canceling a program  Risk of damage due to water leakage. The door of the Commercial Dishwasher must not be opened during operation. Once the program has started, leave the door closed to ensure that no water drips out. Only cancel a program which has already started if strictly necessary, e.g., if you want to change the program.
  • Page 56: Additional Functions

    Additional functions Delay Start You can schedule the start time of a program in advance. The start time can be delayed by 1  minute to 24 hours. The Delay Start function must be enabled in the Settings menu (see “Settings , Delay Start”). If Delay Start is disabled, the function will not appear in the “Additional functions”...
  • Page 57: Drying Assistance

    Additional functions Drying assistance This menu option is deactivated at the factory. The door will not open at the end of the program. This prevents wash items and baskets from falling out of the Commercial Dishwasher when the door is open.
  • Page 58: Program Chart

    Program chart Program Application Powder detergent (if liquid cleaning agent is not dispensed) The following dosages are based on Miele detergents. Please follow manufacturer's instructions. “Quick program” for lightly soiled wash items with fresh, 20–25 g Short easily removed food residues.
  • Page 59 Program chart Program cycle Pre-rinse Pre-rinse Main wash Interim Interim Final rinse (1)/(2) rinse rinse (1)/(2) 131°F (55°C) 140°F (60°C) 1 min 1 min 131F (55°C) 140°F (60°C) 2 min 1 min 140F (60°C) 158°F (70°C) 3 min 10 min 149°F (65°C) 140°F (60°C) 3 min 1 min 140°F (60°C) 131°F (55°C) 2 min...
  • Page 60: Settings

    Settings  Accessing the “Settings ” menu You can access the system settings menu as follows: Turn the dishwasher off.  Press and hold the  button and, at the same time, turn the  dishwasher on using the  button. The display will then show the following options, for example: Menu Settings ...
  • Page 61: Menu Structure

    Settings  Menu structure The factory defaults for the menu structure are shown. Menu Submenu 1 Submenu 2 Delay start  Drying  Language  German  English (US) etc ..PrimingDOS DOS 1 DOS 4 Date Date format DD:MM:YY  MM:DD:YY Time of day Set the time...
  • Page 62: Delay Start

    Settings  Delay Start You can determine whether Delay Start appears in the “Additional functions” menu or not. Selecting will remove Delay Start from the “Additional functions” menu as an operation option. To enable the delayed start of a program, must be selected so that Delay Start can be displayed and selected in the “Additional functions”...
  • Page 63: Setting The Language

    Settings  Setting the language  The language set here will be used in the display. The flag symbol  next to the “Settings” menu and the word “Language” will help guide you if a language that you do not understand has been set. In this case, keep selecting the menu option that is followed by a flag until the “Language”...
  • Page 64: Venting Dos Modules

    Settings  Venting DOS modules This option is only visible when a DOS module is connected. The dispensing system for liquid agents can only dispense reliably if the system has been purged of air. The DOS system must be vented if: –...
  • Page 65: Setting The Date

    Settings  Setting the date Settings  Select the menu.  Date Select and confirm your choice with the OK button.  In the following menu, you can choose between: Date Date format Date format – This menu option offers two different formats for displaying the date.
  • Page 66: Setting The Time Of Day

    Settings  Setting the time of day Settings  Select the menu.  Time of day Select and confirm your entry with the OK button.  In the following menu, you can choose between: Time of day Display – Set the time of day. Display –...
  • Page 67: Display

    Settings  Display If required, the time of day can be displayed once the “Switch off Additional settings Switch off after after duration” has elapsed (see The LED in the  button will start to flash. The dishwasher is ready for use when the time is visible in the display.
  • Page 68: Adjusting The Volume

    Settings  Adjusting the volume The dishwasher has audible tones that sound when buttons on the keypad are pressed, at the end of a program, and when there are system messages. Settings  Select the menu.  Volume Select and confirm your choice with the OK button. ...
  • Page 69: Setting The Volume

    Settings  Setting the The procedure for setting the volume is always the same. The display volume also looks similar, e.g.: Keypad tone Quieter Louder Use the arrow buttons  (louder) and  (softer) to set the volume.  The volume level is shown as a bar. On the lowest setting, the buzzer is turned off.
  • Page 70: Additional Settings

    Additional settings Accessing the “Additional settings” menu To access the “Additional settings” menu: Turn the dishwasher off.  Press and hold the  button and, at the same time, turn the  dishwasher on using the  button. The display will then show the following options, for example: Menu Settings ...
  • Page 71 Additional settings Display – Adjust the contrast and brightness of the display (see “Display”) – Switch off after Enable or disable the automatic switch-off function (see “Switch off after”) Factory default – Reset all parameters to the factory default settings (see “Restoring factory default settings”) Software version –...
  • Page 72: Menu Structure

    Additional settings Menu structure The factory defaults for the menu structure are shown. Menu Submenu 1 Submenu 2 Submenu 3 Code Release Additional settings  Enter code Block Change code Log book Consumption: Water Consumpt.:Cleaning agent Consumpt.: Rinsing Operating hours Wash programs Service interval Temperature unit...
  • Page 73 Additional settings Menu Submenu 1 Submenu 2 Submenu 3 Display view Actual temperature Required temperature  Display Contrast ContrastSet Brightness BrightnessSet Switch off after  Set the time Factory default Reset  Program settings only All settings Software version EB Id: XXXX EGL Id: XXXX EZL Id: XXXX EFU Id: XXXX...
  • Page 74: Code

    Additional settings Code A PIN code can be used to prevent unauthorized access to various functions and system settings on the Commercial Dishwasher. Additional settings Select the menu.  Code Select and press OK to open the relevant menu.  Release –...
  • Page 75 Additional settings Release Block Entering the If in the menu you have selected or if you have set the PIN code Additional settings menu up for access via a PIN code, you have to enter the PIN code. Additional settings Settings within the menu can then only be changed by people with administrative rights.
  • Page 76: Log Book

    Additional settings Log book The dishwasher controls record the consumption levels for water, detergent and rinse aid. They also calculate the number of hours the dishwasher has been in operation, the number of programs that have been run, and the required service intervals. Select the Additional settings menu.
  • Page 77: Temperature Unit

    Additional settings Temperature unit The temperature can be displayed in degrees Celsius or degrees Fahrenheit. Additional settings Select the menu.  Temperature unit Select and confirm your choice with theOK button.  Temperature unit °C °F – °C The temperature is displayed in degrees Celsius °F –...
  • Page 78: Move Program

    Additional settings Move program You can change the order of the programs and therefore also the allocation of the shortcut buttons. You can move the programs you use most frequently to program places 1-3. These are then automatically allocated to the shortcut buttons.
  • Page 79: Additional Functions

    Additional settings Additional functions With these functions, it is possible to adjust individual parameters to adapt program cycles to particular types of soiling and optimize cleaning results. Additional settings Select the menu.  Additional functions Select and open the corresponding menu by ...
  • Page 80: Increased Water Level

    Additional settings Increased water level Increased water Select the option and confirm your choice with  level the OK button. The amount of water used is indicated in liters and can be increased by up to 1.5 l in 0.5-liter increments. The maximum total amount of water for the programs is restricted to 7.4 l.
  • Page 81 Additional settings Dispensing system DOS dispensing Select the option and confirm your choice with  systems the OK button. Dispensing system DOS 2 Rinsing aid DOS1 Select the desired dispensing system and confirm your choice with  the OK button. The following settings are available: DOS1 Active Inactive...
  • Page 82 Additional settings DOS venting  To avoid damage to the dispensing system, make sure before venting that the detergent and rinse aid containers are adequately filled and that the dispensing siphons are screwed securely to the containers. DOS priming Select and confirm your selection with the OK button.
  • Page 83 Additional settings Change name Changing a DOS Select and confirm your entry with the OK button.  name Change name DOS1 _ _ _ _ _ _ _ _ _ _ _ ä b c P OK # The current name is shown on the second line of the display. This can be changed using the options shown in the bottom line.
  • Page 84 Additional settings Temperature / The temperature and holding time for the main wash and final rinse Time phases can be changed in some programs (see “Program chart”). Select Temperature / Time and confirm your choice with the  OK button. Select program Short Universal The following options are available:...
  • Page 85 Additional settings Main wash Final rinse Main wash / Final The procedure for altering settings in is the rinse same. The display also looks similar. Select the Main wash Final rinse option and confirm your choice  with the OK button. Normal Final rinse temperature Holding time...
  • Page 86 Additional settings Holding time Holding time Select and confirm your choice with the OK button.  The holding time is displayed in minutes and can be changed to between 0 and 10 minutes in 1-minute increments. Holding time (0 - 10 Min) Use the arrow buttons ...
  • Page 87: Program Access

    Additional settings Program access Individual programs can be locked so that they cannot be used. In the factory default setting, all programs are unlocked for use. Select the Additional settings menu.  Release program Selection Release program Select and press OK to open the corresponding ...
  • Page 88: Water Hardness

    Additional settings Water hardness Using this menu, you can program the water softener to match the hardness of the water supplied. Detailed information is available under “Filling the salt compartment”. Display view During a program, the actual or set temperature can be shown in the second line of the display.
  • Page 89: Display

    Additional settings Display The Display menu can be used to alter the contrast and brightness of the display. Select the Additional settings menu.  Display Contrast Brightness Display Select and open the corresponding menu by pressing the  OK button. The following settings are available: Contrast –...
  • Page 90: Switch Off After

    Additional settings Switch off after When not in use, the Commercial Dishwasher can be switched off to save energy or be placed in standby mode by selecting an option Settings  Time of day Display from the menu. The clock display will be visible in standby mode. Select the Additional settings menu.
  • Page 91: Factory Default Setting

    Additional settings Factory default setting Factory default setting can be used to reset all changed parameters in the Commercial Dishwasher back to their factory default settings or just values that have been changed for programs. Additional settings Select the menu. ...
  • Page 92: Software Version

    Software version for the control board. EZL Id: XXXX – Software version for the relay board. – EFU Id: XXXX Software version for the frequency converter. Modifications and updates to the software may only be carried out by an authorized Miele service technician.
  • Page 93: Cleaning And Care

    Cleaning and care Maintenance To prolong the service life of the Commercial Dishwasher, it should be serviced at least once a year by Miele Technical Service. Maintenance covers the following: – Electrical safety according to national regulations (e.g., VDE 0701/0702 in Germany) –...
  • Page 94: Cleaning The Control Panel

    To keep the front panel from getting dirty again (fingerprints, etc.), a stainless steel conditioner can be used after cleaning (e.g., Neoblank, available from Miele Service).  Do not use cleaning agents containing ammonium chloride or thinners! These agents can damage the surface material.
  • Page 95: Cleaning The Door And The Door Seal

    Cleaning and care Cleaning the door and the door seal Wipe the door seal and the area beneath the door regularly with a  damp cloth to remove food deposits. Wipe away any spillages of food and beverages from the sides and ...
  • Page 96 Cleaning and care Cleaning the flat Remove the coarse filter.  and micro-fine filters Grasp the micro-fine filter by the upper rim and turn it in the  direction of the arrow to release it. Then lift it out. Remove the flat filter. ...
  • Page 97: Cleaning The Spray Arms

    Cleaning and care Cleaning the spray arms This Commercial Dishwasher has three different spray arms. Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be checked and cleaned regularly. Switch the Commercial Dishwasher off. ...
  • Page 98 Cleaning and care Use a pointed object to push food particles in the jets into the spray  arms. Rinse the spray arms thoroughly under running water.  Reinstall the spray arms and check that they rotate freely. Make sure that the spray arm with the yellow bayonet fitting is fitted in the bottom of the wash cabinet.
  • Page 99: Frequently Asked Questions

    Frequently asked questions With the aid of the following guide, most minor problems can be corrected without contacting Miele. In many cases, this will save you time and money because you won't need to call Miele Technical Service. The following guide should help you to find the reason for a malfunction or fault, and to correct it.
  • Page 100 The flow pressure at the water intake point is too low  (see “Technical data”). Contact Miele Service for advice. Fault 412-414 Water inlet fault. One of these numbers will appear in the display if the flow pressure is too high and the program will be cancelled.
  • Page 101 (XXX stands for a number) After waiting 10 seconds: Turn the dishwasher back on.  Select the desired program.  Press the Start/Stop button.  If the fault message is displayed again, there has been a malfunction. Contact Miele Service. ...
  • Page 102  Close the door and attempt to open it again using the   button. If the door remains jammed: Contact Miele Service.  Obstruction sensor This is not a fault! The door is engaged in the catch while the locking mechanism moves back into its closed position.
  • Page 103: Unusual Behavior Of The Dishwasher

    Frequently asked questions Unusual behavior of the dishwasher Problem Possible cause and solution Program finished This is not a fault. appeared on the display Open and close the door.  and you cannot select or The dishwasher must remain switched on while you do start a program.
  • Page 104: Noises

    Frequently asked questions Noises Problem Possible cause and solution There is a knocking noise A spray arm is hitting the dishware. in the wash cabinet. Interrupt the program, and rearrange the items which are  obstructing the spray arm. There is a rattling noise in Dishware is moving around in the wash cabinet.
  • Page 105: Poor Cleaning Results

    Frequently asked questions Poor cleaning results Problem Possible cause and solution The dishes are not clean. The dishes were not loaded correctly. Please observe the instructions in “Loading the  dishwasher”. The program was not suitable for the requirements. Select a more suitable program (see “Program guide)”. ...
  • Page 106 Frequently asked questions Problem Possible cause and solution White residue is visible on The rinse aid dosage is too low. the dishware. Clouding Increase the quantity dispensed (see “Additional  occurs on glassware and settings, Additional functions, Dispensing system”). cutlery; the deposit can be The salt reservoir is empty.
  • Page 107: Cleaning The Filters In The Water Inlet

    Frequently asked questions Cleaning the filters in the water inlet Filters are incorporated into the water inlet connection on the hose to protect the water inlet valve. If these filters get dirty they must be cleaned as otherwise too little water will flow into the wash cabinet. ...
  • Page 108: Cleaning The Drain Pump And Non-Return Valve

    Frequently asked questions Cleaning the drain pump and non-return valve If the water has not been pumped away at the end of a program, there may be a foreign object in the drain pump or blocking the non- return valve. These are easy to remove. Disconnect the Commercial Dishwasher from the water supply and ...
  • Page 109 Frequently asked questions The drain pump is situated under the non-return valve (arrow). Check the area around the drain pump for foreign objects (watch  out for glass splinters which could cause injury) and remove them before replacing the non-return valve. Carefully replace the non-return valve and secure it with the clamp.
  • Page 110: After Sales Service

    – your Miele dealer, or – Miele Technical Service Contact details for Miele Technical Service can be found at the back of this manual.  When contacting Miele Technical Service, you will need the model number and 8-digit machine number of the Commercial Dishwasher.
  • Page 111: Installation Instructions

    Installation instructions Information is subject to change. Please refer to our website to obtain the most current product specification, technical & warranty information. To prevent accidents and machine damage, read these instructions before installation or use.
  • Page 112: Caring For The Environment

    Consult with local authorities, dealers or Miele in order to dispose of and recycle electrical and electronic appliances. Miele assumes no responsibility for deleting any personal data left on the appliance being disposed.
  • Page 113: Installation

    Installation Installation  In order to reduce the risk of damage from condensation, the furniture in the area around the Commercial Dishwasher should be designed for commercial use. The Commercial Dishwasher must be installed in a secure and level position. Any unevenness in the floor level and height of the machine can be compensated for by adjusting the four feet.
  • Page 114: Installation

    Installation Leveling and To ensure stability, the dishwasher must be secured to the counter securing the once it has been leveled. dishwasher After leveling, securely screw the dishwasher to the continuous  countertop. With the door open, turn the screws into the countertop through the holes in the front trim on the left and right hand sides of the dishwasher.
  • Page 115: Floor Mounting

    Installation Floor mounting The dishwasher must be securely anchored to the floor by the two rear feet to prevent slipping or tipping of the dishwasher. Attach the floor anchors to the floor using the included fastening  materials at the distance of both rear appliance feet. If necessary, adjust the manner of attachment to the onsite floor ...
  • Page 116 30 mA should be installed upstream of the dishwasher. – If necessary, equipotential bonding can be carried out. – The power cord may only be replaced by an original Miele spare part. – For technical data, see the data plate or the accompanying wiring diagram.
  • Page 117: Electrical Connection

    Peak-load negotiation The Commercial Dishwasher is suitable for use in an energy management system. For this purpose, it must be technically adapted and the controls reset by Miele Technical Service. Please contact Miele Technical Service for further information. Peak-load In the event of a peak load cut-out, some components of the...
  • Page 118: Plumbing

    145 psi (1000 kPa) (overpressure). If the water intake pressure does not lie in the 29-145 psi (200-1000 kPa) range, contact Miele Technical Service for advice. – The Commercial Dishwasher is supplied as standard for connection to cold water (blue coded hose) and hot water up to 149°F (65°C) (red coded hose).
  • Page 119 Plumbing  Do NOT shorten or otherwise damage the inlet hoses (see diagram). Also refer to the supplied installation diagram!
  • Page 120: Connection To The Drainage System

    Plumbing Connection to the drainage system – The dishwasher drain contains a built-in non-return valve which prevents dirty water from flowing back into the dishwasher via the drain hose. – Ideally, the dishwasher should be connected to a separate on-site drainage system.
  • Page 121: Technical Details

    Undercounter installation with wooden trim in front of base, Rapid program Sound power in LwA 59 dB (A) Sound pressure in LpA 47 dB (A) Certification marks UL 749 CE mark Machinery Directive 2006/42/EC Manufacturer's address Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany...
  • Page 124 Australia, Asia, Oceania: +61 3 9764 7880 Europe, Africa, Middle East: +49 5241 89 66 877 E-mail: service@miele-marine.com www.miele.com/marine-service Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany Alteration rights reserved / Publication date: 2019-01-21 M.-Nr. 11 241 600 / 00...
