DoorProtect Plus Jeweller User Manual
Updated September 1, 2022

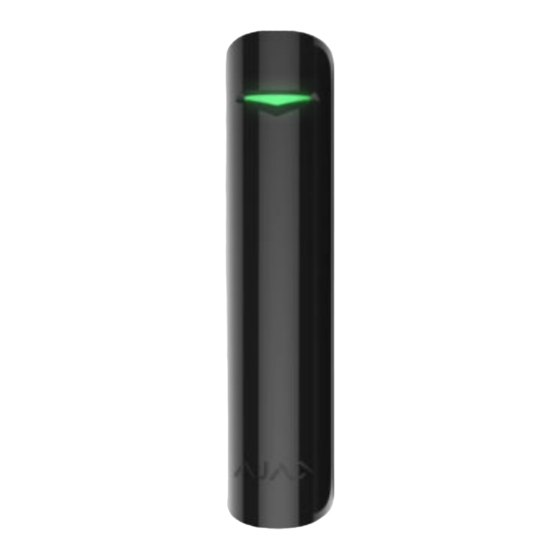

DoorProtect Plus Jeweller is a wireless opening, shock, and tilt detector.
Supports connection of a third-party wired detector with a normally closed (NC)
contact type. For indoor installation.
The detector is not compatible with
ocBridge Plus
and
uartBridge
integration modules.
DoorProtect Plus operates as part of the Ajax security system by connecting to
the
hub
via the secure
Jeweller
radio protocol designed to transmit alarms and
events. The hub communication range is up to 1,200 meters without obstacles.
Buy DoorProtect Plus Jeweller detector
Functional elements

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DoorProtect Plus Jeweller and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX DoorProtect Plus Jeweller

Summary of Contents for AJAX DoorProtect Plus Jeweller

  • Page 1 The detector is not compatible with ocBridge Plus uartBridge integration modules. DoorProtect Plus operates as part of the Ajax security system by connecting to via the secure Jeweller radio protocol designed to transmit alarms and events. The hub communication range is up to 1,200 meters without obstacles.

  • Page 2: Operating Principle

    7. Connector for connecting a third-party wired detector with a normally closed (NC) contact type. 8. QR code with the device ID. Used for communication between Ajax security system devices. 9. Button to turn on/off the device. Tamper button .
  • Page 3 All sensors of the detector work independently. Each sensor of the detector can be enabled or disabled in Ajax apps. If triggered, the armed detector instantly sends an alarm to the hub, which activates the sirens connected to the system, triggers scenarios, and noti es users and the security company.
  • Page 4 Addressability of each Ajax device allows you to send not only events but also the type of the device, the name assigned to it, and the room to the PRO Desktop...

  • Page 5: Adding To The System

    3. Make sure that the hub is on and has Internet access via Ethernet, Wi-Fi, and/or mobile network. You can do this in the Ajax app or by looking at the LED on the hub enclosure. It should light up white or green.
  • Page 6 States The states display information about the device and its operating parameters. States of DoorProtect Plus are available in Ajax apps. To view them: 1. Sign in to the Ajax app. 2. Select the hub if you have several of them or if you are using the PRO app.
  • Page 7 0%, 10%, 20%, 30%, 50%, 75%, 100%. How battery charge is displayed in Battery Charge Ajax apps Battery life calculator The status of the detector’s tamper that responds to detachment of the device from the surface or opening of the body: Open —...
  • Page 8 Learn more Delay time when entering: 5 to 120 seconds. Delay when entering (alarm activation delay) is the time the user has to disarm the security Delay When Entering, sec system after entering the secured area. Learn more Delay time when leaving: 5 to 120 seconds. Delay when leaving (arming delay) is the time the user has to leave the secured area after Delay When Leaving, sec...
  • Page 9 Shock Sensor Displayed when the shock sensor is active. Tilt Sensor Displayed when the tilt sensor is active. When this option is enabled, the detector is always armed. This means that the detector will constantly respond to opening/shock/tilt and raise alarms Always Active regardless of the system arming mode.
  • Page 10 To change the detector settings in the Ajax app: 1. Select the hub if you have several of them or if you are using a PRO app. 2. Go to the Devices tab. 3. Select DoorProtect Plus from the list.
  • Page 11 If active, the detector switches to armed mode when Night Mode is enabled. Arm in Night Mode Learn more Delay time when entering in Night mode: 5 to 120 seconds. Delay when entering (alarm activation delay) is the time the user has to disarm the security Night Mode Delay When Entering, sec system after entering the premises.
  • Page 12 Learn more wired Selecting the type of a third-party detector connected to DoorProtect Plus terminals: External Contact — any third-party detector with NC (normally closed) contact. Roller Shutter — roller shutter motion External Contact Type detector. The option is available for detectors with rmware version 5.53.1.0 and higher.
  • Page 13 High — there is no interference in the protected area; the maximum sensitivity of detection and the alarm detection speed are important. Before selecting the sensitivity level, conduct detection zone test . If the detector doesn’t react to shock in 5 cases out of 5 during the test, the sensitivity should be increased.
  • Page 14 This setting is displayed if the type of external contact is Roller Shutter. security system If this option is enabled: Alert with a siren if shock detected sirens are activated when DoorProtect Plus detects a shock. security system If this option is enabled: Alert with a siren if tilt detected sirens are activated when DoorProtect Plus...
  • Page 15 By timer — the device is automatically disabled when the recovery timer expires. The feature is con gured in the Ajax PRO apps. Learn more Unpair Device Unpairs the detector, disconnects it from the...

  • Page 16: Led Indication

    If an external contact is opened (available if the External contact option is enabled). 6. Select the Chime Sound: 1 to 4 short beeps. Once selected, the Ajax app will play the sound. 7. Click Back to save the settings.

  • Page 17: Functionality Testing

    Functionality testing The Ajax security system has several tests for choosing the right installation place for the devices. DoorProtect Plus tests do not start straight away but begin no later than a single hub–detector ping period (36 seconds by default).
  • Page 18 Consider the recommendations for placement when developing a project for the security system of the facility. The security system must be designed and installed by specialists. The list of authorized Ajax partners is available here When choosing the location of the detector, consider the parameters that affect its operation: Detection zone.

  • Page 19: Signal Strength

    In this case, it is necessary to disable the opening sensor in the detector settings in the Ajax apps. If necessary, the detector can be positioned horizontally. Do not install the detector with the LED indicator facing down, as this may cause it to fall and fail due to damage.

  • Page 20: Detection Zone

    Three bars — excellent signal strength. Two bars — good signal strength. One bar — low signal strength, stable operation is not guaranteed. Crossed out icon — signal is missing. Check the Jeweller Signal Strength at the installation site. If the signal strength is low (a single bar) or zero, we cannot guarantee the stable operation of the security system.
  • Page 21 location and that it meets the requirements of this manual. To install the detector: 1. Remove the SmartBracket mounting panel from the left side of the detector by gently pushing and pulling it down. 2. If you are using a large magnet, remove the SmartBracket mounting panel from it by slightly pushing and pulling it down as shown in the previous step.
  • Page 22 Use double-sided adhesive tape for temporary xing only, as the device may come off the surface at any time and get damaged if dropped. As long as the device is taped, the tamper will not be triggered when the detector is detached from the surface.
  • Page 23 8. Fix the detector and magnet to the mounting panels. Connection of a third-party wired detector You can connect a wired detector with NC (normally closed) contact type to DoorProtect Plus. It can be a motion, opening, or vibration detector. DoorProtect Plus will not power the third-party detector.

  • Page 24: Maintenance

    3. Route the cable of the third-party wired detector into the DoorProtect Plus enclosure. 4. Connect the wired detector to DoorProtect Plus terminals. 5. In DoorProtect Plus settings , enable the External Contact option. 6. Check operation of the connected wired detector. To receive an alarm when the roller shutters open, connect a wired roller shutter motion detector with a normally closed contact to DoorProtect Plus.

  • Page 25: Technical Speci Cations

    Ajax apps, and the LED will light up and go out gradually when the detector raises an alarm. We recommend you replace the batteries immediately upon noti cation. It is advisable to use lithium batteries. They have a large capacity and are less affected by temperatures.

  • Page 26: Complete Set

    3. CR123A battery (pre-installed). 4. Big magnet. 5. Small magnet. 6. Terminal to connect a third-party detector. 7. Installation kit. 8. Quick Start Guide. Warranty Warranty for the AJAX SYSTEMS MANUFACTURING Limited Liability Company products is valid for 2 years after the purchase.
  • Page 27 If the device does not function correctly, please contact the Ajax Technical Support rst. In most cases, technical issues can be resolved remotely. Warranty Obligations User Agreement Contact Technical Support: e-mail Telegram Subscribe to the newsletter about safe life. No spam...
