CP0523
FITTING INSTRUCTIONS

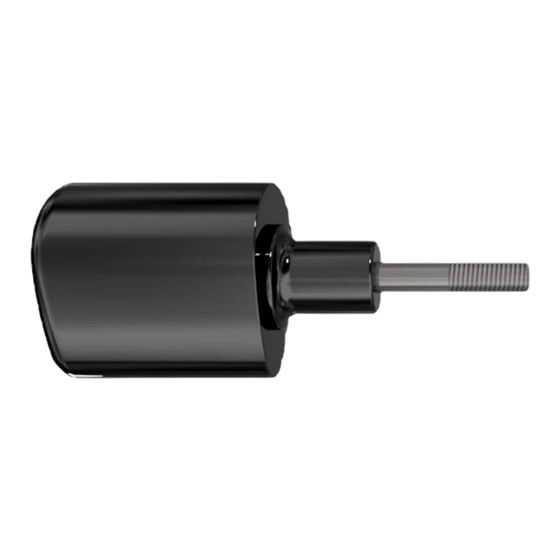

CP0523BK AERO CRASH PROTECTORS
T
.
HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE
S
.
OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY
D
.
O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT
P
.
LEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING
IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS
OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
P
LEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE WAY OF
.
MOUNTING TO THE BIKE
I
,
N THE EVENT OF RUBBER WASHERS BEING USED TO HOLD COMPONENTS ONTO BOLTS
.
THESE RUBBER WASHERS CAN BE THROWN AWAY
DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM:
WWW.RG-RACING.COM
R&G Racing
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
www.rg-racing.com
Email:
info@rg-racing.com
Advertisement
Table of Contents
Related Manuals for R&G CP0523BK
Summary of Contents for R&G CP0523BK
- Page 1 Page 1 of 18 CP0523 FITTING INSTRUCTIONS CP0523BK AERO CRASH PROTECTORS HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY O NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT...
-
Page 2: Tools Required
Page 2 of 18 CP0523 TOOLS REQUIRED GENERAL TORQUE SETTINGS 3/8” or ½” HEX KEY BIT SET M4 BOLT = 8Nm • M5 BOLT = • 17mm A/F SOCKET & WRENCH M6 BOLT = TORQUE WRENCH (UP TO 50Nm) • M8 BOLT = 20Nm SUITABLE SUPPORT JACK •... - Page 3 Page 3 of 18 CP0523 AERO-STYLE CRASH PROTECTOR ORIENTATION LHS & RHS EXPLODED ASSEMBLY VIEW R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 4 Page 4 of 18 CP0523 FITTING PICTURES Picture 1 Picture 2 Picture 3 Picture 4 Picture 5 Picture 6 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
-
Page 5: Fitting Instructions
Page 5 of 18 CP0523 FITTING INSTRUCTIONS Before removing engine bolts, ensure the bike is upright and supported by a suitable engine stand or jack placed under the sump of the motorbike to support the partial weight of the engine, this will prevent the engine from moving during fitting. DO NOT REMOVE MORE THAN 1 ENGINE BOLT AT ANY TIME. - Page 6 Page 6 of 18 CP0523 practice or if the defect arises from accident or neglect. Other than identified above and subject to R&G not limiting its liability for causing death and personal injury, it shall not be liable for indirect or consequential loss and otherwise its liability shall be limited to the amounts paid by the Buyer for the Products or the fitting or service concerned.
- Page 7 Page 7 of 18 CP0523 NOTICE DE MONTAGE POUR CP0523 PROTECTIONS CRASH YAMAHA MT-09 STANDARD & SP 2021- E KIT CONTIENT LES ARTICLES ILLUSTRES ET ETIQUETES SUR LA PAGE ERTAINES PARTIES PEUVENT ETRE PRESENTES UNIQUEMENT POUR LA CLARTE DES INSTRUCTIONS E PAS PROCEDER AU MONTAGE TANT QUE VOUS N ETES PAS SUR QUE TOUTES LES PIECES SOIENT PRESENTES...
- Page 8 Page 8 of 18 CP0523 TOOLS REQUIRED VALEURS DE SERRAGE CLÉS HEXAGONALES 3/8” ou ½” M4 BOULON = 8Nm • M5 BOULON = • CLÉ À CLIQUET + DOUILLE 17mm M6 BOULON = CLÉ DYNAMOMÉTRIQUE (À 50Nm) • M8 BOULON = 20Nm PRISE ADAPTÉE POUR SUPPORTER LE MOTEUR •...
- Page 9 Page 9 of 18 CP0523 ORIENTATION DE LA PROTECTION CRASH SCHÉMA D’ENSEMBLE CÔTÉ GAUCHE & DROIT R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
- Page 10 Page 10 of 18 CP0523 PHOTO DE MONTAGE Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 R&G Racing Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
-
Page 11: Notice De Montage
Page 11 of 18 CP0523 NOTICE DE MONTAGE Avant de retirer les boulons du moteur, assurez-vous que la moto soit bien droite et soutenue par un support moteur approprié ou un cric placé sous le carter de la moto pour supporter le poids du moteur, cela empêchera le moteur de bouger pendant le montage. - Page 12 Page 12 of 18 CP0523 either supply a replacement or refund the purchase money but shall not be liable if the Products have been modified or used or maintained otherwise than in accordance with R&G’s or manufacturer’s instructions and good engineering practice or if the defect arises from accident or neglect.
