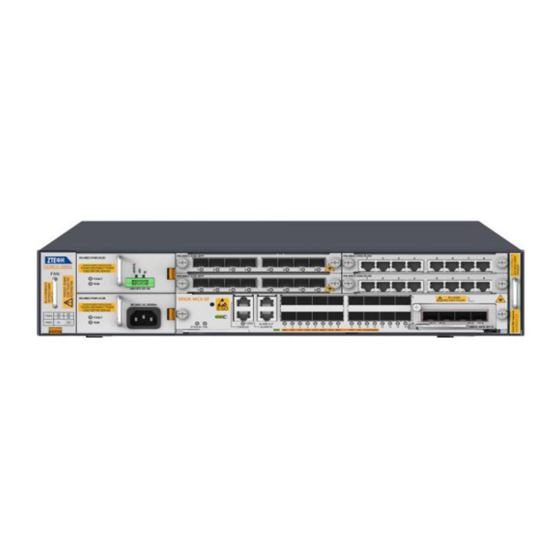

Easy-maintenance mpls routing switch
Hide thumbs Also See for ZXR10 5900E Series:
Table of Contents

Advertisement

Quick Links

ZXR10 5900E Series
Easy-Maintenance MPLS Routing Switch
Routine Maintenance
Version: 3.00.11
ZTE CORPORATION
No. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: +86-755-26771900
Fax: +86-755-26770801
URL: http://support.zte.com.cn
E-mail: support@zte.com.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZXR10 5900E Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zte ZXR10 5900E Series

Summary of Contents for Zte ZXR10 5900E Series

  • Page 1 ZXR10 5900E Series Easy-Maintenance MPLS Routing Switch Routine Maintenance Version: 3.00.11 ZTE CORPORATION No. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26771900 Fax: +86-755-26770801 URL: http://support.zte.com.cn E-mail: support@zte.com.cn...
  • Page 2 ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by contractual confidentiality obligations. All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respective owners.

  • Page 3: Table Of Contents

    6.1 Checking the Equipment Room Environment ............6-1 6.2 Checking the Cabinet Environment..............6-2 Chapter 7 Common Maintenance Commands ......... 7-1 Appendix A Maintenance Record Forms ..........A-1 A.1 Form for Daily Maintenance Records ..............A-1 SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...
  • Page 4 A.2 Form for Monthly Maintenance Records .............. A-2 A.3 Form for Quarterly Maintenance Records ............A-3 A.4 Form for Yearly Maintenance Records..............A-4 SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...

  • Page 5: About This Manual

    Maintenance Provides maintenance record forms for different maintenance cycle. Record Forms Conventions ZTE documents employ the following typographical conventions. Italics Variables in commands. It may also refer to other related manuals and documents. Bold Menus, menu options, function names, input fields, option button names, check boxes, drop-down lists, dialog box names, window names, parameters, and commands.
  • Page 6 Caution: indicates a potentially hazardous situation. Failure to comply can result in moderate injury, equipment damage, or interruption of minor services. Note: provides additional information about a certain topic. SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...

  • Page 7: Chapter 1 Routine Maintenance Overview

    If you locate any fault during routine maintenance, start the related troubleshooting flow and handle the fault in accordance with the documents of the ZXR10 5900E product. For related and updated documents, visit ZTE Technical Support Website, http://support.zte.com.cn/. SJ-20150114102049-013|2015-01-15 (R1.0)
  • Page 8 ZXR10 5900E Series Routine Maintenance To make the equipment work reliably and securely and reduce accidents and maintenance costs, consider and refer to the following principles. Equipment room Management Observe the following precautions when you manage a equipment room. Make sure that the equipment room meet the related national standards or the basic industrial standards.

  • Page 9: Introduction To Routine Maintenance Items

    When the maintenance personnel have any question during maintenance, they should record detailed original information and then contact the ZTE customer service center or the local ZTE office. The maintenance personnel must not install, run or copy any other software not related to maintenance operations on the maintenance terminals.
  • Page 10 ZXR10 5900E Series Routine Maintenance Introduction to Routine Maintenance Items Stable equipment operation for ZXR10 5900E relies on professional network planning and object implementation on the one hand, and relies on maintenance and detection to remove the hidden troubles during equipment operation on the other hand.
  • Page 11 Checking the configurations of the interface clocks Checking the backup configurations Yearly Checking fire protection maintenance Checking measures against theft Checking equipment earthing Checking the power supply redundancy Checking the board redundancy Cleaning the equipment SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...
  • Page 12 ZXR10 5900E Series Routine Maintenance This page intentionally left blank. SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...

  • Page 13: Chapter 2 Risky Operations During Routine Maintenance

    This result need to be given first, then handling instructions. SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...
  • Page 14 ZXR10 5900E Series Routine Maintenance Operation Class Operation Type Possible Result Risky operations It is prohibited to plug out the system If a fan module is plugged out and the period related to fans fan modules without guidance from the...
  • Page 15 3A authentication is configured but no username and no password is configured, the system cannot be logged in to. SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...
  • Page 16 ZXR10 5900E Series Routine Maintenance This page intentionally left blank. SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...

  • Page 17: Chapter 3 Daily Maintenance Items

    1. The air-conditions in the equipment room are working properly. 2. The temperature and humidity in the equipment room meet the requirements. The temperature and humidity requirements of ZXR10 5900E are listed in Table 3-1. SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...

  • Page 18: Checking The Power Supply In The Equipment Room

    ZXR10 5900E Series Routine Maintenance Table 3-1 Device Operation Environment Requirements on ZXR10 5900E Maintenance Items Reference Standard Temperature in the equipment room The temperature of the working environment: 23℉ (-5℃) - 113℉ (45℃) The temperature of the store environment: -40℉...

  • Page 19: Checking Equipment Basic Information

    There should be one serial port cable and one antistatic ring handle at least in a cabinet. Note: The serial port cable of ZXR10 5900E and those of ZTE switches and Cisco switches are interchangeable. 3.4 Checking Equipment Basic Information...
  • Page 20 ZXR10 5900E Series Routine Maintenance System image files are:<ftp://168.0.0.178/HMPU.set> System uptime is 0 days, 0 hours, 45 minutes [MP(M) , shelf 0 ,panel 1] cpu 0 Main processor : ARM MV78230 Processor Bootrom Version : V1.21 Memory : 2048 Mbytes...

  • Page 21: Checking The Device Operation Status

    1. Run the show temperature detail command to check the system temperature. In normal situations, the system temperature should be less than the lowest alarm threshold. As shown below, the Minor column shows the lowest alarm threshold, and the Temper column shows the system temperature. SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...
  • Page 22 ZXR10 5900E Series Routine Maintenance ZXR10#show temperature RENV : Remote environment temperature(Celsius degree) LENV : Local environment temperature(Celsius degree) : Threshhold temperature(Celsius degree) Shelf Panel RENV/TH LENV/TH MP(M) 127/60 60/60 2. Run the show fan command to check the fan operation status.
  • Page 23 Duplex/full 1000 down down gei-0/1/1/6 electric Duplex/full 1000 down down gei-0/1/1/7 electric Duplex/full 1000 down down gei-0/1/1/8 electric Duplex/full 1000 down down gei-0/1/1/9 electric Duplex/full 1000 down down gei-0/1/1/10 electric Duplex/full 1000 down down SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...
  • Page 24 ZXR10 5900E Series Routine Maintenance gei-0/1/1/11 electric Duplex/full 1000 down down gei-0/1/1/12 electric Duplex/full 1000 down down gei-0/1/1/13 electric Duplex/full 1000 down down gei-0/1/1/14 electric Duplex/full 1000 down down gei-0/1/1/15 electric Duplex/full 1000 down down gei-0/1/1/16 electric Duplex/full 1000 down...
  • Page 25 HardWareCounters: In_Bytes In_Packets In_Unicasts In_Broadcasts In_Multicasts In_Undersize In_CRC_ERROR In_DropEvents In_Fragments In_Jabbers In_MacRxError In_64B In_65_127B In_128_255B In_256_511B In_512_1023B In_1024_1518B In_Oversize E_Bytes 62886 E_Packets E_Unicasts E_Broadcasts E_Multicasts E_SingCollision E_LateCollision E_64B E_65_127B E_128_255B E_256_511B E_512_1023B E_1024_1518B E_Oversize SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...

  • Page 26: Checking The Service Operation Status

    ZXR10 5900E Series Routine Maintenance 3.6 Checking the Service Operation Status Purpose This topic describes how to check the service operation status on a equipment to ensure that the services are working properly. Steps 1. Check the OSPF neighbor status.
  • Page 27 *> 168.10.0.0/24 168.0.0.1 vlan4094 Static ZXR10(config) ZXR10(config)#show ip protocol routing summary Route Source count connected: static: ospf: rip: bgp: isis: icmp: snmp: nat: natpt: vrrp: ppp: asbr_vpn: rsvpte: usr-ipaddr: usr-net: ipsec: ps-user: ps-busi: 3-11 SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...
  • Page 28 ZXR10 5900E Series Routine Maintenance ves: ldp: user-special: dhcp-dft: dhcp-static: sl_nat64_v4: Total: 3-12 SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...

  • Page 29: Chapter 4 Monthly Maintenance Items

    This topic describes how to check equipment basic information to ensure that the equipment is working properly. Steps 1. Check the configuration file. 2. Check version boot information. 3. Check the rest capacity of the hard disk. SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...

  • Page 30: Checking The Equipment System Time

    ZXR10 5900E Series Routine Maintenance Reference Standards 1. Run the show running-config command to check the configuration file. In normal situations, the configuration should be consistent with that the users require. If there is new configuration, it is necessary to run the write command to save the configuration.

  • Page 31: Checking User Security Management

    In normal situations, the user passwords are displayed in the encrypted format. Consider the following suggestions while setting the password. Do not use simple words such as zte, zxr10 and who as usernames. Set a user password with at least 6 bits. Set the password containing at least two of the following types: number, lowercase, uppercase and special character.

  • Page 32: Checking The Device Interface Configuration

    ZXR10 5900E Series Routine Maintenance 4.5 Checking the Device Interface Configuration Purpose This topic describes how to check the equipment interface configurations to ensure that the interfaces are working properly. Steps 1. Check the interface statuses. 2. Check the interface descriptions.

  • Page 33: Checking The Device Basic Configuration

    This topic describes how to check the equipment basic configuration to ensure that the equipment is working properly. Step Back up the configuration file. Reference Standard For the details about backup, refer to the ZXR10 5900E configuration guide or ZXR10 5900E product upgrading guide. SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...
  • Page 34 ZXR10 5900E Series Routine Maintenance This page intentionally left blank. SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...

  • Page 35: Chapter 5 Quarterly Maintenance Items

    5. Generally, there is not much dust at the air inlets of the cabinet, and equipment heat dissipation is not be affected. If there is too much dust, clean the dust in an appropriate time. SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...

  • Page 36: Checking User Security Management

    ZXR10 5900E Series Routine Maintenance 5.2 Checking User Security Management Purpose This topic describes how to check user security management to ensure that the equipment operation environment is secure. Steps 1. Change the user passwords. 2. Change the enable passwords.

  • Page 37: Checking The Interface Configuration

    If there is a relay equipment between two equipment, it is required to set both of the interconnected ends to the slave clocks. 5.4 Checking the Equipment Basic Configuration Purpose This topic describes how to check the equipment basic configuration to ensure that the equipment is working properly. SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...
  • Page 38 ZXR10 5900E Series Routine Maintenance Step Check the backup configuration on the equipment. Reference Standard Run the show running-config command to check whether there is backup configuration. In normal situations, the system configuration should meet user requirements, and there is no useless configuration. If there is useless configuration, it is recommended to delete the configuration cautiously.

  • Page 39: Chapter 6 Yearly Maintenance Items

    Generally, there should be a UPS in the equipment room. For a core equipment room, there should be storage batteries. 5. Check the storeroom. Generally, for the important components on the equipment, such as MPU and PIU, there should be spare ones. SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...

  • Page 40: Checking The Cabinet Environment

    ZXR10 5900E Series Routine Maintenance If the spare components are not enough, contact local ZTE technical support to apply for spare components. 6.2 Checking the Cabinet Environment Purpose This topic describes how to check the cabinet environment to ensure that the cabinet environment is normal.

  • Page 41: Chapter 7 Common Maintenance Commands

    Shows interface status information Shows ARP information show arp Shows a forwarding route table show ip forwarding route Shows the routing summary show ip protocol routing summary Shows configuration mode information show this SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...
  • Page 42 ZXR10 5900E Series Routine Maintenance Command Function Shows information of an optical module on a port show optical-inform interface show debug Shows debugging information and whether the debugging function is enabled show ip ospf neighbor Shows the OSPF neighbor statuses...

  • Page 43: Appendix A Maintenance Record Forms

    Temperature in the machine room Humidity in the machine room Serial port cables and antistatic ring handles Software version and the board in-position statuses Alarm information Operation logs Exception files Equipment temperature Fan status Power supply status SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...
  • Page 44 ZXR10 5900E Series Routine Maintenance Board indicators CPU usage and the memory usage Interface status Interface traffic OSPF neighbor status IS-IS neighbor status BGP neighbor status Routing information Remark Reviewer signature A.2 Form for Monthly Maintenance Records A form for the monthly maintenance records is shown in Table A-2.
  • Page 45 Table A-3 Form for Quarterly Maintenance Records Basic Information Office name Date Product type Device name Attended time From________to________ On-duty person Maintenance Procedure Number Maintenance item Result Records for an exception Cable mounting Labels Rack appearance SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...
  • Page 46 ZXR10 5900E Series Routine Maintenance Cleanness of the dust screens and fan modules Rack heat dissipation Change the user passwords Change the enable enable passwords Configurations on the Ethernet interfaces IP address configuration Configurations of the interface clocks Backup configuration...
  • Page 47 Attended time From________to________ On-duty person Maintenance Procedure Number Maintenance item Result Records for an exception Fire protection Measures against theft Device earthing. Power supply redundancy Board redundancy Cleanness of the equipment Remark Reviewer signature SJ-20150114102049-013|2015-01-15 (R1.0) ZTE Proprietary and Confidential...
