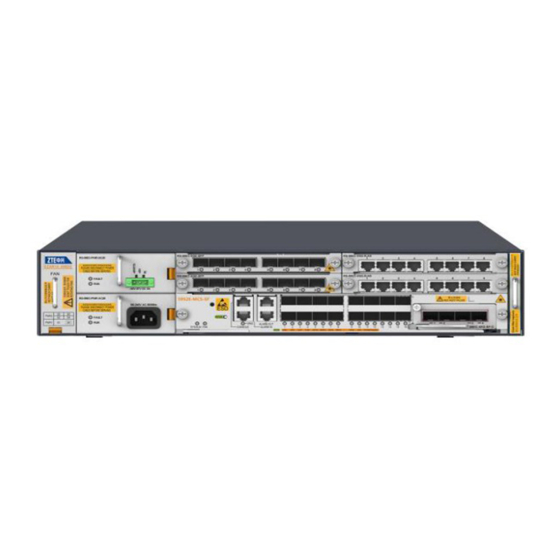

ZXR10 5900E Series
All Gigabit-Port Intelligent Routing Switch
Hardware Manual
Version 2.8.23.B
ZTE CORPORATION
ZTE Plaza, Keji Road South,
Hi-Tech Industrial Park,
Nanshan District, Shenzhen,
P. R. China
518057
Tel: (86) 755 26771900
Fax: (86) 755 26770801
URL: http://ensupport.zte.com.cn
E-mail: support@zte.com.cn

Advertisement

Table of Contents
loading

Related Manuals for Zte ZXR10 5900E Series

Summary of Contents for Zte ZXR10 5900E Series

  • Page 1 ZXR10 5900E Series All Gigabit-Port Intelligent Routing Switch Hardware Manual Version 2.8.23.B ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, P. R. China 518057 Tel: (86) 755 26771900 Fax: (86) 755 26770801 URL: http://ensupport.zte.com.cn E-mail: support@zte.com.cn...
  • Page 2 The contents of this document are protected by copyright laws and international treaties. Any reproduction or distribution of this document or any portion of this document, in any form by any means, without the prior written consent of ZTE CORPO- RATION is prohibited.

  • Page 3: Table Of Contents

    Contents About This Manual..........i Safety Introduction ...........1 Safety Introduction ............1 Safety Symbols .............. 1 System Introduction .........3 Product Overview ............3 Functions ..............3 Technical Characteristics and Parameters ......5 Structure and Principle........7 Working Principle............7 Hardware Structure ............8 ZXR10 5928E.............
  • Page 4 Glossary ............29...

  • Page 5: About This Manual

    Routing Switch User Manual (Ethernet Switching Volume) � ZXR10 5900E (V2.8.23.B) Series All Gigabit-Port Intelligent Routing Switch User Manual (IPv4 Routing Volume) � ZXR10 5900E (V2.8.23.B) Series All Gigabit-Port Intelligent Routing Switch User Manual (IPv6 Routing Volume) Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 6 ZXR10 5900E Series Hardware Manual This page is intentionally blank. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 7: Safety Introduction

    Safety precautions introduced in this manual are supplementary to the local safety codes. ZTE bears no responsibility in case of universal safety operation requirements violation and safety standards violation in designing, manufacturing and equipment usage.
  • Page 8 ZXR10 5900E Series Hardware Manual This page is intentionally blank. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 9: System Introduction

    Full support of network protocols � Open system architecture, showing good upgrade capability Functions ZXR10 5900E Series includes two models: ZXR10 5928E and ZXR10 5928E-FI. Both two models use the same solution. 1. Physical Interface Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 10 Supporting DHCP Relay and DHCP Server � 8. Reliability Supporting VRRP � Supporting route load balancing � 9. Network Management Supporting Command Line Interface (CLI) configuration � mode Supporting configuration through console port, Telnet and � Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 11: Technical Characteristics And Parameters

    Working Temperature Operating ambient temperature: -5℃~+45℃ Storage temperature: -40℃~+70℃ Working Humidity Relative humidity: 10% to 90%, non-condensing Memory Size ZXR10 5928E: 256M ZXR10 5928E-FI: 256M Switch Capacity ZXR10 5928E: 128G ZXR10 5928E-FI: 128G Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 12 12K, IPv6 6K Equivalence route: 8 ZXR10 5928E-FI: host route: IPv4 8K, IPv6 4K Network segment route: IPv4 12K, IPv6 6K Equivalence route: 8 Capacity of MAC Address Table ZXR10 5928E: 32K ZXR10 5928E-FI: 32K Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 13: Structure And Principle

    Power Module ..............13 Monitoring Interface ............14 Working Principle ZXR10 5900E series products cassette fast Ethernet switches de- veloped by ZTE. This series switches adopt modular design and have strong capability in service control and user management so as to provide networking solutions to convergence of enterprise network, IP MAN network and residential block.

  • Page 14: Hardware Structure

    The rear view of ZXR10 5928E is as shown in Figure 3 ZXR10 5928E R IGURE ZXR10 5928E-FI The height of ZXR10 5928E-FI chassis is 1U (1U=44.45mm). It can provide 24 gigabit Ethernet optical interfaces (SFP) and sup- Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 15: Mcs

    Management terminal can perform operations and main- tenance to ZXR10 5900E through management interface, which supports 10/100Base-T. iii. 100/1000Base-T Ethernet Interface ZXR10 5928E main board supports 1000 Base-TX and 100Base-TX on CAT5. The characteristics are as shown in Table Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 16 Management Connection is Green Interface unavailable. indicator is on: Indicator link Green indicator flashes: active Device is not Green powered or indicator is fault occurs on on: Power power source source works normally Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 17 STP port is blocked. Green Yellow indicator indicator flashes: flashes: active Packets are being forwarded and STP port is blocked. Green and yellow indicators flash: Connection error, frame Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 18: Lic

    Connection is DUP mode Green indicator unavailable. is on: Full- duplex link Green indicator flashes: Full-duplex active QGLB QGLB subcard provides 4 gigabit Ethernet upstream optical inter- faces, as shown in Figure Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 19: Power Module

    8 5900E AC P IGURE OWER NTERFACE IAGRAM Technical parameters of AC-DC power module are as follows: � Input voltage: single-phase 100VAC–240VAC � Input current: Max 1.42A � Frequency: 43–67Hz � Max Power Consumption: 100W Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 20: Monitoring Interface

    3 pairs of dry node input and ALARM OUT interface provides 4 pairs of dry node output.Figure 9 shows interfaces. 9 ZXR10 5900E M IGURE ONITORING NTERFACE IAGRAM Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 21: Installation

    19-inch standard cabinet. Where, 19-inch standard cabinet can be provided by the user. In case ZTE cabinet is to be used, please refer to 19-Inch Standard Cabinet Installation Manual for cabinet installation.
  • Page 22 12 I IGURE NSTALLATION OF OLDING LATES After fixing holding plates, push in switch along the holding plates and fix flanges onto the cabinet, as shown in Figure 13 (taking ZXR10 3252A for example). Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 23: Cable Laying

    Connect one end of AC cable to the AC socket of ZXR10 5900E AC power module, and connect the other end to 220V AC socket. 2. Connection of DC Power Cable i. DC -48V power cable C-PWR-084 is shown in Figure Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 24 DC backup power cable C-PWR-072 is shown in Figure 16 DC B C-PWR-072 D IGURE ACKUP OWER ABLE IAGRAM Corresponding relationship between two ends of DC power cable is as shown in Table Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 25: Connection Of Serial Console Cable

    ERIAL ONSOLE ABLE IAGRAM Line order of serial console cable is shown in Table 10 S ABLE ERIAL ONSOLE ABLE RDER ABLE Cable Chroma- End B End A togram White Blue White Orange Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 26: Connection Of Network Cable

    The specific connection relationship is shown in Table 11 S RJ45 L ABLE TRAIGHT HROUGH ETWORK ABLE RDER ABLE Cable Chroma- End B End A togram White-Orange Orange White-Green Green Blue White-Blue Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 27: Connection Of Fiber

    IBER ABLE Switch End Opposite End Mode Connector Type Connector Type FC/PC Connector SC-PC Connector Single-mode fiber SC/PC Connector (Square Panhead) ST/PC Connector FC/PC Connector SC-PC Connector Multi-Mode Fiber (Square Panhead) SC/PC Connector Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 28: Power-On Procedures

    Check if power switch of switch is at off position. iv. Check if rack has a good contact and if earthing resistance meets technical requirements. 4. Power on ZXR10 5900E in the following steps: i. Connect switch AC power cable. Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 29 Chapter 4 Installation ii. Turn on external power supply. 5. Power off ZXR10 5900E in the following steps: i. Turn off external power supply. ii. Disconnect switch AC power cable. Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 30 ZXR10 5900E Series Hardware Manual This page is intentionally blank. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 31: Figures

    Figure 14 AC Power Cable...........17 Figure 15 DC Power Cable C-PWR-084 Diagram .....18 Figure 16 DC Backup Power Cable C-PWR-072 Diagram ..18 Figure 17 ZXR10 5900E Serial Console Cable Diagram....19 Figure 18 Network Cable Structure Diagram ......20 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 32 ZXR10 5900E Series Hardware Manual This page is intentionally blank. Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 33: Tables

    Table 10 Serial Console Cable Line Order Table ......19 Table 11 Straight-Through Network Cable RJ45 Line Order Table ...............20 Table 12 Crossover Network Cable RJ45J Line Order Table..21 Table 13 Fiber Type Table............21 Table 14 Temperature and Humidity ........22 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 34 ZXR10 5900E Series Hardware Manual This page is intentionally blank. Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 35 - Rapid Spanning Tree Protocol SNMP - Simple Network Management Protocol - Strict Priority - Secure Shell - Spanning Tree Protocol VLAN - Virtual Local Area Network VRRP - Virtual Router Redundancy Protocol - Weighted Round Robin Confidential and Proprietary Information of ZTE CORPORATION...
