Installation and user's manual
ECON A2
GB
IP x4
29343279en / - 43.06
GB
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECON A2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EOS ECON A2

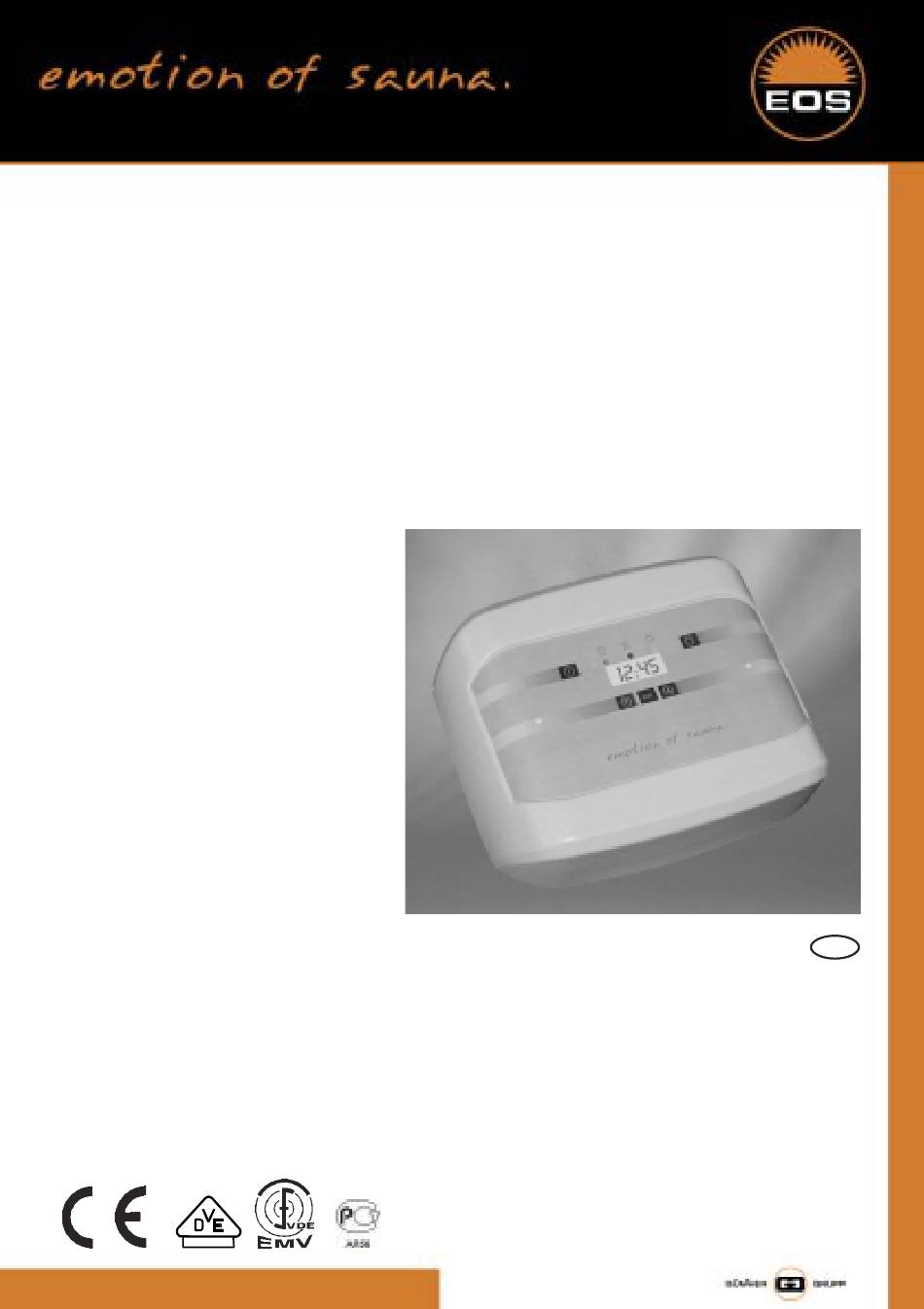

  • Page 1 Installation and user's manual ECON A2 IP x4 29343279en / - 43.06...
  • Page 2: Table Of Contents

    Contents General information Operation Technical Data Finnish sauna Package contents General safety precautions Changing preset parameters Changing the temperature Assembly of the control unit Wall mounting Starting with set time Electrical connection Extending the heating time 2.2.1 Connecting the sauna oven Control unit switch 2.2.2 Connecting the sauna lamp Troubleshooting...
  • Page 3: General Safety Precautions

    1.3 General safety precautions 2 Assembly of the control unit 2.1 Wall mounting l This device has not been designed for being used by persons (including Mount the control unit outside the sauna children) that are physically or mentally cabin only. The most practical mounting handicapped have sensory...
  • Page 4 threaded holes Please note: upper threaded hole If the sauna cabin is not equipped with electrical conduits, the electrical cables must be lead along the outside of the cabin, preferably in one of the recesses between the wood boards. Therefore, you have to mount the control unit farther away from the cabin wall, so you can lead the cables into the unit.
  • Page 5: Electrical Connection

    2.2 Electrical connection 2.2.1 Connecting the sauna oven The electrical connection can Warning: Always connect the only be carried out by an sauna oven's neutral conductor. approved electrician, observing the local energy supply company's guidelines and those of the VDE (German Electrical Association).
  • Page 6: Connecting The Sensor Lines

    sensor 2.3 Connecting the sensor lines board You should not install sensor and power supply lines together, or lead them through the same conduit. This can lead to interferences in the electronics, such as "fluttering" in the switch protectors. If it is absolutely necessary to install them together, or the wire is longer than 3m, you should use a shielded sensor line such as...
  • Page 7: Operation

    On the pages that follow, we would like to familiarise you with the operations and features of your sauna control system. In each case the illustrations next to the text show the displays visible on the control unit. The symbol means that the relevant part of the display is flashing.
  • Page 8: Finnish Sauna

    Switching on the control unit for the first time After making a final check on all the connections – ensure that the control unit switch is set to I – connect the unit to the mains by switching on the fuses or the main switch. After switching on the time flashes.
  • Page 9: Changing Preset Parameters

    Switching the light on and off By pressing the button, the sauna room 15:00 lighting can be switched on or off. The yellow light LED is also illuminated on the display when the lighting is switched on. 4 Changing the preset parameters In order to change the preset parameters for temperature the sauna must be switched off.
  • Page 10: Starting With Set Time

    Option 1: If you want to use the sauna right away. Press the button. The set temperature is saved, the sauna switches on and is regulated to the new set temperature. Option 2: If you want to use the sauna later. To save the new set temperature, press 85°...
  • Page 11 Press the "MODE" button. The display starts to flash. 19 : 00 Using the buttons, you can now set the desired set time. 17 : 10 Please consider that the cubicle must heat up for around 40-50 minutes to achieve an appropriate temperature.
  • Page 12: Control Unit Switch

    6 Extended heating time (commercial use) In its delivery condition the control unit is set to a maximum heating period of 6 hours. The heating time limit can be Jumper extended to 12 hours. To do this, the jumper is plugged in according to the illustration opposite.
  • Page 13: Troubleshooting

    Switch on control unit switch Display dark switched off Mains fault Check on-site fuses and main switch 9 Connection diagram 139°C ECON A2 power unit max .9 kW 400 V 3 N AC Attention! Dear customer, according to the valid regulations, the...
  • Page 14 Outside of Germany please contact your specialist dealer in case of warranty claims. Direct warranty processing with our service Service Address: department is in this case not possible. EOS-Werke Günther GmbH Adolf-Weiß-Str. 43 35759 Driedorf-Germany Equipment start-up date: tel +49 (0)2775 82-240...
