Savant VOM-VP02H Quick Reference Manual

Video Processing Output Module VOM-VP02H
Quick Reference Guide
The Video Processing Output Module, VOM-VP02H, is used to overlay
TrueCommand OSD onto the currently playing video stream. Each
card allows for connection of up to two (2) OSD video streams and
two (2) displays.
Box Contents
(1) VOM-VP02H-06
(1) HDMI Locking Cable (3 feet) (CBL-3LHDMI-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental Environmental
Refer to the SmartMediaPro chassis specifications. Refer to the SmartMediaPro chassis specifications.
Dimensions and Weight Dimensions and Weight
Height 1.31 in (3.33 cm) - Faceplate
Width 5.11 in (12.98 cm) - Faceplate
Depth 6.98 in (17.73 cm) - Faceplate and Board
Weight Shipping Weight: 1 lb (0.45 kg)
Power Power
Power is supplied through the SmartMediaPro chassis when module is Power is supplied through the SmartMediaPro chassis when module is
inserted (Do not hot plug module). inserted (Do not hot plug module).
Compliance Compliance
Safety and Emissions FCC Part 15 | CE Mark | C-Tick
RoHS Compliant
Minimum Supported Release Minimum Supported Release
Savant OS da Vinci 5.2.1
VOM-VP02H-06 | 009-0410-02 | 150306 VOM-VP02H-06 | 009-0410-02 | 150306
Copyright © 2015 Savant Systems, LLC

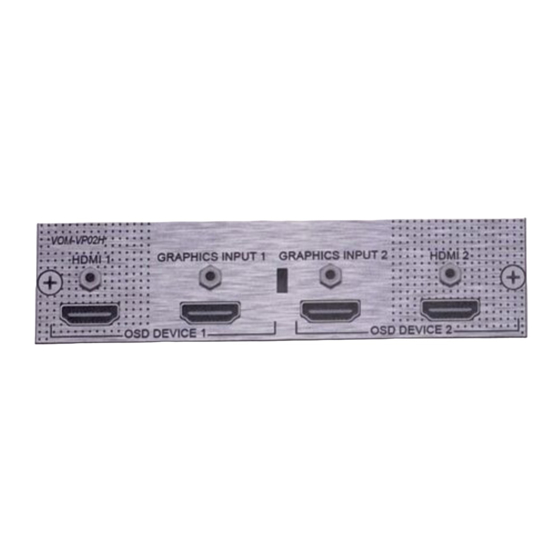

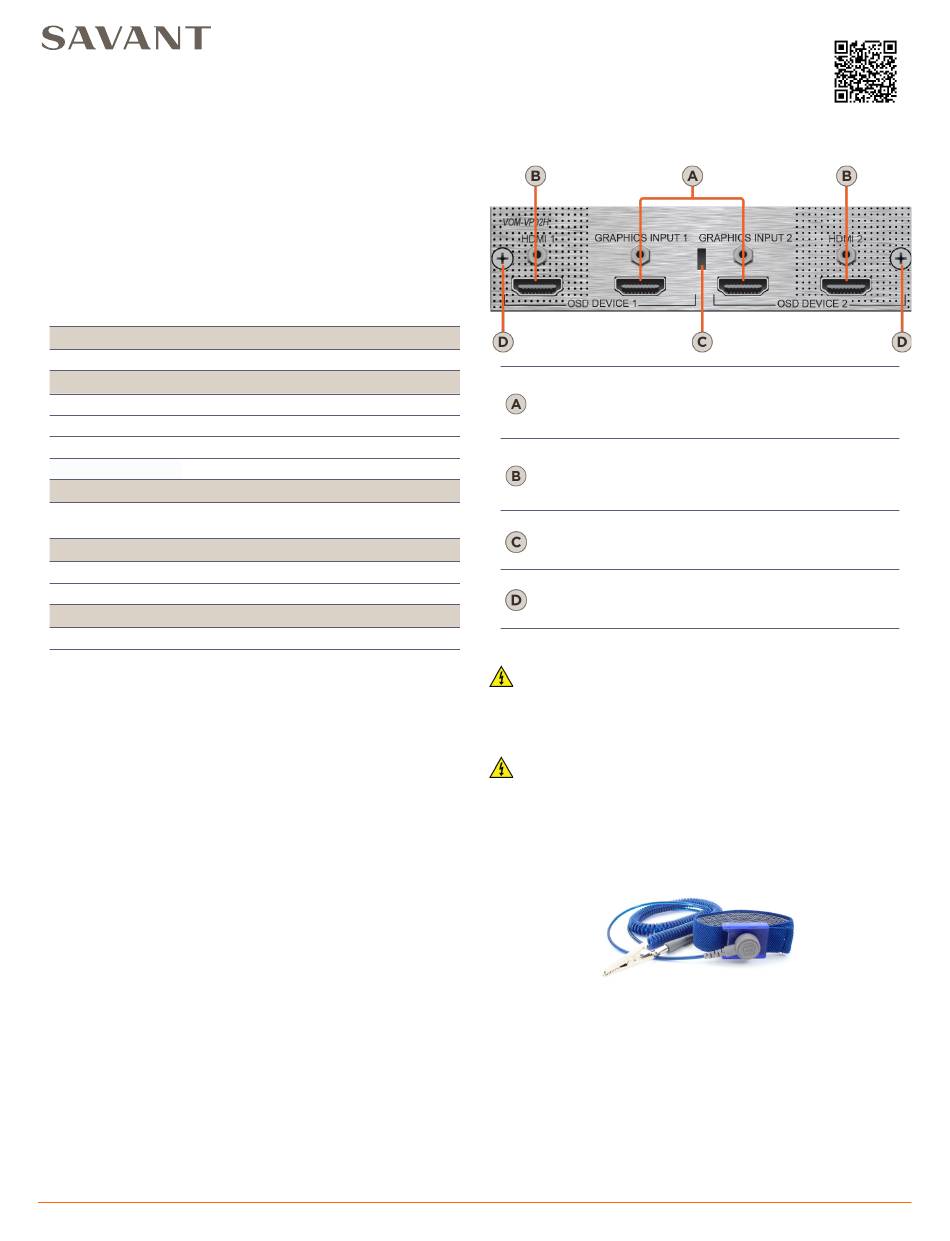

Rear Panel
19-pin type A HDMI female digital video/audio
input
Graphics
Input 1 and 2
Connect to HDMI or Thunderbolt (with
adapter) on Pro Host for TrueCommand OSD.
19-pin type A HDMI female digital video/audio
input
HDMI 1 and 2
Connect to display for TrueCommand OSD
overlay.
Insert the module removal tool (included with
Module
chassis) into this slot and pull outwards to
Removal Slot
remove the module.
M3 x 6 mm Phillips head flush mount screws,
Retaining
Pre-installed in chassis.
screws
Used to fasten the module to the chassis.
IMPORTANT! Module Installation Precautions
ELECTRIC DISCONNECT!
Power Off the controller by setting the power switch on the rear of
the chassis to Off (O) and remove the power cord before inserting
or removing any module from the SmartMediaPro chassis. Failure
to do so may cause damage to the equipment.
IMPORTANT! Electrostatic Discharge (ESD) Warning:
Observe the following precautions to avoid damage from electrostatic
discharge (ESD) when handling modules.
Use an approved ESD wrist or ankle-grounding strap. Ensure the
•
grounding strap makes good skin contact.
Connect the clip end of the ground strap to a threaded grounding
•
stud on the chassis.
When returning a replaced module to Savant, place the module in the
•
clamshell package in which it was originally shipped in or a static
shielding bag.
NOTE:
The wrist strap only protects the component from ESD voltages on the
body; ESD voltages on clothing can still cause damage.
1 of 2
