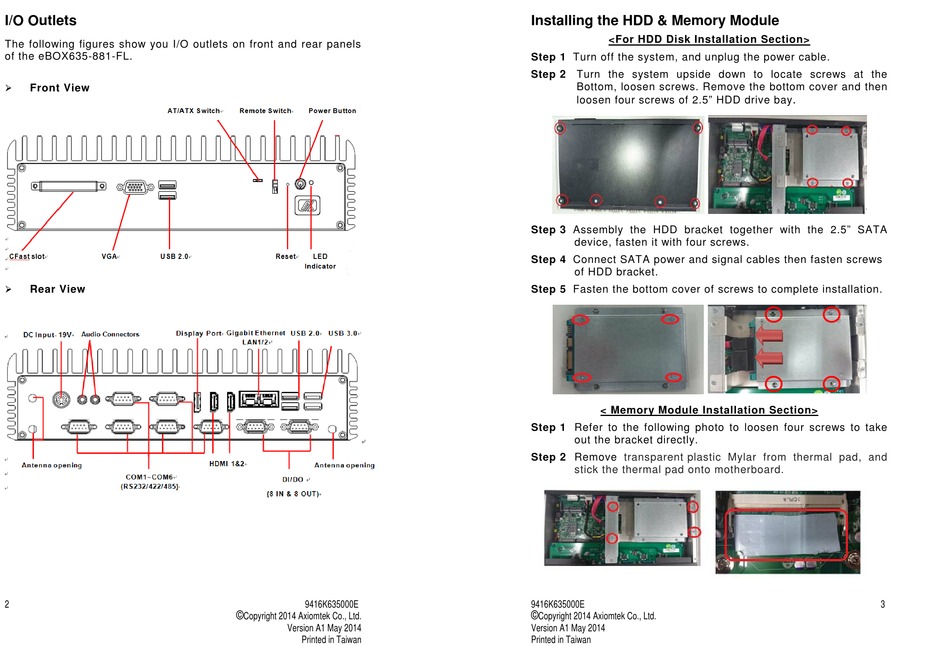

I/O Outlets
The following figures show you I/O outlets on front and rear panels
of the eBOX635-881-FL.

Front View

Rear View
2 9416K635000E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 May 2014
Printed in Taiwan
Installing the HDD & Memory Module
<For HDD Disk Installation Section>
Step 1 Turn off the system, and unplug the power cable.
Step 2 Turn the system upside down to locate screws at the
Bottom, loosen screws. Remove the bottom cover and then
loosen four screws of 2.5" HDD drive bay
Step 3 Assembly the HDD bracket together with the 2.5" SATA
device, fasten it with four screws.
Step 4 Connect SATA power and signal cables then fasten screws
of HDD bracket.
Step 5 Fasten the bottom cover of screws to complete installation.
< Memory Module Installation Section>
Step 1 Refer to the following photo to loosen four screws to take
out the bracket directly.
Step 2 Remove transparent plastic Mylar from thermal pad, and
stick the thermal pad onto motherboard.
