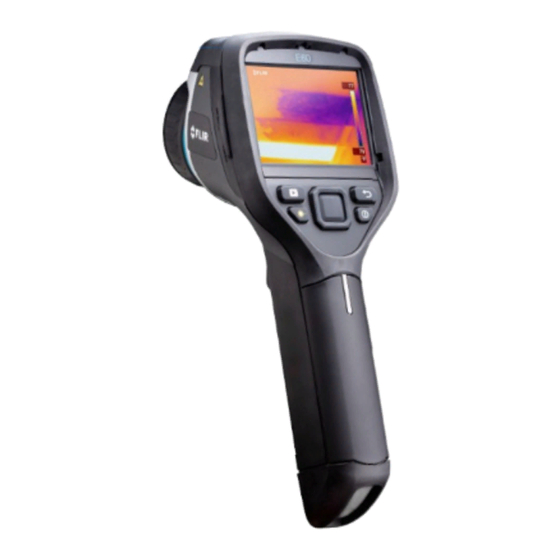

FLIR E Series User Manual

Hide thumbs Also See for E Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User's manual
FLIR EST Screening
FLIR Screen EST and FLIR Exx/T5xx/T8xx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FLIR E Series

Summary of Contents for FLIR E Series

  • Page 1 User’s manual FLIR EST Screening FLIR Screen EST and FLIR Exx/T5xx/T8xx...

  • Page 2: Table Of Contents

    Check that dual streaming is installed ....... 13 5.6.6 Configure the camera............ 13 Place the camera, display, and computer ........14 Connect the camera to FLIR Screen EST ........14 Get familiar with the screening ........... 14 5.10 Configure FLIR Screen EST ............15 5.10.1 Personal integrity ............

  • Page 3: Notice To User

    1.1 Note about this manual This manual describes how to set up, configure, and operate a FLIR EST Screening sta- tion based on the FLIR Screen EST application and a FLIR Exx, FLIR T5xx, or FLIR T8xx series camera. For complete information about the FLIR Screen EST application and the FLIR cameras, refer to the respective manuals.

  • Page 4: About Flir Est Screening

    FLIR Systems provides different screening solutions for detection of elevated skin tem- peratures using thermal cameras. No thermal cameras can detect or diagnose a virus infection, but with a FLIR EST Screening system it is possible to identify individuals with elevated skin temperatures.

  • Page 5: Screening Station - General Description

    3.1 Overview The screening station consists of a FLIR thermal camera, a computer with a FLIR EST Screening application, a clearly defined screening position, and a backdrop. For accurate measurements, it is important that the screened person is at the correct dis- tance from the camera.

  • Page 6: Mounting And Placement Considerations

    Screening station — General description 3.3.1 Mounting and placement considerations For accurate screening results, the following factors related to mounting, placement, and distances must be considered: • The camera shall be placed under the display. • The screening position shall be perpendicular to the camera. The distance between the camera and the screening position shall be 1–2 m (3–6 ft.).

  • Page 7: Supporting Material

    Screening station — General description 3.4 Supporting material 1. Screening information (roll-up) This roll-up informs people what the screening is about and why they need to do it. 2. Queue management Solution to guide the persons to the screening station, e.g. barriers and tape on the floor to indicate distance keeping.

  • Page 8: Examples

    Screening station — General description 3.4.1 Examples Figure 3.3 Roll-up, screening instructions Figure 3.2 Roll-up, screening information Figure 3.4 Floor sticker #T810558; r. AB/67023/67023; en-US...

  • Page 9: Privacy And Processes

    Screening station — General description Figure 3.5 Backdrop 3.5 Privacy and processes In addition to setting up the screening station equipment, you must also consider person- al integrity and processes for elevated temperature alarms. • Personal integrity You must make decisions on how to handle personal integrity; e.g. show/hide visitor display for others than the screened person, have/not have an alarm sound, save/not save image and data when an alarm is triggered.

  • Page 10: Screening With The Flir Screen Est Application

    Screening with the FLIR Screen EST application FLIR Screen EST is an application for detection of elevated skin temperatures using ther- mal cameras. Using face-detection capabilities, the system determines an average skin temperature of people entering the camera field of view and automatically alarms on readings that ex- ceed a selected temperature difference.
  • Page 11 Screening with the FLIR Screen EST application 4. You are in a good position. The system is measuring and evaluating your temperature. 5. The screening is completed and your result is displayed. No elevated temperature detected. Elevated temperature detected. Follow the instructions from the staff.

  • Page 12: Setting Up The Screening Station

    1. Prepare the screening station — choose site, secure power supply, solve queue management. 2. Prepare the computer — install the FLIR Screen EST application. 3. Prepare the camera — connect to computer, configure settings related to safety and accuracy.

  • Page 13: Prepare The Screening Station

    6. Run the application from the Start menu or by double-clicking the desktop icon. 7. The FLIR Screen EST dialog box appears where you can activate your license key. Note To complete the installation, the computer may need to be restarted. Follow the instructions on the screen.

  • Page 14: Power And Sleep Settings

    USB cable with power adapter. 2. Push the battery into the battery compartment. 3. Open the cover at the top (FLIR Exx) / bottom (FLIR T5xx/T8xx) of the camera. Insert the supplied memory card into the card slot.

  • Page 15: Connect The Camera To The Computer

    This is needed to provide the camera with enough power for continu- ous operation. 1. Open the cover at the top (FLIR Exx) / bottom (FLIR T5xx/T8xx) of the camera. Con- nect the USB cable to the USB-C connector in the camera.

  • Page 16: Place The Camera, Display, And Computer

    5.8 Connect the camera to FLIR Screen EST 1. Turn on the camera, by pushing the on/off button 2. In the FLIR Screen EST operator window, go to the Live page. 3. In the Discovery pane, make sure Dual is selected.

  • Page 17: Configure Flir Screen Est

    You access the Settings page via the toolbar on the Library and Live pages in the opera- tor window. For most settings in the FLIR Screen EST application, it is recommended to use the de- fault settings. The settings that you may want to change are on the Face detection and General tabs on the Settings page.

  • Page 18: Ensure Correct Setup

    Setting up the screening station of-interest. The Minimum value and Maximum value settings are used to specify this percentage. Depending on factors such as the distance to the camera and the type of camera lens, you may have to adjust the Minimum value and Maximum value settings. Note On the Live page you can change the size of the region-of-interest.
  • Page 19 Setting up the screening station 2. Adjust the focus on the face by using the focus controls on the Live page. You can also use the autofocus and/or manual focus functions in the camera. Autofocus Manual focus 3. Once the focus is correctly adjusted, make sure the focus is not changed. #T810558;...

  • Page 20: Screening Procedure - Operator Instructions

    3. Turn on the camera, by pushing the on/off button 4. In the Discovery pane in the FLIR Screen EST operator window, click the button to the right to connect to the camera. 5. Adjust the thermal camera focus, by doing the following: 5.1.
  • Page 21 Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Publ. No.: T810558...
