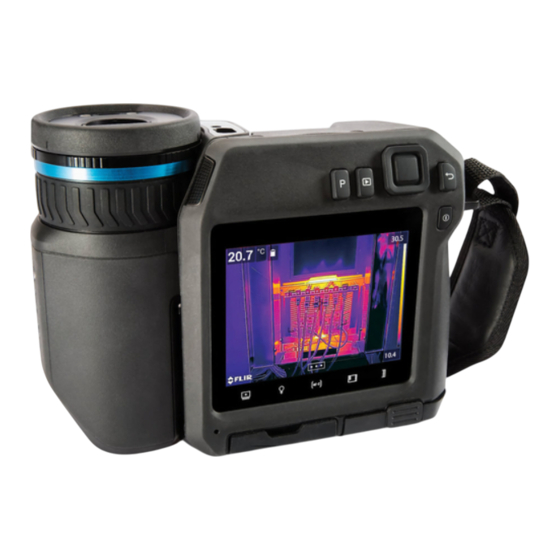

Summary of Contents for FLIR T560-42

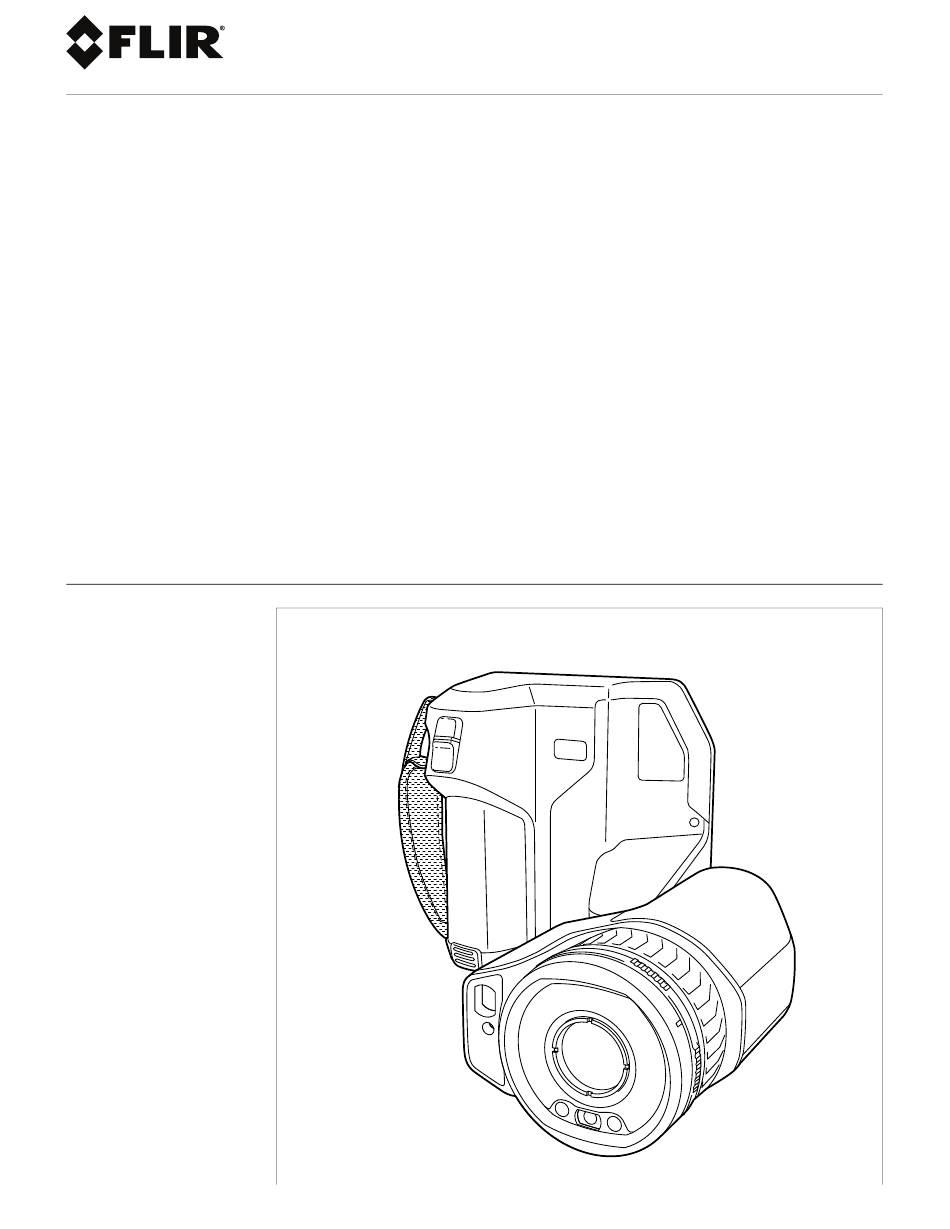

  • Page 1 User’s manual FLIR T5xx series GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 2 Important note Before operating the device, you must read, understand, and follow all instructions, warnings, cautions, and legal disclaimers. Důležitá poznámka Před použitím zařízení si přečtěte veškeré pokyny, upozornění, varování a vyvázání se ze záruky, ujistěte se, že jim rozumíte, a řiďte se jimi.
  • Page 3: Table Of Contents

    Table of contents Disclaimers ..................1 Legal disclaimer ............... 1 U.S. Government Regulations............1 Patents ................... 1 Quality assurance ..............1 Third-party licenses..............1 Usage statistics ................ 1 Copyright ................1 Safety information ................2 Notice to user ...................6 Online documentation..............6 Register your camera..............
  • Page 4 Displaying the image information ..........40 Zooming an image ..............40 Deleting images ..............40 Resetting the image counter............41 Cloud connectivity................42 Uploading to FLIR Ignite ............42 Connecting to internet.............. 42 9.2.1 Connecting to Wi-Fi ............42 9.2.2 Connecting via Bluetooth ..........
  • Page 5 Table of contents Working with the image archive............45 10.1 General ................45 10.1.1 Managing folders via soft button ........45 10.2 Opening image and video files ........... 45 10.3 Creating a new folder............... 45 10.4 Renaming a folder..............46 10.5 Changing the active folder ............
  • Page 6 17.3 Playing a saved video clip ............75 Inspection Route ................76 18.1 General ................76 18.1.1 FLIR Inspection Route Solution user manual ...... 76 18.2 User interface ................ 76 18.2.1 Drop-down menu ............77 18.2.2 Inspection list .............. 77 18.3...
  • Page 7 27.1 Introduction ................. 102 27.2 Definition—what is calibration? ..........102 27.3 Camera calibration at FLIR Systems ......... 102 27.4 The differences between a calibration performed by a user and that performed directly at FLIR Systems........103 27.5 Calibration, verification and adjustment........103 27.6...
  • Page 8: Disclaimers

    1.7 Copyright © 2022 FLIR Systems, Inc. All rights reserved worldwide. No parts of the software in- cluding source code may be reproduced, transmitted, transcribed or translated into any language or computer language in any form or by any means, electronic, magnetic, opti- cal, manual or otherwise, without the prior written permission of FLIR Systems.
  • Page 9: Safety Information

    WARNING Applicability: Digital devices subject to 15.21. NOTICE: Changes or modifications made to this equipment not expressly approved by FLIR Systems may void the FCC authorization to operate this equipment. WARNING Applicability: Digital devices subject to 2.1091/2.1093/KDB 447498/RSS-102.
  • Page 10 High temperatures can cause damage to the camera. CAUTION Do not attach the batteries directly to a car’s cigarette lighter socket, unless FLIR Systems supplies a specific adapter to connect the batteries to a cigarette lighter socket. Damage to the batteries can occur.
  • Page 11 Safety information CAUTION Do not put the battery on or near fires, stoves, or other high-temperature locations. Damage to the bat- tery and injury to persons can occur. CAUTION Do not solder directly onto the battery. Damage to the battery can occur. CAUTION Do not use the battery if, when you use, charge, or put the battery in storage, there is an unusual smell from the battery, the battery feels hot, changes color, changes shape, or is in an unusual condition.
  • Page 12 Safety information CAUTION Applicability: Camera with IR lens f=70 mm (6°) When you hold the camera, make sure that you support the lens with your hand. The lens is heavy and the joint between the optics and camera housings is not strong enough to hold the lens. Note The encapsulation rating is only applicable when all the openings on the camera are sealed with their correct covers, hatches, or caps.
  • Page 13: Notice To User

    Register your camera to receive an extended warranty and other related benefits. To register the camera, go to To access the registration form, you must log in to your FLIR account or sign up for a new account. You will also need the serial number of your camera. The serial number is displayed by the registration wizard in the camera.
  • Page 14: Note About Authoritative Versions

    Notice to user This means that this manual may contain descriptions and explanations that do not apply to your particular camera model. 3.7 Note about authoritative versions The authoritative version of this publication is English. In the event of divergences due to translation errors, the English text has precedence.
  • Page 15: Customer Help

    • The communication protocol, or method, between the camera and your device (e.g., SD card reader, HDMI, Ethernet, USB, or FireWire). • Device type (PC/Mac/iPhone/iPad/Android device, etc.). • Version of any programs from FLIR Systems. • Full name, publication number, and revision number of the manual. 4.3 Downloads...
  • Page 16: Quick Start Guide

    You can also set up the camera to upload images for storage online. To enable up- load of images, you need to connect the camera to the internet and pair the camera with a FLIR Ignite account. Use a computer or other device with internet access and follow the instructions on the camera screen.
  • Page 17 Quick start guide • Correctly analyzing an infrared image requires professional knowledge about the application. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 18: Camera Overview

    Camera overview 6.1 View from the rear 1. Focus ring. 2. Speaker. 3. Programmable button. 4. Image archive button. 5. Navigation pad with center push. 6. Back button. 7. On/off button. 8. Hand strap. 9. Multi-touch LCD screen. 10. Light sensor. 11.
  • Page 19: View From The Front

    Camera overview 6.2 View from the front 1. Autofocus button. 2. Save button. 3. Attachment point for the neck strap. 4. Laser receiver. 5. Laser transmitter. 6. Camera lamp (left and right sides). 7. Infrared lens. 8. Digital camera. GlobalTestSupply www.
  • Page 20: View From The Bottom

    Camera overview 6.3 View from the bottom 1. Laser button. 2. Programmable button. 3. Tripod mount. 4. Cover for the connector compartment. 5. Battery. 6.4 Laser distance meter and laser pointer The laser distance meter consists of a laser transmitter and a laser receiver. The laser transmitter also works as a laser pointer.
  • Page 21: Laser Warning Label

    Camera overview 6.4.3 Laser warning label A laser warning label with the following information is attached to the camera: 6.4.4 Laser rules and regulations Wavelength: 650 nm. Maximum output power: 1 mW. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.
  • Page 22: Menu System

    Camera overview 6.5.2 Menu system To display the menu system, push the navigation pad or tap the menu system button 1. Recording mode button. 2. Measurement parameters button. 3. Image mode button. 4. Measurement button. 5. Color button. 6. Settings button. 7.
  • Page 23: Status Icons And Indicators

    If the icon is grey, the camera cannot find a GPS signal. External infrared window compensation is enabled. The camera is paired with a FLIR Ignite account. The camera is paired, but does not have contact with FLIR Ignite (no internet connection). A Bluetooth headset is connected.
  • Page 24: Image Overlay Information

    5. Ignite upload button: Touch to enable/disable automatic upload of images and videos. See also section 9.5 Automatic upload, page 43. Note If the camera is not paired with a FLIR Ignite account, you will be prompted to sign in to FLIR Ignite before you can enable automatic upload.
  • Page 25: Navigating Using The Navigation Pad

    Camera overview 6.6.1 Navigating using the navigation pad You navigate the menu system by using the navigation pad and the back button: • To display the menu system, push the center of the navigation pad. • To navigate in menus, submenus, and dialog boxes, and to change values in dialog boxes, push the navigation pad up/down or left/right.
  • Page 26: Handling The Camera

    Handling the camera 7.1 Charging the battery 7.1.1 General • Before starting the camera for the first time, charge the battery for 3 hours using the stand-alone battery charger. • Select a mains socket that is near the equipment and easily accessible. 7.1.2 Using the stand-alone battery charger to charge the battery 1.
  • Page 27: Charging The Battery Using A Usb Cable Connected To A Computer

    Handling the camera 7.1.4 Charging the battery using a USB cable connected to a computer 1. Open the cover for the connector compartment at the bottom of the camera. 2. Connect a USB cable to the USB-C connector in the connector bay. Connect the oth- er end of the USB cable to the computer.
  • Page 28: Turning On And Turning Off The Camera

    Handling the camera 2. Push the two release buttons and remove the battery from the camera. 7.3 Turning on and turning off the camera • To turn on the camera, push the on/off button • To turn off the camera, push and hold the on/off button for more than 0.5 second.
  • Page 29: Autofocus

    Handling the camera Note Do not touch the lens surface when you adjust the focus. If this happens, clean the lens according to the instructions in 24.2 Infrared lens. 7.4.2 Autofocus To autofocus the camera, push the Autofocus button. Note You can also assign the autofocus function to one of the programmable buttons. For more information, see section 7.11 Programmable buttons.
  • Page 30: Continuous Autofocus

    Handling the camera WARNING When the camera is set to autofocusing with the laser method, do not point the camera at the face of a person when you use the autofocus function. The laser beam can cause eye irritation. Note For large lenses that cover the laser transmitter and receiver, the laser functional- ity is disabled.
  • Page 31: A Note About Ergonomics

    Handling the camera 7.6 A note about ergonomics To prevent strain-related injuries, it is important that you hold the camera ergonomically correctly. This section gives advice and examples on how to hold the camera. Note • Always tilt the LCD screen to suit your work position. •...
  • Page 32: Procedure

    Handling the camera Note • The laser is enabled by a setting. Select (Settings) > Device settings > Lamp & la- ser > Enable lamp & laser. • The symbol is displayed on the screen when the laser is on. •...
  • Page 33: Connecting External Devices And Storage Media

    7.9.1 Related topics You can also connect the camera to FLIR Ignite for online storage of images and videos, see section 9 Cloud connectivity, page 42. 7.10 Moving files via USB cable When you save an image or video clip in the image archive of the camera, the file is stored on the memory card.
  • Page 34: Related Topics

    Note Moving a file using a drag-and-drop operation does not delete the file in the camera. • Import the images into a FLIR Thermography software. Note When closing the cover for the connector compartment, firmly press along the edges of the cover to make sure that it closes tightly.
  • Page 35: Programmable Button Options

    Handling the camera You can assign different functions to the programmable buttons. You can, for example, use a programmable button to easily switch between two settings you use often. You can also choose to define two different setups for saving and previewing: the usual setup for the Save button (which is defined by the Save options and storage settings, see section 23.4 Save options &...
  • Page 36: Using The Camera Lamp As A Flash

    Handling the camera • Preview + Prompt for voice annotation: Display a preview image and the voice annota- tion tool. • Preview + Prompt for sketch: Display a preview image and the sketch annotation tool. • Preview + Select annotation from menu: Display a preview image and the annotation tool menu.
  • Page 37 Handling the camera Follow this procedure: 1. Take a firm grip around the inner ring of the lens. Rotate the inner ring 30° counter- clockwise until it stops. 2. Carefully pull out the lens. 3. The infrared detector is now fully exposed. Do not touch this surface. If you see dust on the detector, follow the instructions in 24.3 Infrared detector.
  • Page 38 Handling the camera 4. Make sure that the inner ring of the camera lens is fully in its open position. • Correct: The tooth (1) is in its end position at the black stop pin (2). • Wrong: You must rotate the inner ring until the tooth (1) reaches the black stop pin (2).
  • Page 39: Calibrating The Lens-Camera Combination

    Before a new lens can be used with the camera, the lens–camera combination must be calibrated. This is a process that previously had to be performed by a FLIR service department, but for the FLIR T5xx series the calibration can be performed by the user. This feature is called AutoCal.
  • Page 40: Autocal Procedure

    Handling the camera 7.15.2 AutoCal procedure 1. Dip the calibration target in water for 1 second and let the excess drip off. 2. Tape or hang the calibration target on a wall. 3. Mount the new lens on the camera according to the procedure in section 7.14 Changing camera lenses.
  • Page 41 Handling the camera 4. From a distance of 2 m (6.6 ft.), aim the camera toward the crosshair, using the laser pointer. The camera will take a picture automatically. Note Make sure the camera’s optical path is perpendicular to the calibration target. See the image below.
  • Page 42: Neck Strap

    Handling the camera 7.16 Neck strap To attach the neck strap to the camera, use the two attachment points indicated in the figure. 7.17 Hand strap To replace the hand strap, follow this procedure: 1. Remove the battery. 2. Open the hook-and-loop fastener and remove the hand strap from the upper attach- ment point.
  • Page 43 Handling the camera 5. Put the new hand strap into the bracket at the base of the camera. 6. Push the bracket into the camera. Make sure that the two holes in the hand strap are aligned with the holes in the bracket. 7.
  • Page 44: Saving And Working With Images

    The image *.jpg file is fully radiometric and saved lossless, which enables full post-proc- essing in image analysis and reporting software from FLIR Systems. There is also a reg- ular *.jpg component (lossy) for convenient viewing in non-FLIR Systems software (e.g., Microsoft Explorer).
  • Page 45: Saving An Image

    UltraMax image. Some FLIR Thermography software has the ability to process UltraMax images. Other FLIR software will treat the image as a regular image.
  • Page 46: Opening A Saved Image

    Saving and working with images 4. Do one of the following: • To save the image, push the Save button. • To exit preview mode without saving, push the back button 8.4 Opening a saved image When you save an image, the image file is stored on the memory card. To display the im- age again, open it from the image archive (Gallery).
  • Page 47: Related Topics

    Saving and working with images 8. Push the navigation pad. This displays a context menu. • Select (Cancel) to exit edit mode. • Select (Measurement parameters) to change the global parameters. • Select (Image mode) to change the image mode. •...
  • Page 48: Resetting The Image Counter

    Saving and working with images 8.9 Resetting the image counter You can reset the numbering of the image filenames. Note To prevent image files being overwritten, the new counter value will be based on the highest existing filename number in the image archive. To ensure that the counter is reset to 0001, insert an empty memory card before resetting the counter.
  • Page 49: Cloud Connectivity

    FLIR Ignite is a cloud storage service for thermal images. Upload images from your cam- era and your data will be instantly available across all your devices. With FLIR Ignite you can edit images and create basic reports. You can also share images with colleagues and clients and invite team members to work in the same folder and files.
  • Page 50: Creating A Flir Ignite Account

    6. Sign in to your FLIR Ignite account. 9.5 Automatic upload You can set up the camera to automatically upload images and videos to your FLIR Ignite account. When automatic upload is enabled, new images and videos will automatically be up- loaded when the camera is connected to the internet and paired with FLIR Ignite.
  • Page 51: Uploading Folders

    6. On the right toolbar, select the icon. 9.7 Accessing FLIR Ignite You can access FLIR Ignite from a browser on your desktop, tablet, or mobile device. To access FLIR Ignite, go to For more information, refer to the FLIR Ignite user manual.
  • Page 52: Working With The Image Archive

    Working with the image archive 10.1 General When you save an image or video clip, the camera stores the image/video file in the im- age archive on the memory card. You can open an image in the image archive and, for example, select another image mode, apply color alarms, and add measurement tools.
  • Page 53: Renaming A Folder

    6. Select the destination folder for the selected items and push the navigation pad. 10.7 Uploading files and folders You can manually upload images, videos, and folders to your FLIR Ignite account when the camera is connected to the internet. For more information, see section 9.6 Manual upload.
  • Page 54: Deleting A Folder

    Working with the image archive 10.8 Deleting a folder You can delete a folder in the archive. The active folder cannot be deleted. 1. Push the image archive button . This displays the Gallery. 2. On the top toolbar, select the icon and push the navigation pad.
  • Page 55: Achieving A Good Image

    Achieving a good image 11.1 General A good image depends on several different functions and settings, although some func- tions and settings affect the image more than others. These are the functions and settings that you need to experiment with: •...
  • Page 56 Achieving a good image In automatic mode, the camera continuously adjusts the level and span for the best im- age presentation. The colors are distributed based on the thermal content of the image (histogram color distribution). The temperature scale to the right of the screen shows the upper and lower temperatures of the current span.
  • Page 57: Auto Adjustment Region

    Achieving a good image Automatic Manual 11.3.2 Auto adjustment region When you auto-adjust a thermal image, you adjust it for the best image brightness and contrast. This means that the color information is distributed over the existing tempera- tures of the image. In some situations, the image may contain very hot or very cold areas outside your area of interest.
  • Page 58: Manual Adjustment By Using The Navigation Pad

    Achieving a good image 2. To simultaneously change the temperature scale minimum and maximum limits, place your finger on the screen and move it up/down. 3. To change the minimum limit or the maximum limit, do the following: • Touch the maximum or minimum temperature that you want to change. •...
  • Page 59: Manual Adjustment In Level, Span Mode

    Achieving a good image 11.3.5 Manual adjustment in Level, Span mode Note This procedure assumes that you have configured the camera for manual image adjustments in Level, Span mode. Select Settings > Device settings > User interface op- tions > Manual adjustment mode = Level, Span. Follow this procedure: 1.
  • Page 60 Achieving a good image This table explains the different types of color palettes. Iron Arctic Rainbow Rainbow high contrast White hot Black hot Lava Follow this procedure: 1. Push the navigation pad to display the menu system. 2. Select (Color) and push the navigation pad. This displays a submenu. 3.
  • Page 61: Changing The Measurement Parameters

    Achieving a good image 4. Push the navigation pad to confirm and exit the menu mode. 11.6 Changing the measurement parameters For accurate measurements, it is important to set the measurement parameters: • Emissivity. • Reflected temperature. • Object distance. •...
  • Page 62 Achieving a good image You can hide all camera overlay by touching the soft button Note You can also assign the function Hide image overlay graphics to one of the pro- grammable buttons. For more information, see section 7.11 Programmable buttons. Image with camera overlay and image overlay Image with all overlay hidden.
  • Page 63: Working With Image Modes

    • For the Thermal MSX, Thermal, and Picture in picture image modes, all thermal and visual information is stored when an image is saved. This means that you can edit the image later, in the image archive or in a FLIR Thermography software, and select any of the image modes.
  • Page 64: Selecting An Image Mode

    Working with image modes Thermal MSX Thermal Digital camera Picture in picture Macro 12.3 Selecting an image mode Follow this procedure: 1. Push the navigation pad to display the menu system. 2. Select (Image mode) and push the navigation pad. This displays a submenu. GlobalTestSupply www.
  • Page 65 Working with image modes 3. Use the navigation pad to select one of the following: • (Thermal MSX). • (Thermal). • (Picture in picture). • (Digital camera). • (Macro). Note • If the *.csq video format is selected (Settings > Save options & storage > Video compression) and the recording mode Video is selected, it will only be possible to select the image modes Thermal and Macro.
  • Page 66: Working With Measurement Tools

    Working with measurement tools 13.1 General To measure a temperature, you can use one or more measurement tools, e.g., a spot- meter or a box. 13.2 Adding/removing measurement tools Follow this procedure: 1. Push the navigation pad to display the menu system. 2.
  • Page 67: Moving And Resizing A Measurement Tool

    Working with measurement tools 4. Push and hold the center of the navigation pad. This displays the Edit user preset menu. 5. Select (Add measurement) and push the navigation pad. This displays a submenu. 6. Use the navigation pad to select one of the following: •...
  • Page 68: Moving And Resizing A Box, Circle, Or Line Tool

    Working with measurement tools 13.4.3 Moving and resizing a box, circle, or line tool Note You can also move and resize the measurement tool by touching the screen. Follow this procedure: 1. To select the measurement tool, touch the tool on the screen. The tool is now dis- played with one or more handles.
  • Page 69: Recommended Values

    Working with measurement tools Note There is an Emissivity mode setting, which you can use to enter the emissivity by material instead of by value. Select (Settings) > Device settings > User inter- face options > Emissivity mode > Select from materials table. Emissivity is the most important measurement parameter to set correctly.
  • Page 70: Displaying Values In The Result Table

    Working with measurement tools A P next to the measurement tool on the screen indicates that local parameters have been activated for the tool. Follow this procedure: 1. To select the measurement tool, touch the tool on the screen. The tool is now dis- played with one or more handles.
  • Page 71: Displaying A Graph

    Working with measurement tools 13.7 Displaying a graph For the line tool, you can set the camera to display a graph. Note You can display a graph when previewing an image, when defining user presets, or when editing an image in the archive. Follow this procedure: 1.
  • Page 72: Alarm Signals

    Working with measurement tools • Above: Triggers an alarm when the temperature is above the preset alarm temperature. • Below: Triggers an alarm when the temperature is below the preset alarm temperature. 13.9.3 Alarm signals When an alarm is set, the symbol is displayed in the result table.
  • Page 73 Working with measurement tools 13.9.4.3 Setting up an alarm for a difference calculation Note • You can set up an alarm for a difference calculation when defining user presets, or when editing an image in the archive. • This procedure assumes that you have previously set up a difference calculation. To set up an alarm for a difference calculation, do the following: 1.
  • Page 74: Working With Color Alarms And Isotherms

    Working with color alarms and isotherms 14.1 Color alarms By using color alarms (isotherms), anomalies can easily be discovered in an infrared im- age. The isotherm command applies a contrasting color to all pixels with a temperature above, below, or between the set temperature levels. The camera also features isotherm types that are specific to the building trade: condensation and insulation alarms.
  • Page 75: Setting Up Above, Below, And Interval Alarms

    Working with color alarms and isotherms 14.1.1 Setting up above, below, and interval alarms 1. Push the navigation pad to display the menu system. 2. Select (Color) and push the navigation pad. This displays a submenu. 3. Use the navigation pad to select one of the following: •...
  • Page 76 Working with color alarms and isotherms 4. Push the navigation pad. This displays a dialog box where you can define the settings for the alarm. For the Condensation alarm, the following parameters can be set: • Atmospheric temperature: The current atmospheric temperature. •...
  • Page 77: Annotating Images

    Annotations are added to the image file and can be viewed and edited in the camera or in a FLIR Thermography software. • You can set the camera to display annotation tools when an image is saved. Select (Settings) >...
  • Page 78: Creating A Text Comment Table Template

    FLIR Thermography software. 15.3.1.1 Manually creating a table template A text comment file (*.tcf) is an annotation format that is proprietary to FLIR Systems. It defines a table structure that can be used to add text table annotations to FLIR images.
  • Page 79: Adding A Voice Annotation

    A voice annotation is an audio recording that is saved to the infrared image file. The re- cording can be played back in the camera, and in image analysis and reporting software from FLIR Systems. The voice annotation is recorded using the built-in microphone. You can also use a Blue- tooth-enabled headset.
  • Page 80 Annotating images 6. (Optional step.) Push the navigation pad. This displays a context menu. Do one or more of the following: • To change the color of the sketch tools, select (Draw) and push the navigation pad. Select the color and push the navigation pad. •...
  • Page 81: Programming The Camera (Time-Lapse)

    Programming the camera (time- lapse) You can program the camera to save images periodically (time-lapse). Follow this procedure: 1. Push the navigation pad to display the menu system. 2. Select (Recording mode) and push the navigation pad. This displays a submenu. 3.
  • Page 82: Recording Video Clips

    • Radiometric storage (*csq): A *.csq file supports full radiometry but is only supported by FLIR Systems software. The file does not include any visual image information. With this setting, only the image modes Thermal and Macro are supported when re- cording video.
  • Page 83: Inspection Route

    1. Prepare the inspection route file, using one of the following methods: • The FLIR Thermal Studio application. • Your own solution. The FLIR Thermal SDK can be used to build your own export/ import software or to interface your existing asset management system.
  • Page 84: Drop-Down Menu

    Inspection Route The Inspection Route overlay consists of the following parts: • Back arrow Tap to go to the previous inspection point. • Current point indicator ◦ Displays the name of the current inspection point. ◦ Displays an image icon if there is an image saved for the inspection point. ◦...
  • Page 85: Performing An Inspection

    Inspection Route Figure 18.1 Figure 18.1 shows an example of the inspection list: • The first inspection route is completed and locked, which is indicated by the check mark to the right. • The second inspection route has started. It includes a total of 91 inspection points, and one of them has been inspected.
  • Page 86: Capturing Inspection Data

    Inspection Route 4. Activate the Inspection Route function by selecting (Settings) > Save options & storage > Inspection route, and then toggle the Inspection route switch. 5. The camera is now ready. 18.3.2 Capturing inspection data Once the camera is prepared, the inspection can start. Note You can turn off the camera in the middle of an inspection.
  • Page 87: Editing Inspection Point Data

    Inspection Route 8. When you have completed the inspection, transfer the inspection results to a com- puter for post-processing. For more information, see section 18.3.9 Transferring in- spection results. 18.3.3 Editing inspection point data You can edit the data for the inspection point displayed by the current point indicator. To go to another inspection point, use the back or next arrow or select the inspection point from the inspection list, see section 18.3.7 Inspection list.
  • Page 88: Inspection List

    • The DCIM folder includes folders with the images for each route. You can upload the inspection results to your FLIR Ignite account or transfer the result files manually using the USB cable or the memory card. You can also open the results from the memory card and save them to a computer using FLIR Thermal Studio.
  • Page 89: Configuration

    Inspection Route 18.3.9.2 Move results manually If you transfer the inspection results manually to a computer, you must move both the in- spection route file (.xml) and the images in their route folders. It is important to maintain the DCIM folder structure. 1.
  • Page 90: Creating An Inspection Route

    The inspection route file can be created using one of the following methods: • The FLIR Thermal Studio application. • Your own solution. The FLIR Thermal SDK can be used to build your own export/im- port software or to interface your existing asset management system.
  • Page 91 Inspection Route 3. Select one of the following: • Create an example Inspection route: This creates an example XML file with a mul- ti-level structure on the memory card. • Create an empty Inspection route: This creates a basic XML file on the memory card.
  • Page 92: Screening Alarm

    Screening alarm The screening alarm can be used to detect temperature anomalies in a series of in- spected objects in a similar/fixed setup. 19.1 General The basics of the screening alarm is to first build up a base of reference temperature samples.
  • Page 93: Record Reference Samples

    Screening alarm 19.2.2 Record reference samples Before the screening can start, you must record reference samples. These are used to calculate the reference temperature average. You record the reference samples by screening 10 inspection objects. Make sure these objects have a normal temperature. 1.
  • Page 94: Configuring Wi-Fi

    Configuring Wi-Fi Depending on your camera configuration, you can connect the camera to a wireless local area network (WLAN) using Wi-Fi, or let the camera provide Wi-Fi access to other devices. You can connect the camera in two different ways: •...
  • Page 95: Pairing Bluetooth Devices

    • You can remove a device by selecting the device and then selecting Unpair device. • After adding a METERLiNK device, such as the FLIR MR77 or FLIR DM93, the result from the meter will be visible in the result table and stored with the images. For more information, see section 22 Fetching data from external FLIR meters.
  • Page 96: Fetching Data From External Flir Meters

    The live value is displayed with a dotted outline. If the screen display for values is full, it is still possible to add more values from the FLIR meter. Added values are then indicated by a box with a number that counts up each time a new value is added.
  • Page 97: Typical Moisture Measurement And Documentation Procedure

    Fetching data from external FLIR meters 22.4 Typical moisture measurement and documentation procedure The following procedure can form the basis for other procedures using FLIR meters and infrared cameras. 1. Use the infrared camera to identify any potential damp areas behind walls and ceilings.
  • Page 98: Camera Settings

    • Save options & storage. • Device settings. 23.1 FLIR Ignite Select FLIR Ignite and follow the on-screen instructions to sign in to your FLIR Ignite account. After sign in, the following is displayed: • The FLIR Ignite user account that the camera is paired with.
  • Page 99: Save Options & Storage

    ◦ Radiometric storage (*.csq): A CSQ file supports full radiometry but is only sup- ported by FLIR Systems software. The file does not include any visual image infor- mation. With this setting, only the image modes Thermal and Macro are supported when recording video.
  • Page 100: Device Settings

    Camera settings • Delete all saved files...: This displays a dialog box where you can choose to perma- nently delete all the saved files (images and videos) from the memory card or to can- cel the delete action. 23.5 Device settings •...
  • Page 101 Camera settings ◦ Disable all: This setting is used to disable the camera lamp, laser, and flash function. • Auto power off: This setting defines how soon the camera is automatically turned off. • User interface options: This submenu includes the following settings: ◦...
  • Page 102: Cleaning The Camera

    Cleaning the camera 24.1 Camera housing, cables, and other items Use one of these liquids: • Warm water • A weak detergent solution Equipment: • A soft cloth Follow this procedure: 1. Soak the cloth in the liquid. 2. Twist the cloth to remove excess liquid. 3.
  • Page 103 Cleaning the camera Note • This section only applies to cameras where removing the lens exposes the infrared detector. • In some cases the dust cannot be removed by following this procedure: the infrared detector must be cleaned mechanically. This mechanical cleaning must be carried out by an authorized service partner.
  • Page 104: Mechanical Drawings

    Mechanical drawings [See next page] GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 105 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 106 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 107 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 108: Ce Declaration Of Conformity

    CE Declaration of conformity The full text of the Declaration of conformity is available at the following internet address: GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 109: About Calibration

    27.3 Camera calibration at FLIR Systems Without calibration, an infrared camera would not be able to measure either radiance or temperature. At FLIR Systems, the calibration of uncooled microbolometer cameras with a measurement capability is carried out during both production and service. Cooled cam- eras with photon detectors are often calibrated by the user with special software.
  • Page 110: The Differences Between A Calibration Performed By A User And That Performed Directly At Flir Systems

    The calibration information, no matter if the calibration is done by FLIR Systems or the user, is stored in calibration curves, which are expressed by mathematical functions. As...
  • Page 111: Non-Uniformity Correction

    About calibration Calibration is also a prerequisite for adjustment, which is the set of operations carried out on a measuring system such that the system provides prescribed indications corre- sponding to given values of quantities to be measured, typically obtained from measure- ment standards.
  • Page 112: About Flir Systems

    • Extech Instruments (2007) Figure 28.1 Patent documents from the early 1960s FLIR Systems has three manufacturing plants in the United States (Portland, OR, Boston, MA, Santa Barbara, CA) and one in Sweden (Stockholm). Since 2007 there is also a manufacturing plant in Tallinn, Estonia.
  • Page 113: More Than Just An Infrared Camera

    28.1 More than just an infrared camera At FLIR Systems we recognize that our job is to go beyond just producing the best infra- red camera systems. We are committed to enabling all users of our infrared camera sys- tems to work more productively by providing them with the most powerful camera–...
  • Page 114: Supporting Our Customers

    28.3 Supporting our customers FLIR Systems operates a worldwide service network to keep your camera running at all times. If you discover a problem with your camera, local service centers have all the equipment and expertise to solve it within the shortest possible time.
  • Page 115 Copyright © 2022, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to with any questions.

Table of Contents
