SImx LHT1054 Installation Instructions

MANUAL CONTROL (Override Function)
• When power is first switched on, the PIR detector enters into the "WARM-UP" period for about 1
minute, then automatically switches into AUTO mode.
• Turning the wall switch off and on twice, within 3 seconds, will change from AUTO mode to MANUAL
mode.
• In MANUAL mode, the lamp(s) will remain ON, not affected by duration time and LUX control settings,
after 8 hours, the lamp will change to AUTO mode again.
• To change it back to AUTO mode, prior to this, turn the wall switch off and on twice in about 3 seconds
(the same override used to go from AUTO to MANUAL mode).
• During MANUAL mode or AUTO mode, by switching off the ON/OFF main switch within 6 seconds and
then on again, the PIR detector will reset to WARM-UP period.
PRODUCT COMPLIANCES
AS/NZS 60598.1:2017 AS/NZS 60598.2.1:2014
EN61000.3.3:2013 EN55015.2013
AS/NZS 61347.1:2016 AS/NZS 61058.1:2008
MANUFACTURERS EXTENDED WARRANTY
This product is guaranteed by SIMX Ltd and Ventair Pty Ltd for 3 years from the date of purchase against
faulty materials or workmanship which affects its designed ability to operate. During this period if the
product has a defect of this nature it will be repaired or replaced free of charge by SIMX with the same
item, or a similar one of higher specification.
ON CONDITION THAT:
• The buyer returns it to the seller from whom it was bought, freight paid.
• The product has been bought by the user (ie. a receipt/sales invoice is produced as proof of purchase).
• The product has not been misused or handled carelessly, installed in any way contrary to the
installation instructions, or installed in any unusually exposed or harsh environmental conditions.
This guarantee excludes liability for discolouration and/or delamination of paint or plastic, or any user
serviceable parts. It does not confer any rights other than those expressly set out above and does not
cover any claims for consequential loss or damage.
Our Goods come with guarantees that cannot be excluded under either Australian, or New Zealand,
Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced if
the Goods fail to be of acceptable quality and the failure does not amount to a major failure.
Distributed in New Zealand by Simx Ltd
Ph: +64 9 259 1660 | Technical Support Ph: +64 9 259 1662
e: sales@simx.co.nz | www.simx.co.nz
Specifications are subject to change without notice
AS/NZS CISPR15:2017 EN61000.3.2:2014
EN62031.2015 EN62473.2015
and relevant amendments
Distributed in Australia by Ventair Pty Ltd
4 Capital Place, Carrum Downs, 3201 VIC, AUSTRALIA.
Technical Support: 1300 665 926
e: info@ventair.com.au | www.ventair.com.au | www.simx.com.au
PUB1498 2009

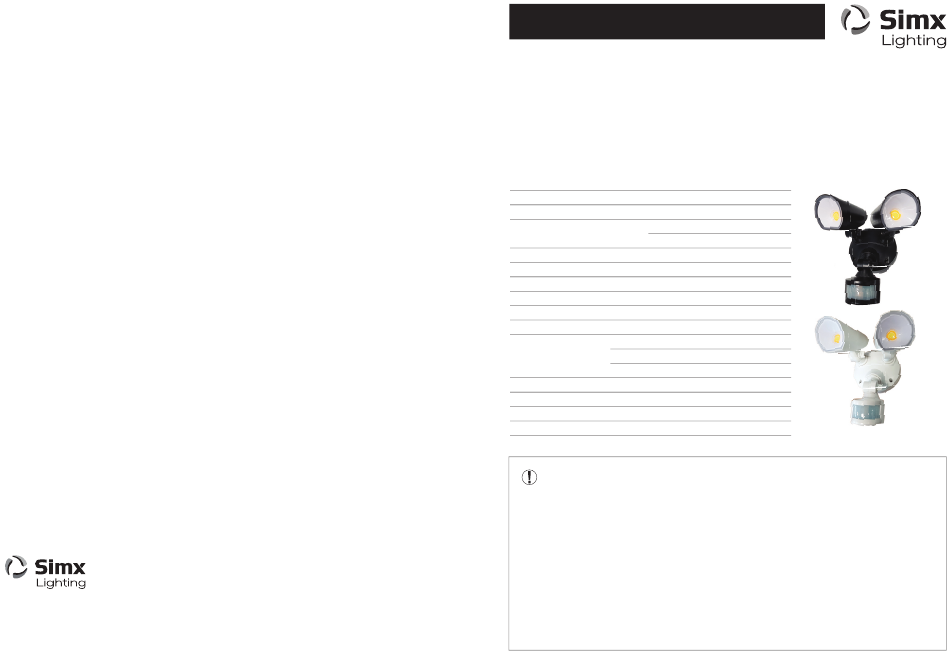

INSTALLATION INSTRUCTIONS
ECOSPOT SELECT
TWIN 10W LED SENSOR LIGHT
LHT1054 BLACK / LHT1055 WHITE
Thank you for purchasing the Simx Lighting EcoSpot Select LED sensor light. This product is suitable for
sheltered exterior locations. It requires a 230V AC power supply to operate and should be installed by a
registered electrician. Please read this manual before installation and retain for future reference.
TECHNICAL SPECIFICATIONS
Power Source 220-240V AC
Detection Range 10m max, 150°
Min: 10 sec ± 5 sec
Time Setting
Max: 4 min ± 1 min
Dusk Control Day to night (adjustable)
PIR Aiming adjustment Pan/tilt
Sensitivity Control Yes
Manual Override Yes
Standby Power <1W (sensor head only)
Rated Load 20W
3000K 1800 lumens
Lumens
4000K 2000 lumens
by Colour Temp
5000K 2000 lumens
IP Rating IP54
Safety Class II
Mounting Ceiling or wall
Construction UV-stabilised polycarbonate
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as
applicable. We strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed in
the circuit for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety. Young
children should be supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval
of the manufacturer, will void any and all stated warranties.
