Cellink BIO X EMD User Manual page 35

04 Getting started
5. Select printhead positions that have been set up. Make sure the EMD Printhead is selected
under the tool type (Figure 19).
6. Enter the desired printing parameters for the printhead (Figure 19) and proceed to the
Layers menu. Parameters necessary for the EMD Printhead include:
• Pressure.
• Print speed.
• Open time.
• Cycle time.

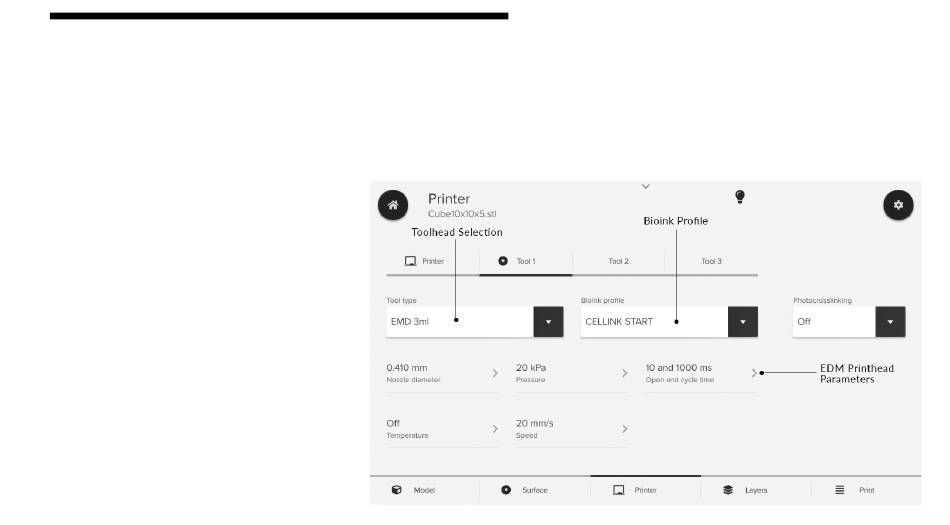

Figure 19: Printing parameters to set on the
Printer menu.
31
