04 Getting started
4.2 Installing, raising, lowering and uninstalling the printhead
1. To install the printhead in the BIO X, stabilize the bottom of the printhead mount with one hand to avoid straining the motor. Align the
printhead above the desired printhead mount and push downward using your opposite hand (Figure 4).
Note: for more information on how to assemble the printhead, see Section 4.3.

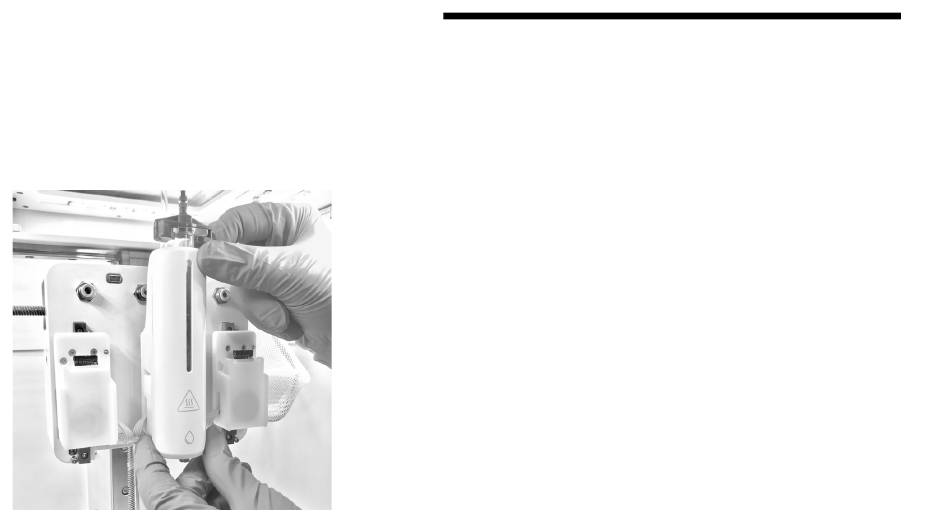

Figure 4: Inserting the EMD Pneumatic Printhead into the BIO X system.
