4.4 Reassembling the printhead

1. Use some force to push the microvalve into the printhead until approximately four millimeters of the valve are protruding (Figure 8 C, D). Do
not apply pressure on the glass end (Section 3.2).
2. Screw the threaded nozzle by turning it clockwise until you feel resistance.
NOTE: It's normal for a few threads to be visible. Do not use excessive force or tools, but ensure the nozzle is tight, as a loose nozzle can
unscrew during printing (Figure 8 A, B, E, F).
A
B
C D E F
04 Getting started

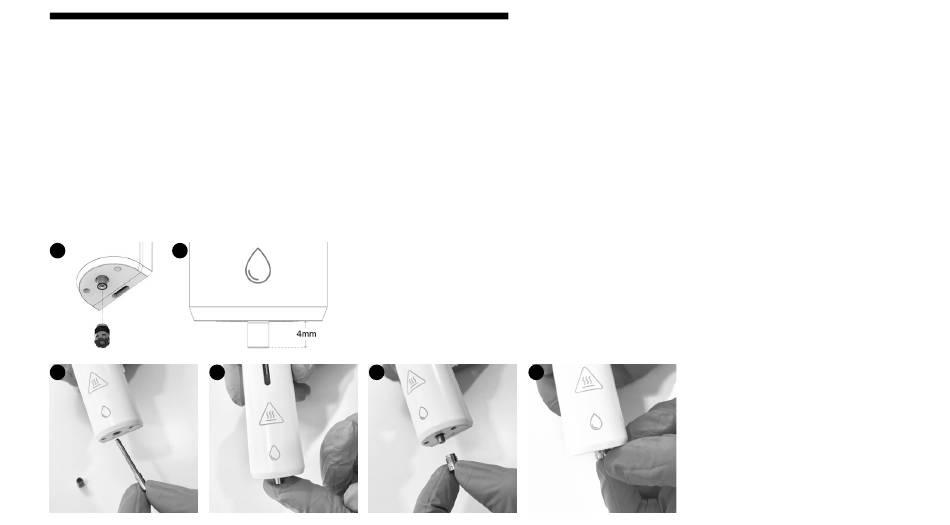

Figure 8: Assembling the EMD Print-
head. (A) Inserting the microvalve into
the EMD Printhead. (B) Gently push
until resistance is felt. (C, E) Align and
tighten the nozzle to the printhead. (D,
F) Tighten the nozzle until approxi-
mately four millimeters of the nozzle
are protruding.
19
