HP ProCurve Switch xl PoE Module Configurations

For the HP ProCurve Switch xl PoE Module to function it must be installed in
an HP ProCurve Switch 5300xl. The module will receive it's operational power
from the switch and it's PoE power from the HP 600 RPS/EPS or an HP 610
EPS.
HP ProCurve Switch
5300xl
HP ProCurve Switch
xl PoE module
HP 600 RPS/EPS

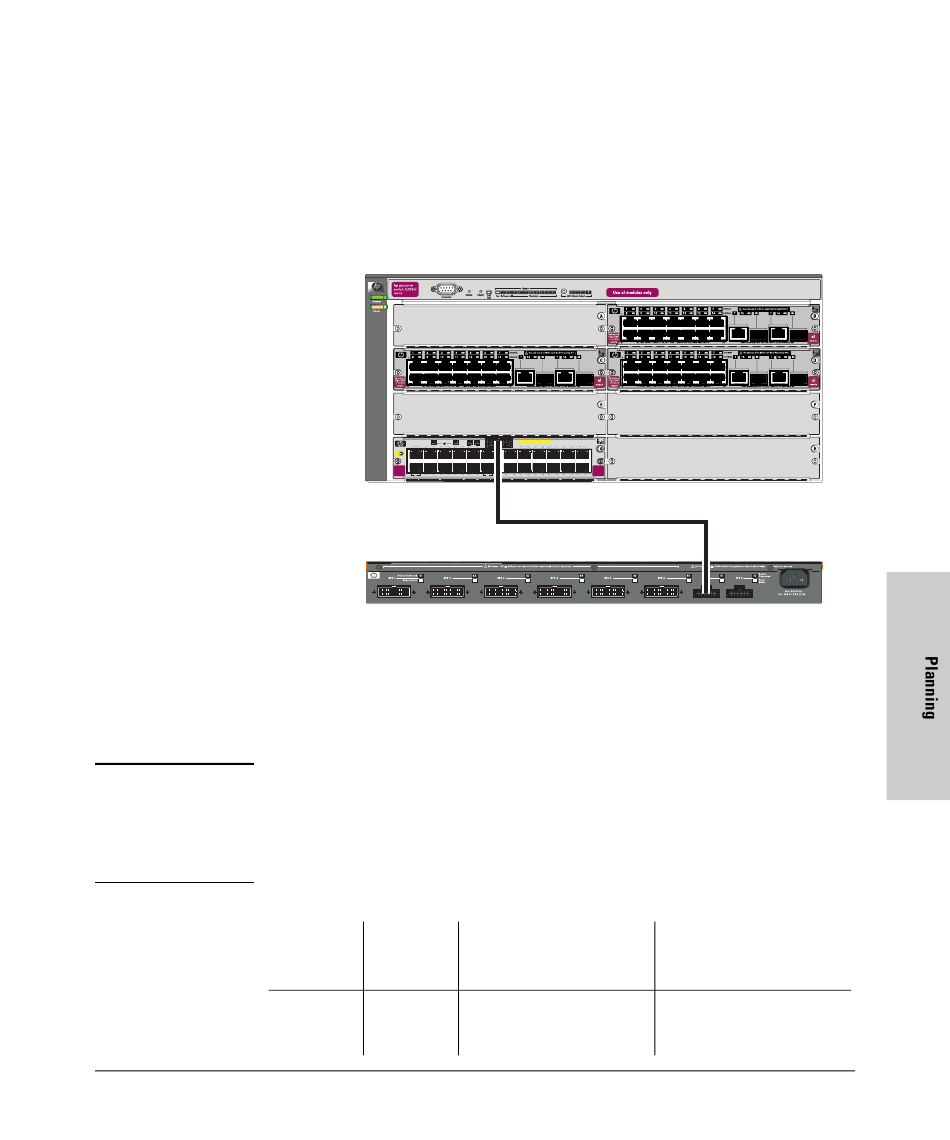

Figure 3-6. Example of an HP 600 RPS/EPS Powering One Module
In this example there is only one module connected to the HP 600 RPS/EPS,
therefore it will be supplied with 408 watts of PoE power to be distributed to
all it's 24 ports at 15.4 watts per port.
N o t e
When planning the installation of the HP ProCurve Switch xl PoE Module you
must pay attention to the cabling. In a rack type installation, the HP 600 RPS/
EPS is installed with the EPS ports in the rear, opposite this graphic. This
means the EPS cable must come from the back of the HP 600 RPS/EPS unit
and connect to the front of the module.
Std LED Mode PoE
Link 1 Mode 2 3
PoE
hp procurve
PoE
xl module
J8161A 7 8 9
Source of Watts
Power Available
External PoE 408
Power
Supply
PoE EPS PoE-Ready 10/100-TX Ports (1-24) – all ports are HP Auto-MDIX
Status
4 5 6 13 14 15 16 17 Link 18 Mode
xl
module
10 11 12 19 20 21 22 23 24
# of Ports Powered and
Average Watts/Port
24 @ average 15.4 W each
Planning
Planning Your PoE Configuration
Redundant # of Ports
Powered and Average Watts/
Port
None
3-9
