The power sockets are on the left side of the rear panel. The rear panel contains six PCIe slots. Slot
1 is used for the external storage RAID controller if the appliance is connected to a storage shelf. The
remaining slots may hold 10 Gb Ethernet NICs or Fibre Channel HBAs, depending on the configuration.
An internal storage RAID controller is installed on the mainboard of the appliance.

NetBackup 5240 Appliance

The NetBackup 5240 Appliance is a hardware and software storage system that can scale to 220 TB
of available backup capacity. It consists of a NetBackup 5240 Appliance and up to four optional
NetBackup 5240 Appliance Storage Shelves. By itself, the 2U NetBackup 5240 Appliance offers
internal data storage from 4TB to 27TBs, depending on the storage configuration you purchase. When
additional storage is required, you can attach up to four 2U storage shelves to the NetBackup 5240
Appliance. Each NetBackup 5240 Appliance Storage Shelf offers 49TBs of backup storage capacity.
Attaching four storage shelves offers 196TBs of storage, in addition to the internal storage that is
available with the NetBackup 5240 Appliance.
SAS-3 cables are used to connect the NetBackup 5240 Appliance to the storage shelves. SAS-3
cables are also used to connect the storage shelves to each other.

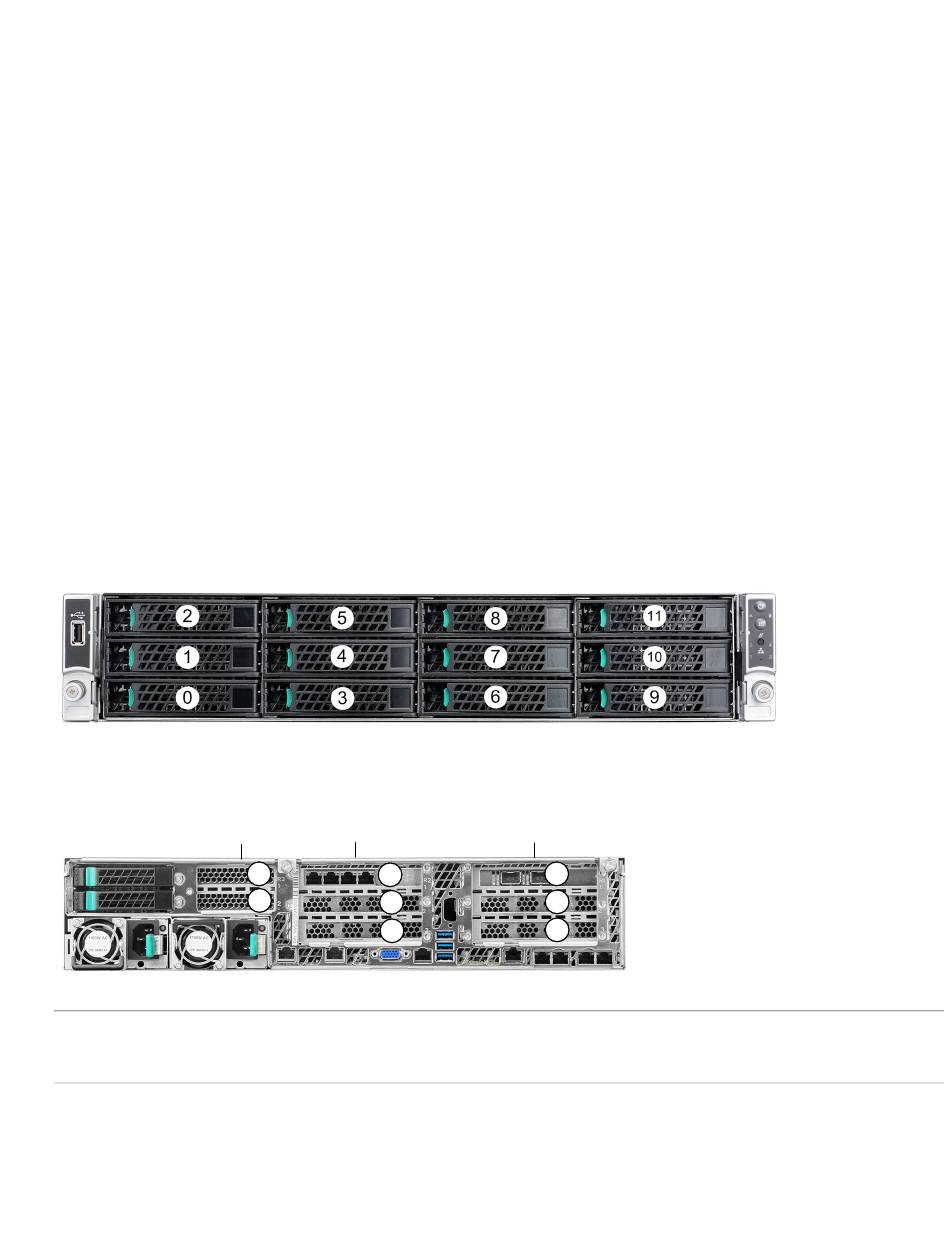

Front view of the NetBackup 5240 Appliance

Figure 3

Rear view of the NetBackup 5240 Appliance

Figure 4
Riser
Assembly 3
Warning: You must also unplug the unit from all AC power sources before you remove the cover. If
the power cords are still connected, internal standby voltages could harm personnel and equipment.
HSP 108 Storage Disk Drive Replacement: NetBackup 5230, 5240 Appliances
Riser
Assembly 2
8
3
7
2
1
Riser
Assembly 1
6
5
4
