Hans Grohe iBox universal Planning And Installation page 26

Technical details and dimension drawings
iBox ® universal, technical information
Operating pressure:
Recommended operating pressure:
Test pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Recommended hot water temperature:
Connection dimensions:
Connections:
Free flow at:
Bath mixer outlet bath:
Bath mixer outlet shower:
Single lever shower mixer:
Thermostat:
Thermostat with shut-off valve:
Thermostat with shut-off/diverter valve:
Highflow thermostat:
Test mark:
iBox ® universal
Outlet 2, e.g. shower (top)
cold
hot
Outlet 1 (bottom)
Extension
25 mm
26
max. 1 MPa
0.1-0.5
1.6
max. 80 °C
65 °C
G ¾
cold right, warm left
0.3
31 l/min
24 l/min
32 l/min
43 l/min
26 l/min
26 l/min
48 l/min
DVGW, SVGW
35x 2
9 x 2

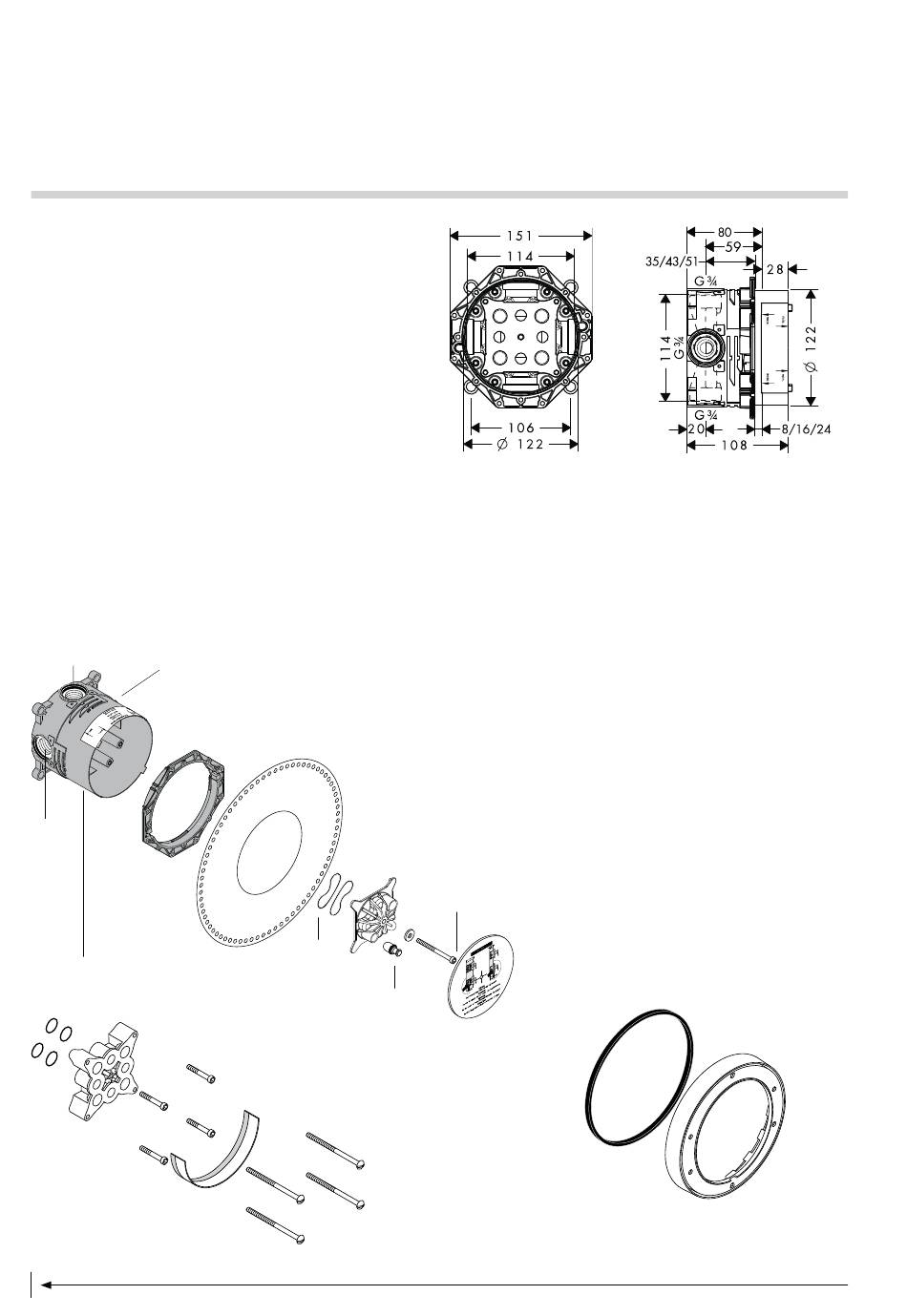

iBox ® universal front and side view
SW 5 mm
Extension 22 mm (for low installation depth)
