Installation tips and information

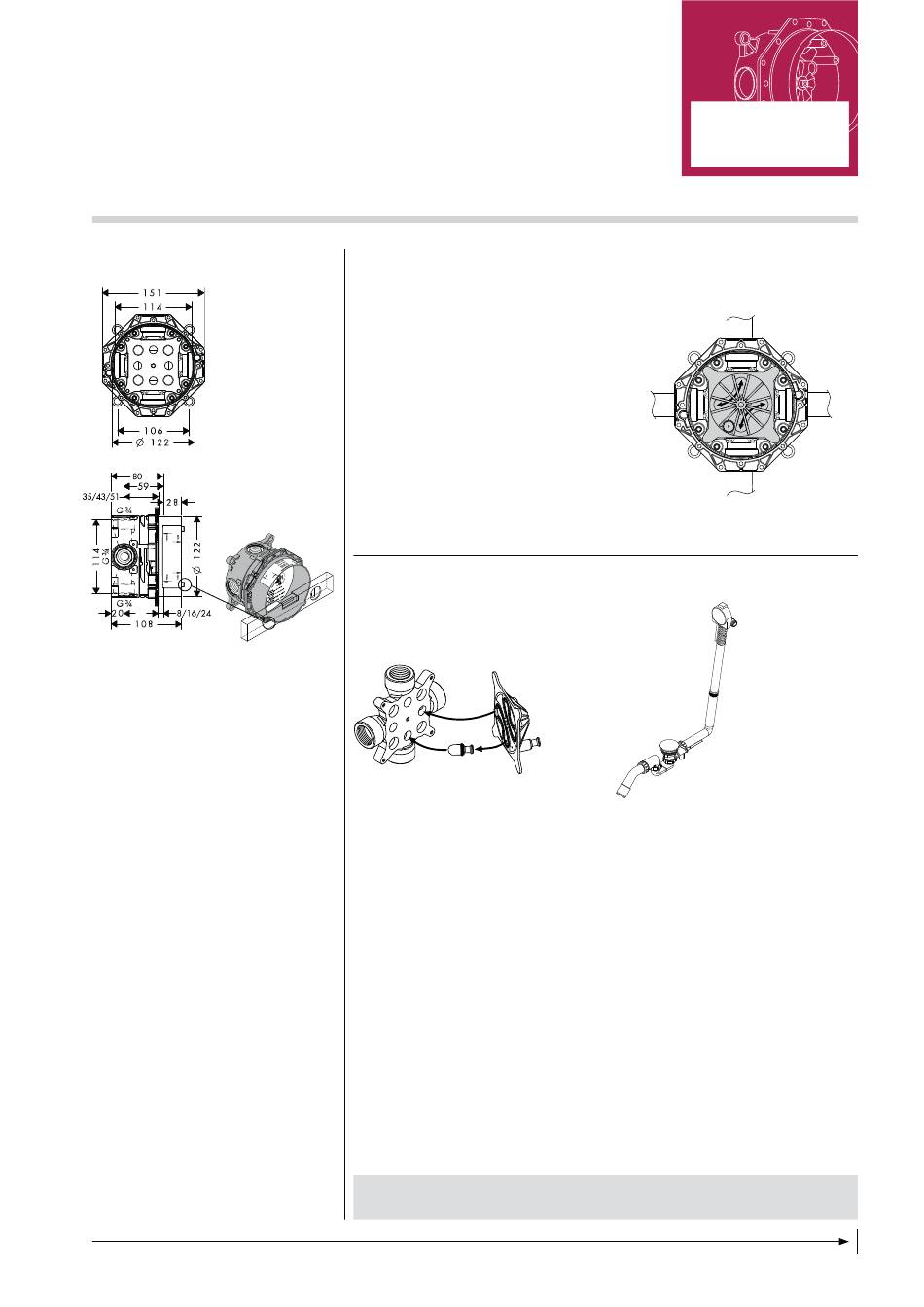

Tips for basic installation
Fit the base unit with the hot water
connection on the left and the cold
water connection on the right.
Installation depth 80 to 108 mm.
Extension set 25 mm for too deep
installation:
# 13595000
Extension set 22 mm for too deep
installation depths:
# 13596000 for escutcheons Ø 170 mm
# 13597000 for escutcheons Ø 150 mm
# 97407000 for escutcheons Ø 172 mm
# 15597000 for PuraVida
# 13593000 for ShowerSelect
The base unit can be fitted in accordance with
the structural conditions. The iBox universal is
suitable for both bath and shower installation.
With single-lever bath mixers, the lower
outlet (outlet 1) has priority. With shower
installations, the outlet that is not required
needs to be stopped with a plug.
The symmetrical-rotation base unit of the iBox
universal can be used horizontally or vertically.
Exception: installation of bath mixers with
safety combinations, where only vertical
installation is possible.
Sinks
Complete installation as per DIN 1988/EN
1717, part 2 sinks. The arrows on the flush
block indicate which inlet is connected to
which outlet line, e.g. cold water with outlet 1
and hot water with outlet 2. If only one outlet
is required, then the flush block needs to be
rotated by 90° after the first flush.
Tips for the bath
(A)
iBox ® universal in combination with
Exafill bath filler with waste system:
switch off water to the Exafill
during the construction stage!
Basic installation:
1. Install iBox universal
2. Lay pipes to Exafill and block (metal plug)
3. Flush and press pipe system
Go to www.hansgrohe.co.uk for the installation instructions.
iBox ® universal
Technical data
Installation tips
Outlet 2
hot
Outlet 1
Place bath:
1. Switch off water
2. Install bath with Exafill and connect to
mains water
3. Flush pipe to Exafill with sample filler necks
and check for leaks
4. Switch off water at floor level
5. Remove flush block
6. Insert plug (A) in outlet for Exafill
7. Fit flush block
8. Switch on water
cold
