Hans Grohe iBox universal Planning And Installation page 18

Installation 3 functions: Select

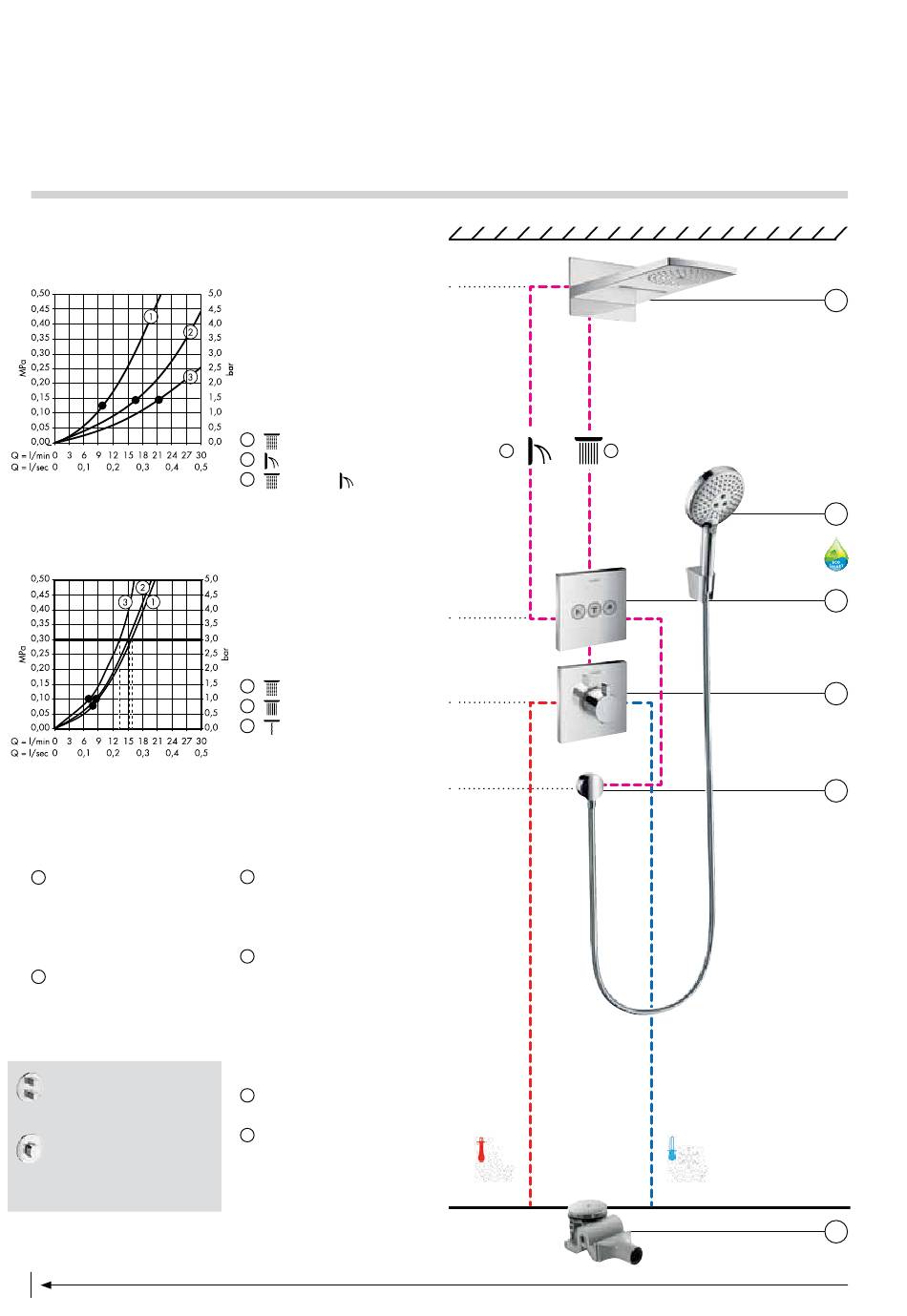

Flow diagram
Overhead shower Raindance Rainfall 2jet
# 28433000
Flow diagram
Hand shower Raindance S 120 3jet
# 26530000
Minimum operating pressure •
Components
Mixer installation
iBox universal
C
# 01800180
ShowerSelect valve for
3 functions
# 15764000
iBox universal
D
# 01800180
ShowerSelect thermostat
# 15760000
Alternative:
Metris iControl
# 31958000
Metris Highflow thermostat
# 31571000
Other alternatives possible.
18
Ceiling
2190 mm
Legend
RainAir
1
Rainflow
2
RainAir + Rainflow
3
1400 mm
Legend
RainAir
1
1200 mm
Rain
2
Whirl
3
1000 mm
Shower installation
Raindance Rainfall 2jet
A
# 28433000
iBox universal
# 01800180
Raindance Select S 120
B
Hand shower
# 26530000
Shower holder Porter S
# 28331000
Shower hose Isiflex
# 28276000
Hose connection FixFit
E
# 27453000
Waste system Raindrain XXL
F
# 60067000
Floor
DN 20 DN 15
(¾") (½")
2 1
DN 20
(¾")
DN 20
(¾")
A
+ iBox universal
B
C
+ iBox universal
D
+ iBox universal
DN 15
(½")
E
DN 20
(¾")
F
