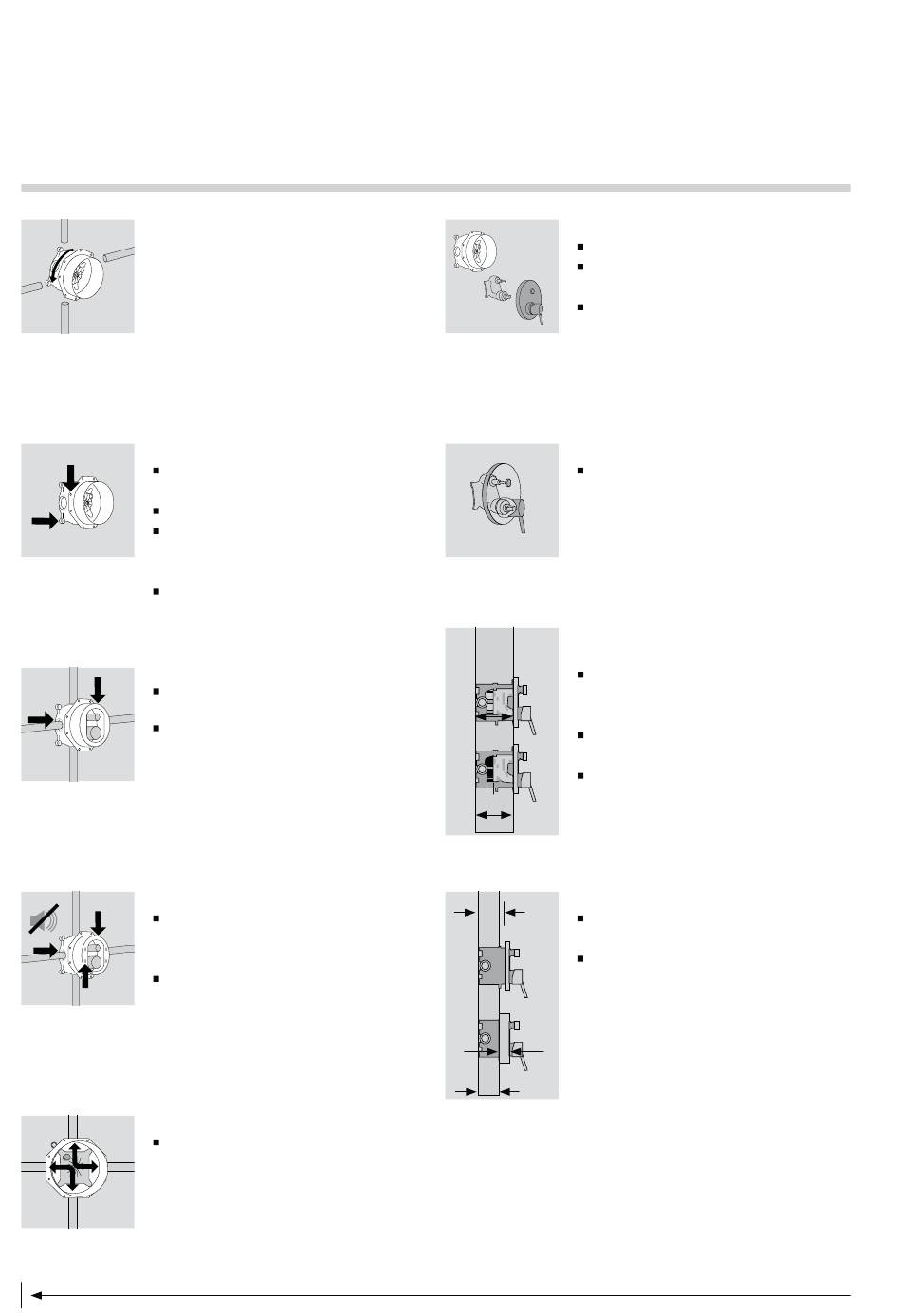

The many advantages of the iBox
Rotationally symmetrical installation
▪
Symmetrical structure; all connections are
equal.
▪
It is important that the cold water is connected
on the right and the hot water on the left.
▪
When used as a bath mixer, the lower
outflow takes priority.
▪
When the iBox universal is used as a shower
mixer, either the upper or lower outflow can
be connected.
Multiple installation options
Coordinated with all current installation systems
and all types of connections and fittings.
Patented flexible adjustment ring.
Mounting options at two levels and G ¾
connections for universal installation
possibilities.
Also suitable for thicker walls and dry wall
installations as well as for pre-fabricated
housing systems.
Excellent protection against humidity
This will protect against splashing water and
moisture coming from any direction.
Seals on all four connections and the supporting
collar.
Low noise level
The brass body rests on seals, preventing
sound from the water-conducting parts from
being transferred through the wall.
The supporting collar is screwed to the iBox
universal housing and not to the function block,
which prevents sound from being transferred
through to the tiles.
Easy rinsing
The rinse block supplied with the iBox universal
can be mounted in different positions. This
makes it easy to flush the pipes through to where
they finish at the wall.
6
universal
®
Safe and economical
The basic set contains just the connection block.
The valuable fitting aid is delivered and
installed later, together with the finish set.
Prevents problems like theft, dirt and frost
damage occuring during the building phase
and expensive warehousing becomes
unnecessary.
Integrated safety combination
When installing a concealed single lever bath
mixer with integrated safety combination –
together with an Exafill bath filler with waste
and overflow set – a non return valve becomes
unnecessary. This reduces installation costs as
well as the number of functional parts inside
the wall.
Solutions for walls that are either very
deep or very shallow
If the iBox universal sits too deep in the wall,
the basic unit extension is fitted between the
connector and the function block.
>108
The extension set ensures safety right up to the
wall and keeps the walls free from dampness.
The iBox universal standard basic set has been
made flatter and is now even better suited for
25
walls with limited installation depths.
133
Collar extension
<80
Thanks to the extension, even limited
installation depths are no longer a problem.
The extension collar makes it possible to install
the iBox universal despite the lack of depth.
22
min.
58
