Croplands WEED-IT Quadro Transport Unloading & Setup Manual page 9

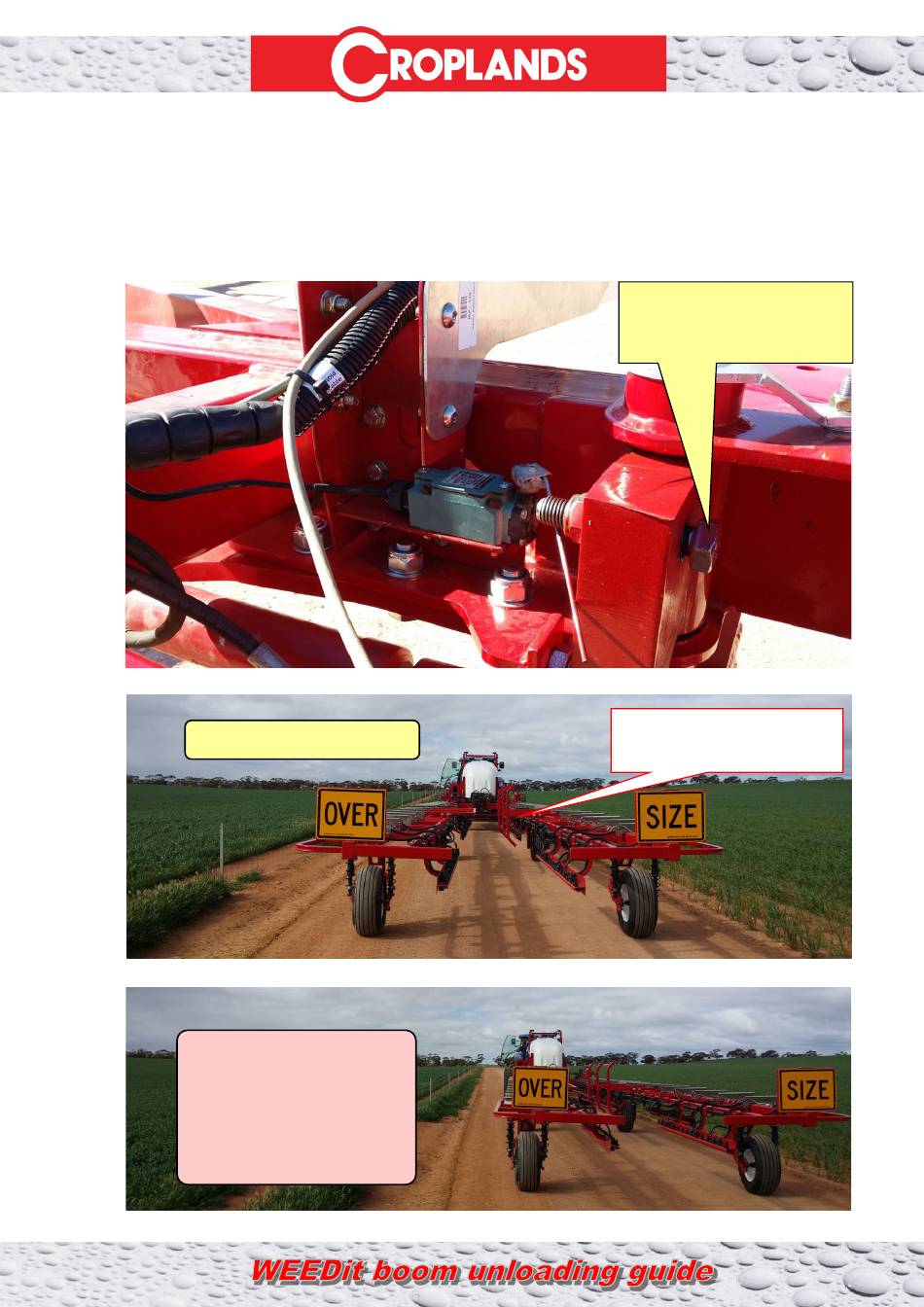

(22) The boom steering wheel bolts will require adjustment. The wheels should have a small amount of toe
out when travelling forward to keep the booms apart when cornering. Set the boom to the transport
position and drive forward slowly, there should be a minimum of 200 mm clearance between the bash
bars, rotate the top steer wheel stop bolt out to increase the clearance between the boom "bumper"
bars, check that one side is not wider at the rear than the other side.
Correctly set up boom.
This picture is an example of an
incorrectly set boom.
The left boom is too wide;
Rotate the top bolt in half a turn
on the left boom and test.
BT-OMWEED-TRANS (V3B)
This stop bolt is used to align
the "steer" wheel in the
transport position.
This is the old position for the boom
bumpers – correct (v2) position is on the
intermediate section, closer to the tip.
