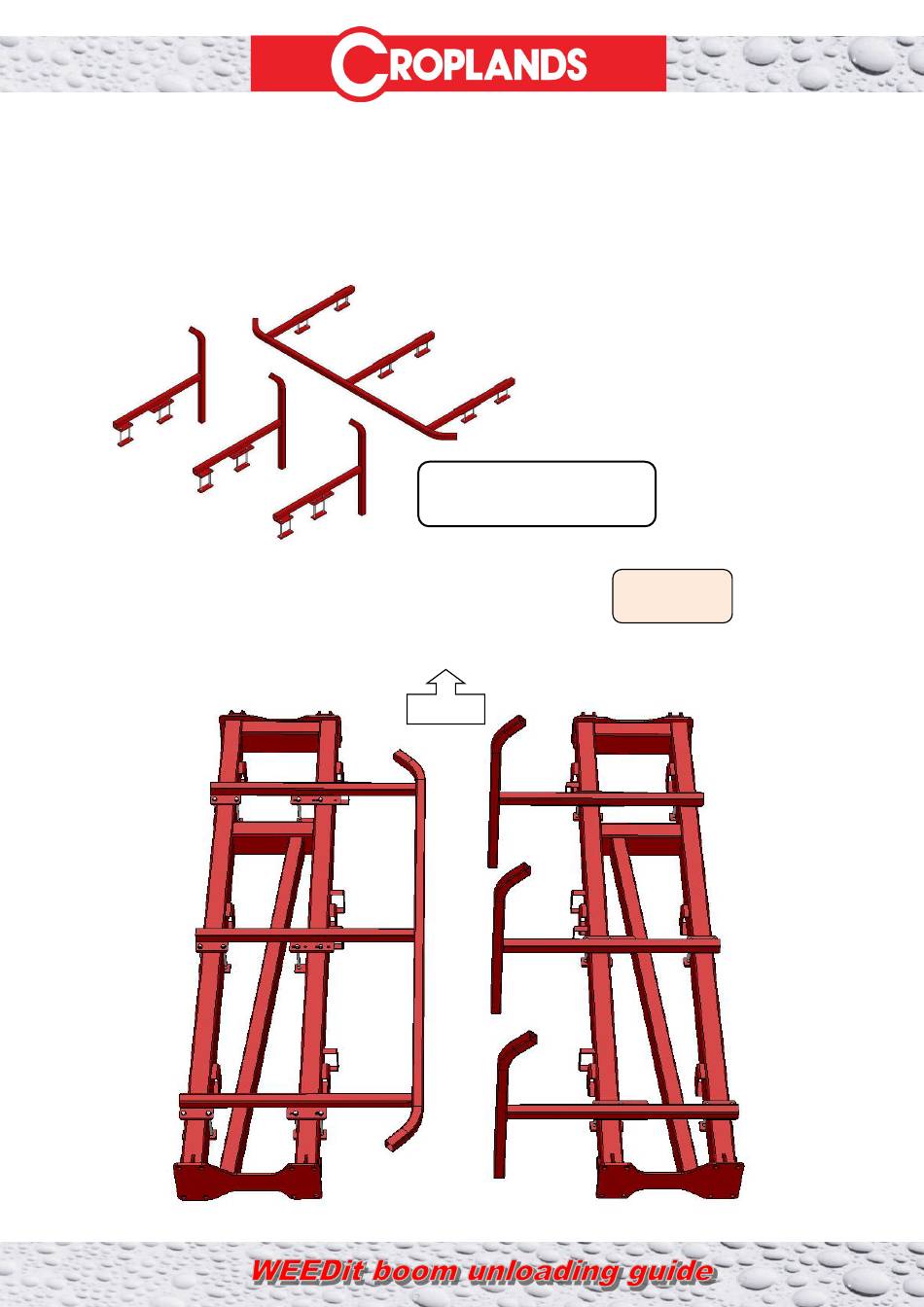

(15) Fit boom bumper bars. The Horizontal bar is fitted to the left hand boom, and the 3 single arms are
fitted to the right hand boom.
Preferred position for 36m boom is now on the intermediate arm (as shown at bottom). Shorter booms will
require mounting on the inner arm.
BT-OMWEED-TRANS (V3B)
Shown is all of AB243000-700A
plus bolt kit, BK-2502.
Spray cart
Note older boom
structure shown.
