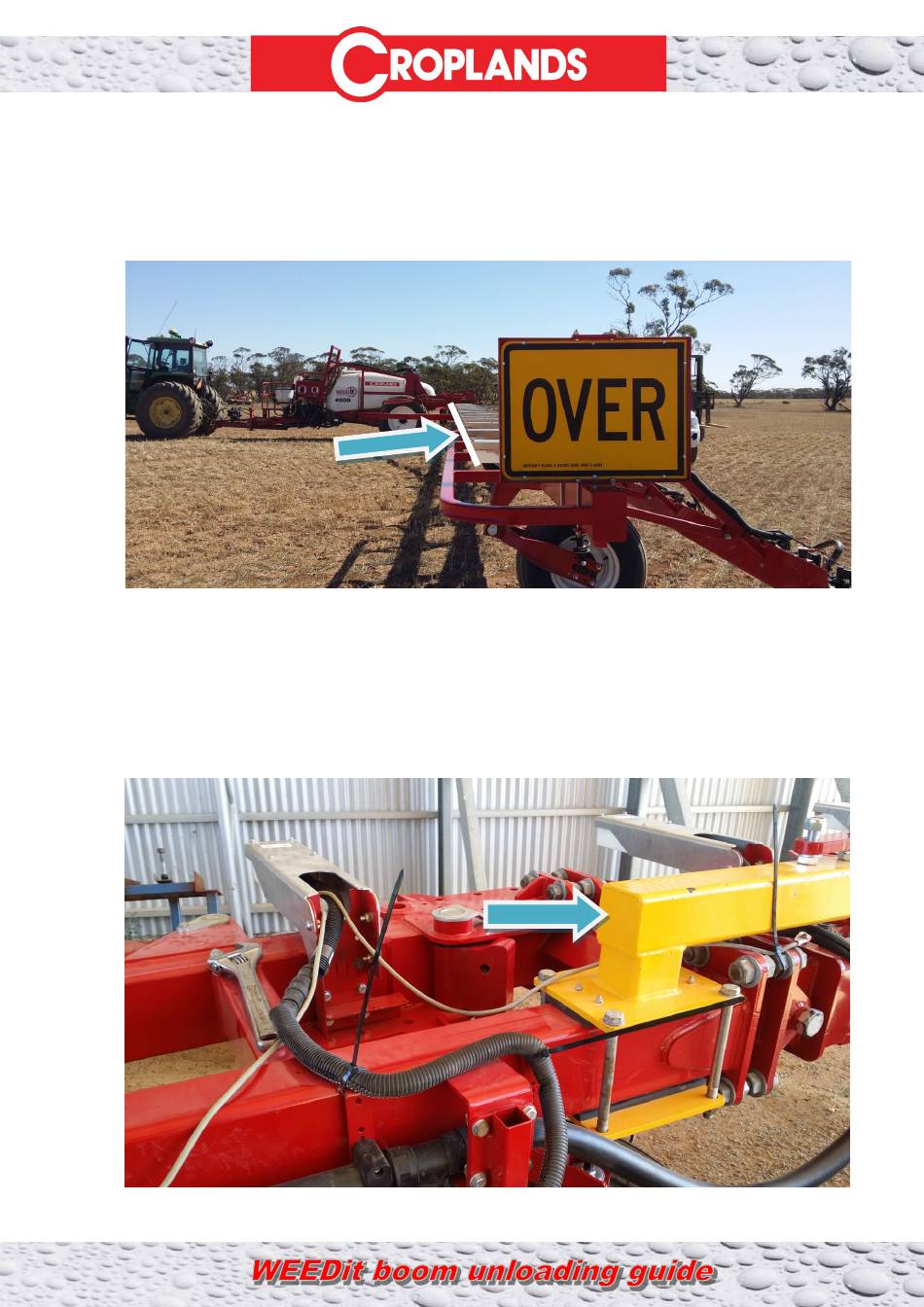

(11) Adjust the top inner bolts to align all camera brackets.
(12) Adjust all 4 lower bolts to get the boom parallel to the ground at the join point.
Tension all nuts to 800Nm.
(13) Remove yellow inner pivot brace. Remember to return all "Yellow" Transport kit components, including
nuts, bolts and washers to Croplands for credit.
