Croplands WEED-IT Quadro Transport Unloading & Setup Manual page 10

(23) Adjust the drawbar to achieve 1100mm camera height on the central cameras – as a guide, the main
chassis sits approximately 6 degrees nose down from horizontal, and the upright tank supports are 90
degrees from horizontal, when correctly adjusted.
Before operating please read the Boom Parking
Quick Start Guide, BT-OMWEED-QSG-B (version 2),
as shown here.
Carry out the set up and pre-delivery of the machine using
the supplied manuals for the WEEDit system and blanket
spray line (if equipped) using the supplied manuals.
Notes:
• Never operate the boom when the wheels are at right angles to the direction of travel.
• Be very careful to follow the (manual) instructions for setting up the boom stay arms
intuitive and easy to get wrong if not following instructions).
BT-OMWEED-TRANS (V3B)

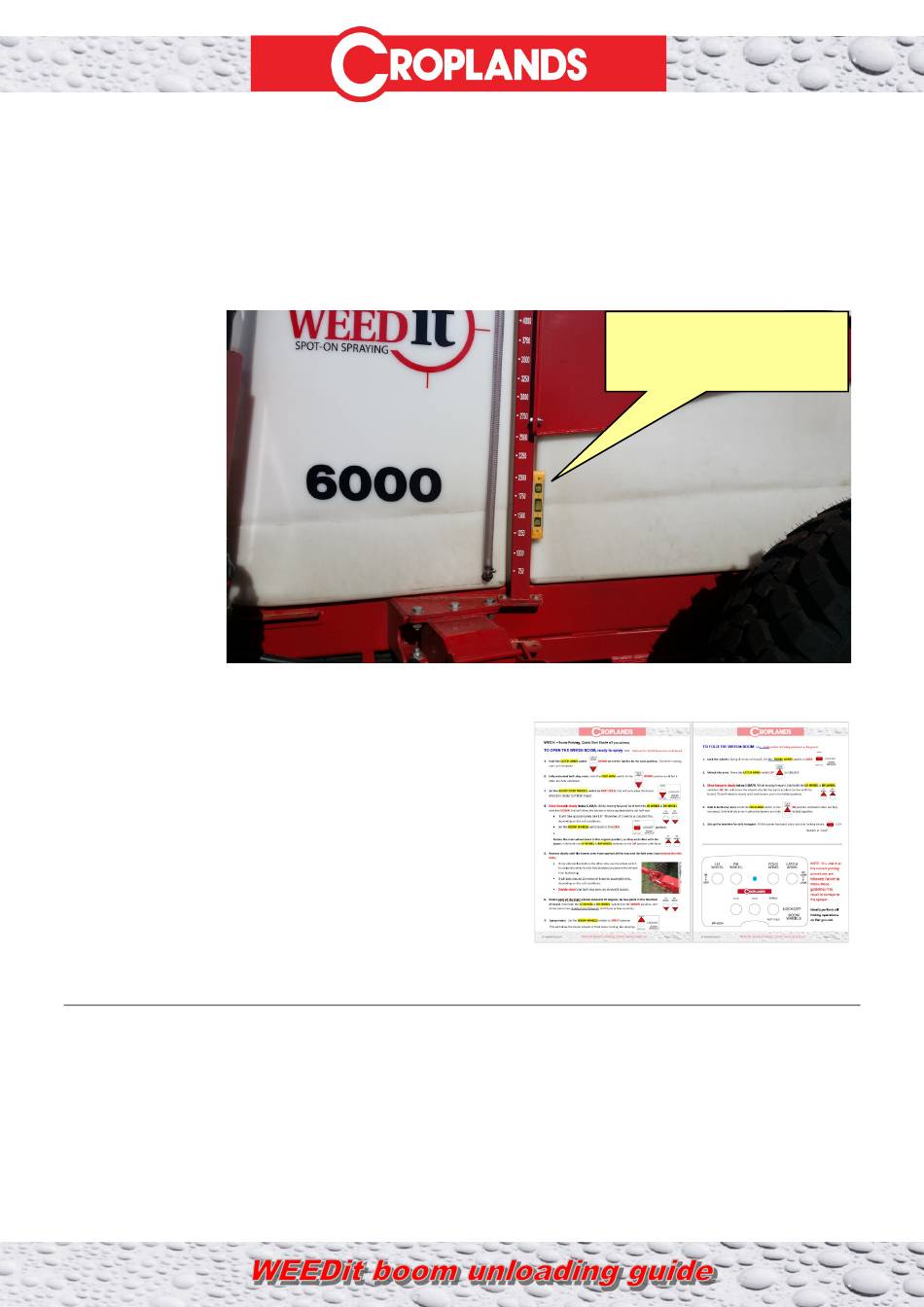

Use a spirit level to get tank level
bar horizontal. Adjust the rear
WEEDit drawbar to achieve this.
(it's a little counter
Page 10 of 10
