BABY WOLF LOOM
A
ssembly
PARTS
Wrapped onto warp beam:
3X
apron bars
2X lease sticks (with holes)
1X 1/4" treadle aid dowel (8-shaft and 4
Now-4 Later looms only)
2X 27" apron cord dowels (cherry
looms only)
Accessory pack:
1X brass reed hook
1X warp beam crank handle
1X 3/8" cap nut
1X 3/8" washer
BEFORE YOU BEGIN
■ All Wolf looms assemble in a similar way. Watch the Baby Wolf assembly video on our
Youtube channel (www.youtube.com/user/schachtspindle).
■ You'll find a complete labelled diagram of the Wolf loom in your Maintenance and
Warranty manual and at schachtspindle.com.
■ Wolf loom legs are called out by where they cross each other. The legs that touch the
ground at the front of the loom are called "inside" legs because they are covered by the
"outside" legs when they cross at the loom center.
■ The beater is at the front of the loom. The brake is on the right side of loom.
UNFOLDING THE LOOM
Remove all plastic wrap from the loom.
1.
Remove both shipping braces by slightly
loosening the back beam knobs and
front beam screws holding them in place.
Discard the braces and tighten the knobs
and screws.
Slightly loosen the black fold knobs
2.
on each side of the loom (Figure 1).
Generally, a single turn will do.
Loosening the knobs all the way or
removing them can cause the loom to
collapse, which could result in injury.
Stand at the side of the loom. Hold the
3.
front and rear beams together slightly. Pull
the slide lock bars out toward the back of
the loom.
Find out more at schachtspindle.com
Schacht Spindle Company 6101 Ben Place Boulder, CO 80301
p. 303.442.3212 f. 303.447.9273
© 2019 Schacht Spindle Company, Inc.
I
nstructIons
TM
3X extra 8/32" hex nuts for shafts
3X extra rubber O-rings for shafts
10X 29" apron cords (or 2X 252" apron
cords for cherry looms)
Maintenance and Warranty Manual
4-shaft looms:
400X heddles
24X
tie-up cords
8-shaft and 4 Now-4 Later looms:
800X heddles
80X
tie-up cords
10X
black treadle aid cords
back beam
knob
slide lock bar
slot in
castle

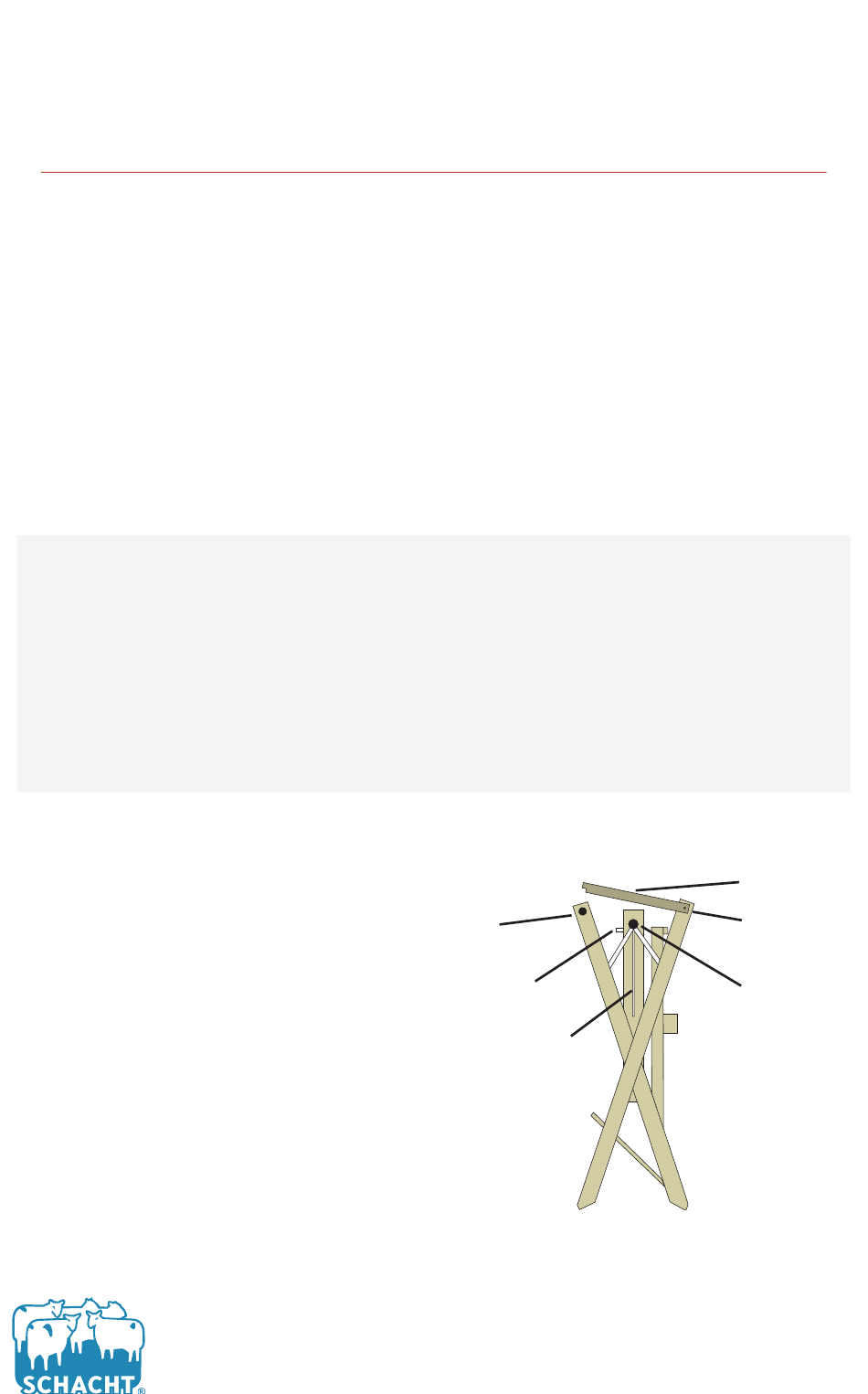

FIGURE 1: UNFOLDING THE LOOM
FL3001
FL3013
FL3003
FL3021
FL3011
FL3023
shipping brace
front beam
screw
fold knob
FRONT OF
LOOM
11.19
