WOLF HEIGHT
EXTENDER STROLLER

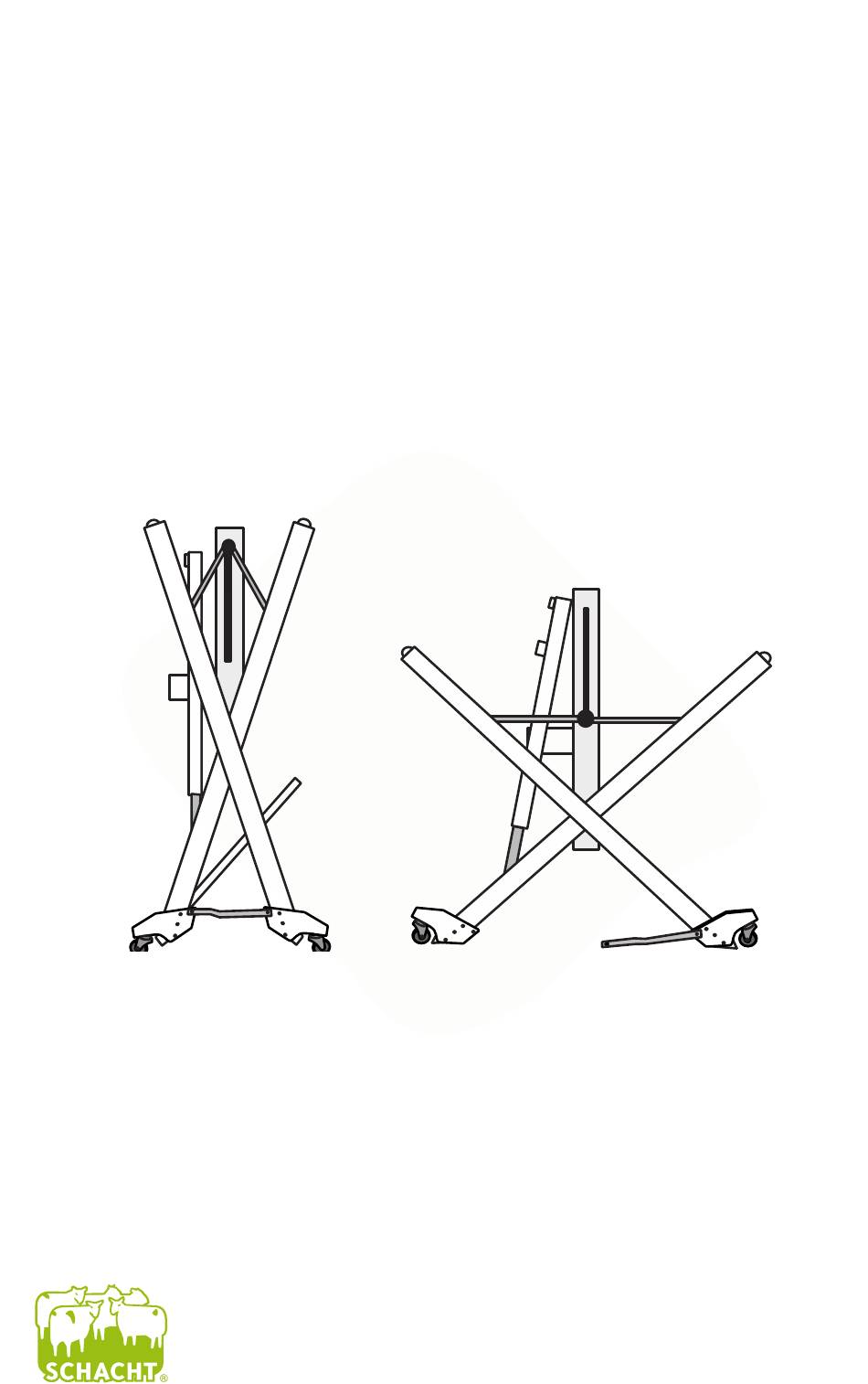

A
folded—ready to travel
for InstAllAtIon on All
Wolf looms without height extender require the Wolf Pup 8.10 Stroller (FL3052)
or Wolf Stroller (FL3051). If you received this booklet with FL3052 or FL3051,
please visit our website for the correct booklet.
Find out more at schachtspindle.com
Schacht Spindle Company 6101 Ben Place Boulder, CO 80301
p. 303.442.3212 f. 303.447.9273
© 2019 Schacht Spindle Company, Inc.
ssembly
W
olf
I
nstructIons
open—ready to weave
H
eIgHt
l
ooms
FL3053
e
xtender
07.19
Advertisement
Related Manuals for Schacht FL3053
Summary of Contents for Schacht FL3053
- Page 1 Wolf Stroller (FL3051). If you received this booklet with FL3052 or FL3051, please visit our website for the correct booklet. Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 p. 303.442.3212 f. 303.447.9273 © 2019 Schacht Spindle Company, Inc.
- Page 2 WOLF HEIGHT EXTENDER STROLLER ssembly nstructIons REQUIRED TOOLS PARTS #2 Phillips screwdriver caster blocks with casters slotted (flat) screwdriver height extender stroller bars two 7/16" and/or adjustable wrenches 1/4-20 x 1-1/2" Phillips truss head machine screws 1/4-20 x 3-1/2" Phillips truss head machine screws 1/4-20 x 2-1/4"...
- Page 3 USING THE STROLLER For traveling: Fold the loom, making sure that the treadles come to rest above the rear leg brace. Tighten the fold knobs and secure the slide lock bars (on bigger looms only) to keep the loom closed. The loom now sits on its stroller wheels (Figures 1A and 1B).
- Page 4 & InstAllAtIon on IgHty eIgHt xtender looms rear leg brace treadle support barrel nut (save) inside leg on outside leg on right side of loom right side of loom FIGURE 2: MIGHTY WOLF AND BABY WOLF LEGS Install the Wolf Stroller on a hard surface.
- Page 5 see; fasten securely. Repeat for the other caster block. Attach the hex bolt to hold the front of the stroller bar: From the inside of the loom, insert a 1/4-20 x 1-3/4" hex bolt through hole [F] in the front caster block.
- Page 6 8.10 & InstAllAtIon on eIgHt xtender looms NOTE: If you installed the wheels that came with your loom, we recommend that you take them off before installing your Wolf Stroller. treadle rear leg support brace barrel nut barrel nut (save) (save) inside leg on outside leg on...
- Page 7 to hole [A] in the leg. Insert a 1/4-20 x 3-1/2" Phillips truss head machine screw through the bottom hole [D] in a caster block, then through the bottom hole of an inside leg height extender block (Figure 6). Thread the machine screw into a barrel nut in the treadle support and tighten, using a slotted screwdriver 1/4-20 x 1-3/4"...
- Page 8 position. Repeat with a second caster block and the other outside leg height extender block. Insert a 1/4-20 x 1-1/2" Phillips truss head machine screw into the top hole [H] of a caster block (Figure 9). The screw will thread into an insert in the height extender block that you cannot see;...
