DentalEZ StarDental Titan 3 257506 Instruction Manual

DO NOT USE FOR ORAL SURGERY
BEFORE OPERATING THE SWIVEL CONNECTOR, CAREFULLY READ AND FOLLOW
ALL OF THESE INSTRUCTIONS. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE AND OBSERVE ALL WARNINGS AND CAUTIONS.
Indications For Use
Low speed dental attachments are used intraorally by trained dental professionals
for drilling and preparation of dental cavities for restoration, such as fillings. This also
includes disking, cavity and crown preps, polishing, post and pint drilling and pin setting.
Any serious incident occurring from the use of this device should be
NOTICE
reported to StarDental immediately. If incident occurred in a EU Member
State the Competent Authority must be notified.
Contents

• Features

• Cleaning & Sterilization

• Installation

• Troubleshooting

• Torque Multiplier Operation

• Replacement Part Numbers

• Straight Nose Cone Operation

• Warranty

• Angle Installation

Features
• LubeFree
• Smooth running, low friction performance
• Easy maintenance
• Long-term reliability
• Quick-disconnect mechanism
• Steam sterilization: 275° F (135° C) maximum
135°C
Sterilizable up to 135°C

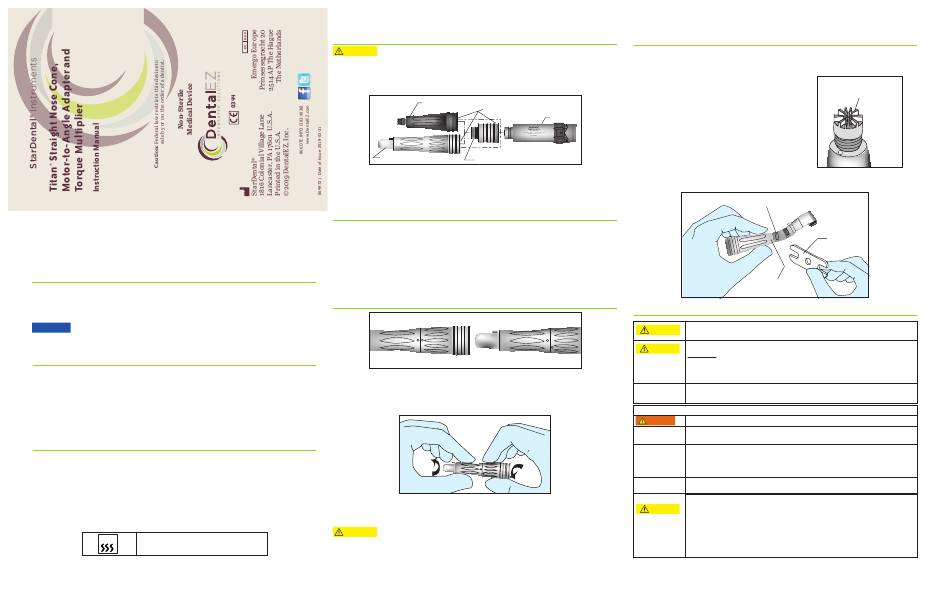

Installation
CAUTION To prevent injury, always remove bur or cutting tool from the straight
nose cone before installing or disconnecting the straight nose cone.
1. Assemble straight nose cone or motor-to-angle adapter to torque multiplier or mo-
tor by retracting the quick connect collar with fingers while placing straight nose cone
or motor-to-angle adapter on motor; release the quick connect collar.
Motor-to-Angle Adapter
Quick Connect Collar
Straight Nose Cone
Torque Multiplier
2. To remove straight nose cone, motor-to-angle adapter or torque multiplier, reverse
the above procedure.
Note: Never use force to connect or disconnect the straight nose cone, motor-to-angle
adapter or torque multiplier.
Torque Multiplier Operation
The torque multiplier, Titan ® 3 StarDental ® Part #258443 or Titan T StarDental Part#
263944, fits between the motor and either the straight nose cone or motor-to-angle
adapter. Use the torque multiplier to reduce speed four to one and increase torque
by a multiple of four.
When used with the 20K motor, low speed capability expands to perform low speed,
high torque procedures: prophylaxis, pin placement, endodontics, caries removal,
and operations where higher torque is required.
Straight Nose Cone Operation
Dots Aligned Dots Not Aligned
Chuck: Open and Unlocked
Chuck: Closed and Locked
Engraved on the sleeve and chuck locking collar of the straight nose cone are two
dots. Aligned dots indicate chuck is closed and locked. When dots are not aligned,
chuck is open and unlocked.
To open chuck, grasp the chuck locking collar with one hand, the sleeve with the
other, and rotate counterclockwise until a 'click' is heard.
With the chuck open, insert a .0925"(2.350mm)Ø shank bur, Doriot angle or
disposable prophy angle the full length of the chuck. Close chuck and lock by
reversing the opening procedure.
CAUTION Operate the straight nose cone with a bur, Doriot angle or disposable
angle in chuck. Operating either with the chuck open or without a bur, Doriot angle
or disposable angle installed will damage the chuck.
Angle Installation
1. Thread contra angle attachment of choice onto the motor-to-angle adapter, Titan-T
BB StarDental Part #263970 or Titan 3 BB StarDental Part #264073, by hand. Seat
completely.
Note: If angle does not seat on adapter, gears are
not meshed correctly. Remove angle; spin
motor-to-angle adapter drive gear and
repeat step one.
Motor
2. Fit universal wrench, StarDental Part #203048, furnished with every angle, to
mating indentations on angle neck; tighten securely.
Cleaning & Sterilization
It is the responsibility of the user to use only FDA compliant sterilizing equipment and
CAUTION
accessories that are capable of meeting the manufacturers recommendations below.
Do not exceed 135°C
CAUTION
Do not use: • dry heat sterilizer
•immersion techniques
• detergents
• chemical disinfectors
Limits on Repeated processing has minimal effect on these attachments. End of life is
normally determined by wear and damage due to use.
Reprocessing
INSTRUCTIONS
The attachements must be cleaned and sterilized before first use and between patient use.
WARNING
Containment and It is recommended that
transportation: practical following use.
Preparation for Wear puncture-resistant gloves to prepare attachments for sterilization. Remove
cleaning: bur, disc or prophy cup from angle attachment. Disconnect straight nose cone,
torque multiplier or angle and motor-to-angle adapter from motor. Disconnect angle
from motor-to-angle adapter.
Cleaning Washer-disinfectors are not recommended.
Automated:
Cleaning-Manual: Cleaning the Straight Nose Cone
Remove straight nose cone from motor. Close chuck (dots aligned). Insert round end
CAUTION
of brush provided, StarDental Part #203043, straight into chuck and withdraw.
Note: Do not rotate brush while inserting or removing. After removing brush, tap
nose of chuck to expel debris.
Do not adjust, disassemble or lubricate straight nose cone.
Motor-to-Angle
Adapter Drive Gear
Mating Indentations
Universal
Wrench
Motor-to-Angle
Adapter
• cold sterilizers • ultrasonic cleaners
• sterilizer bags containing disinfectants
• surface wipes •surface sprays
• hand soaps
• surgical milk
attachments are reprocessed as soon as is reasonably
