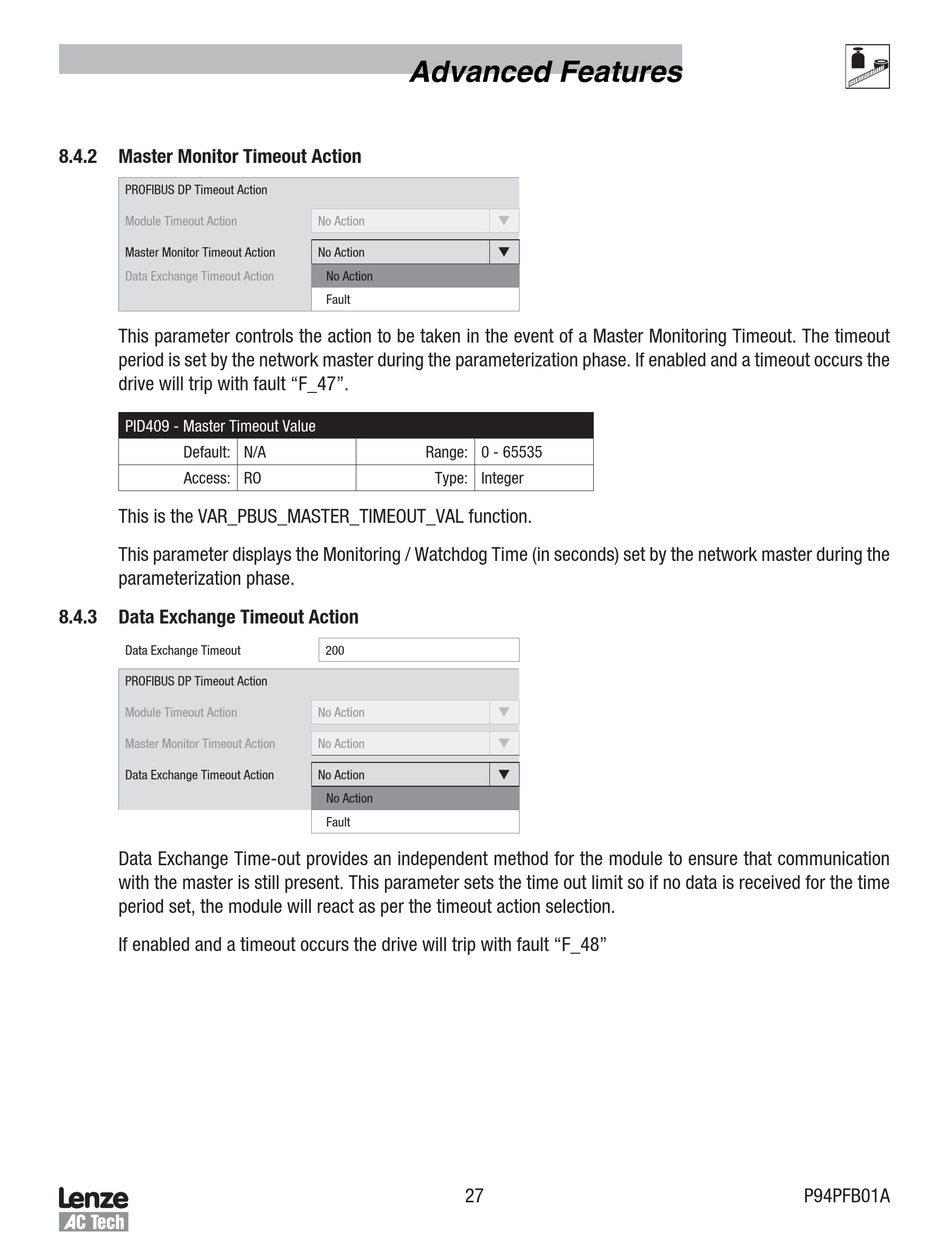

8.4.2 Master Monitor Timeout Action
PROFIBUS DP Timeout Action
Module Timeout Action

Master Monitor Timeout Action

Data Exchange Timeout Action

This parameter controls the action to be taken in the event of a Master Monitoring Timeout. The timeout
period is set by the network master during the parameterization phase. If enabled and a timeout occurs the
drive will trip with fault "F_47".
PID409 - Master Timeout Value
Default: N/A
Access: RO
This is the VAR_PBUS_MASTER_TIMEOUT_VAL function.
This parameter displays the Monitoring / Watchdog Time (in seconds) set by the network master during the
parameterization phase.
8.4.3 Data Exchange Timeout Action
Data Exchange Timeout
PROFIBUS DP Timeout Action
Module Timeout Action
Master Monitor Timeout Action
Data Exchange Timeout Action
Data Exchange Time-out provides an independent method for the module to ensure that communication
with the master is still present. This parameter sets the time out limit so if no data is received for the time
period set, the module will react as per the timeout action selection.
If enabled and a timeout occurs the drive will trip with fault "F_48"
