A 3.2.1

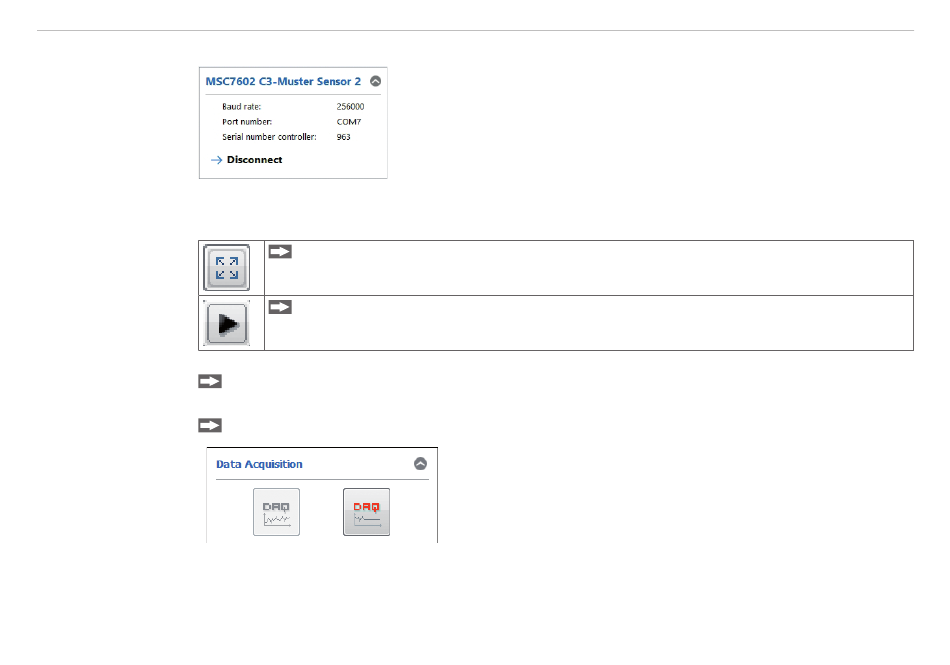

Fig. 67 Disconnect
By clicking the Disconnect button you return to the controller
A 3.2.2
The acquisition is completely restarted and the record stopped before is deleted.
Fig. 68 Start
MSC7401 / 7802 / 7602 Miniature sensor controller for inductive displacement sensors
Main View
Click the Reset Y-Scale button to reset the Y-scale to initial settings (e.g. after zooming).
Click the Jump to Head button to display the current signal course.
Start / Stop
Start the data acquisition by clicking the Start
Stop the data acquisition by clicking the Stop
Fig. 69 Stop
search, see Fig.
button, see Fig. 68.
button, see Fig. 69.
63.
