Installation and Assembly
Pin assignment of supply and
analog output
Assignment
Analog output for channel 2
Analog output for channel 1
Supply voltage
GND supply/signal ground
-
Shield (housing)

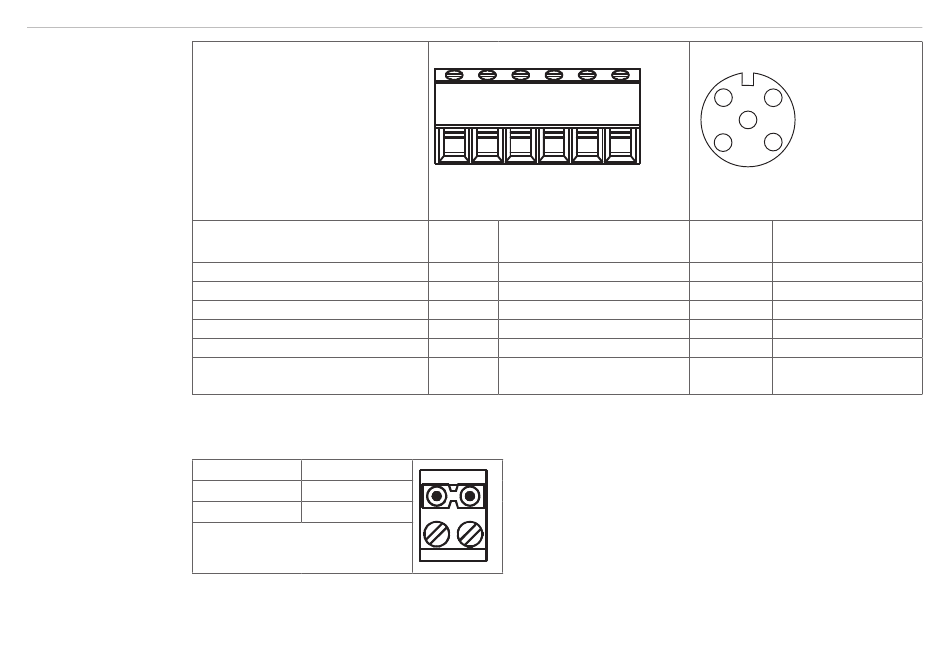

Fig. 28 Table for pin assignment of supply and analog output
4.4.2
Assignment
RS485 A
RS485 B
Fig. 29 Table for pin assignment of digital interface RS485
MSC7401 / 7802 / 7602 Miniature sensor controller for inductive displacement sensors

Digital Interface

Pin X3
X3
1
2
Variant with cable gland
X1
1 2 3 4 5
Pin X1 Color
(cable: PC7400-6/4)
1 Green
2 Yellow
3 White
4 Brown
5 -
6 Cable shield
1 2
Connector variant
2
1
6
5
3 4
5-pin M12x1
(A-coded); view on pin side
5-pin Color
(cable: PC5/5-IWT)
2 White
4 Black
1 Brown
3 Blue
5 Gray
- Cable shield guided
over connector
