Installation

Testing the tank

WARNING
When servicing equipment, use non-sparking tools and use caution when removing or
installing equipment to avoid generating a spark.

Equipment required:

• Pressure generating equipment with appropriate fittings to connect to the 1/4'' NPT tank test port

Procedure:

1. Remove and retain the protective plug over service screw and turn the screw clockwise (see Figure 24). As
the screw approaches its bottom position, you will hear the system depressurizing. Continue turning the screw
until it can go no further.
2. Remove and save the 1/4 '' NPT tank test port plug and attach tank testing equipment (see Figure 25).
3. Depressurize tank and remove testing equipment. Apply an adequate amount of fresh, UL classified for
petroleum, non-setting thread sealant on the 1/4'' NPT plug and replace it in the tank test port. Torque the
plug to 14 to 21 ft-lbs (19.4 to 29 N•m).
4. Turn the service screw counterclockwise all the way up. As the screw nears its top position you will hear the
check valve drop into position. Replace the protective plug over the service screw and fully thread into place
to ensure a good seal.
5. Turn the air purge screw 2 - 3 turns counterclockwise (see Figure 24).
WARNING
The air purge screw is retained by a hitch pin to limit travel. Do not attempt to rotate
beyond 3 turns.
6. Turn the pump on and let it run for about 2 minutes to purge air from the manifold's hydraulic cavities. While
the pump is still running, turn the air purge screw clockwise until it is completely closed.
7. The pump is now ready for normal operation.
OFF
Disconnect, lock out, and tag power at the panel before servicing the
pump.
1/4'' NPT Tank test port

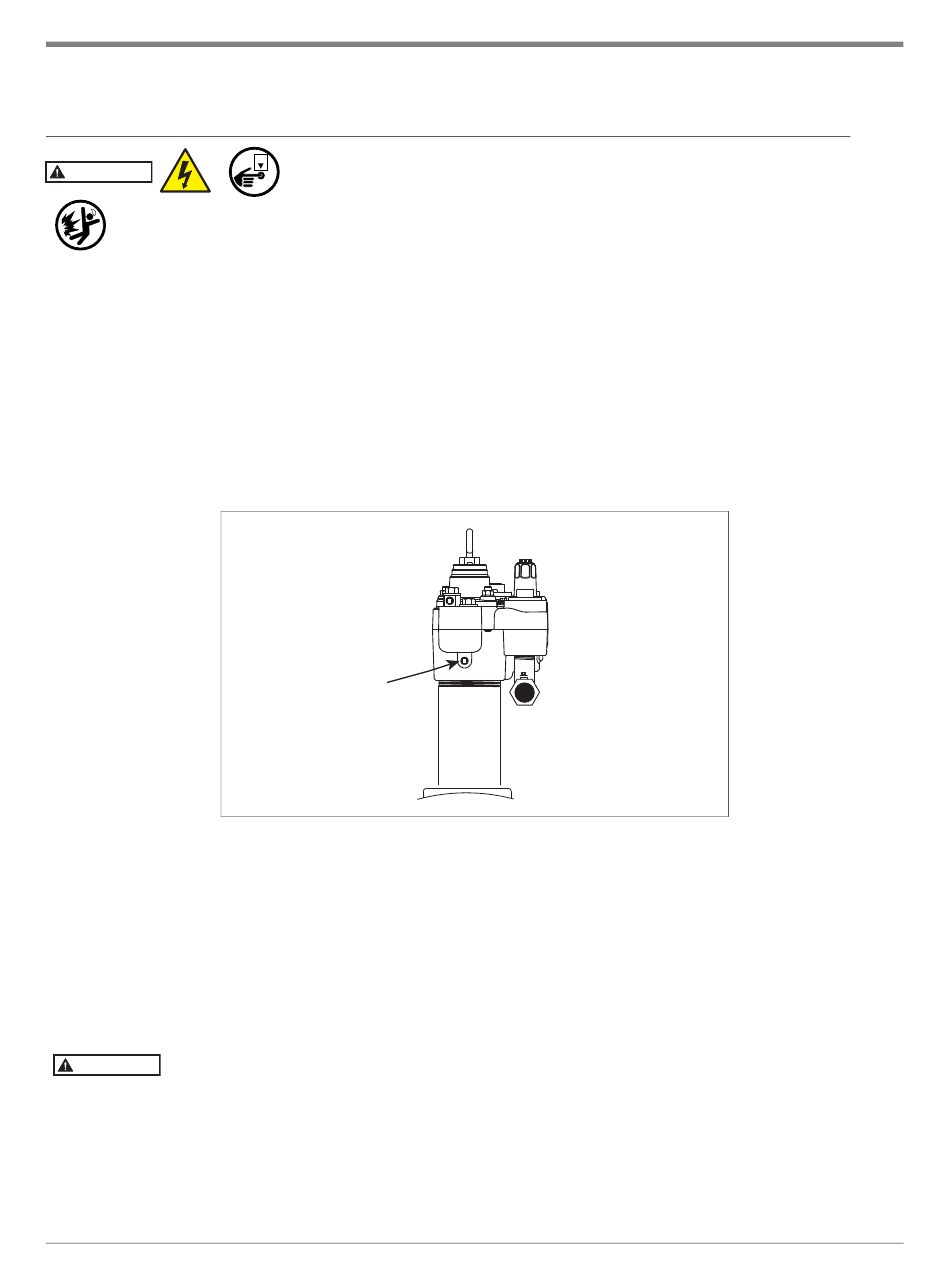

Figure 25. Tank Test Port On Manifold
rjpumps/fig23.eps
30
Testing the tank
