700HPPK
Service Information

Pump Quick Service

For quick service of the Product, do steps 1 through 5
from Lubricate the Product.
Pump Quick Service (SK-700HPP-QS)
Instructions
To replace the desiccant, see Figure 5:
1. Unscrew and open the black lid () of the clear
desiccant tube () at the base of the pump.
2. Remove the old desiccant material from the tube.
3. Tear open one of the provided desiccant packs and
pour the desiccant material into the clear desiccant
tube.
4. Screw the lid back on.
Repeat this process every 3 to 4 months or as necessary
to keep moisture out of the desiccant.
10
1
2

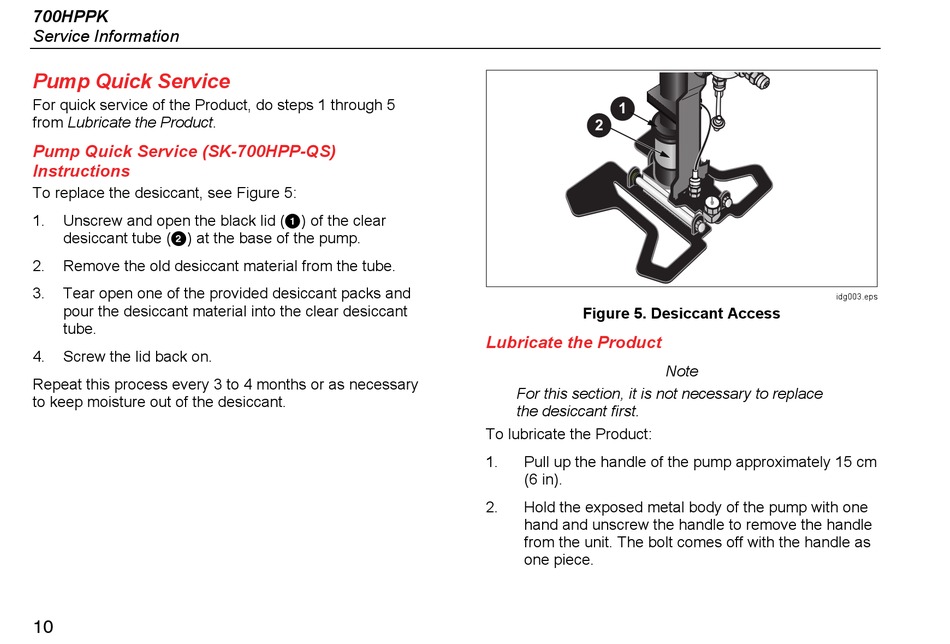

Figure 5. Desiccant Access

Lubricate the Product

For this section, it is not necessary to replace
the desiccant first.
To lubricate the Product:
1. Pull up the handle of the pump approximately 15 cm
(6 in).
2. Hold the exposed metal body of the pump with one
hand and unscrew the handle to remove the handle
from the unit. The bolt comes off with the handle as
one piece.
idg003.eps
Note
