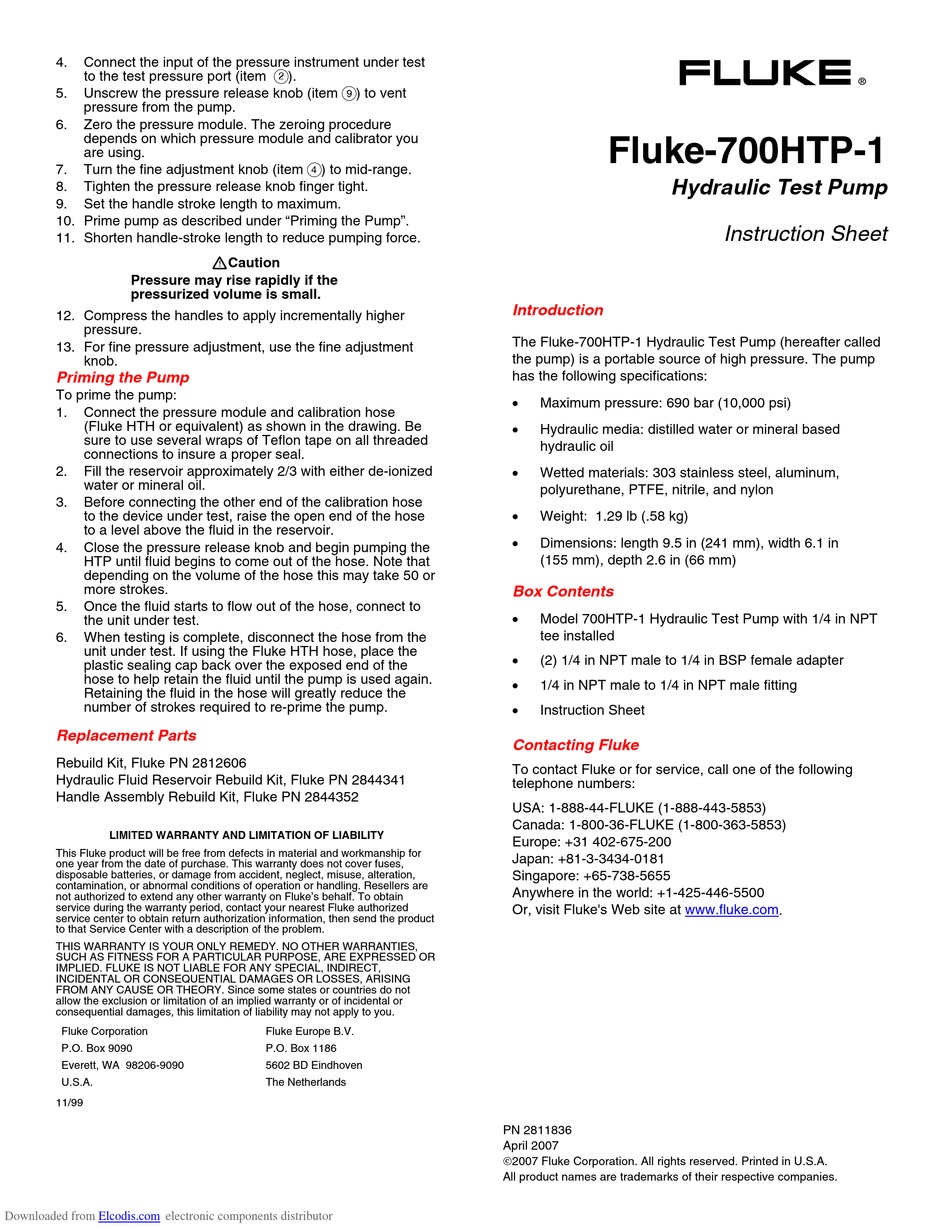

Fluke 700HTP-1 Instruction Sheet

4. Connect the input of the pressure instrument under test
to the test pressure port (item B).
Unscrew the pressure release knob (item I) to vent
5.
pressure from the pump.
6. Zero the pressure module. The zeroing procedure
depends on which pressure module and calibrator you
are using.
Turn the fine adjustment knob (item D) to mid-range.
7.
8. Tighten the pressure release knob finger tight.
9. Set the handle stroke length to maximum.
10. Prime pump as described under "Priming the Pump".
11. Shorten handle-stroke length to reduce pumping force.
Pressure may rise rapidly if the
pressurized volume is small.
12. Compress the handles to apply incrementally higher
pressure.
13. For fine pressure adjustment, use the fine adjustment
knob.
Priming the Pump
To prime the pump:
1. Connect the pressure module and calibration hose
(Fluke HTH or equivalent) as shown in the drawing. Be
sure to use several wraps of Teflon tape on all threaded
connections to insure a proper seal.
2. Fill the reservoir approximately 2/3 with either de-ionized
water or mineral oil.
3. Before connecting the other end of the calibration hose
to the device under test, raise the open end of the hose
to a level above the fluid in the reservoir.
4. Close the pressure release knob and begin pumping the
HTP until fluid begins to come out of the hose. Note that
depending on the volume of the hose this may take 50 or
more strokes.
5. Once the fluid starts to flow out of the hose, connect to
the unit under test.
6. When testing is complete, disconnect the hose from the
unit under test. If using the Fluke HTH hose, place the
plastic sealing cap back over the exposed end of the
hose to help retain the fluid until the pump is used again.
Retaining the fluid in the hose will greatly reduce the
number of strokes required to re-prime the pump.
Replacement Parts
Rebuild Kit, Fluke PN 2812606
Hydraulic Fluid Reservoir Rebuild Kit, Fluke PN 2844341
Handle Assembly Rebuild Kit, Fluke PN 2844352
LIMITED WARRANTY AND LIMITATION OF LIABILITY
This Fluke product will be free from defects in material and workmanship for
one year from the date of purchase. This warranty does not cover fuses,
disposable batteries, or damage from accident, neglect, misuse, alteration,
contamination, or abnormal conditions of operation or handling. Resellers are
not authorized to extend any other warranty on Fluke's behalf. To obtain
service during the warranty period, contact your nearest Fluke authorized
service center to obtain return authorization information, then send the product
to that Service Center with a description of the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES,
SUCH AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR
IMPLIED. FLUKE IS NOT LIABLE FOR ANY SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING
FROM ANY CAUSE OR THEORY. Since some states or countries do not
allow the exclusion or limitation of an implied warranty or of incidental or
consequential damages, this limitation of liability may not apply to you.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
11/99
Downloaded from Elcodis.com electronic components distributor
WCaution
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
Fluke-700HTP-1
Hydraulic Test Pump
Introduction
The Fluke-700HTP-1 Hydraulic Test Pump (hereafter called
the pump) is a portable source of high pressure. The pump
has the following specifications:
•
Maximum pressure: 690 bar (10,000 psi)
•
Hydraulic media: distilled water or mineral based
hydraulic oil
•
Wetted materials: 303 stainless steel, aluminum,
polyurethane, PTFE, nitrile, and nylon
•
Weight: 1.29 lb (.58 kg)
•
Dimensions: length 9.5 in (241 mm), width 6.1 in
(155 mm), depth 2.6 in (66 mm)
Box Contents
•
Model 700HTP-1 Hydraulic Test Pump with 1/4 in NPT
tee installed
•
(2) 1/4 in NPT male to 1/4 in BSP female adapter
•
1/4 in NPT male to 1/4 in NPT male fitting
•
Instruction Sheet
Contacting Fluke
To contact Fluke or for service, call one of the following
telephone numbers:
USA: 1-888-44-FLUKE (1-888-443-5853)
Canada: 1-800-36-FLUKE (1-800-363-5853)
Europe: +31 402-675-200
Japan: +81-3-3434-0181
Singapore: +65-738-5655
Anywhere in the world: +1-425-446-5500
Or, visit Fluke's Web site at www.fluke.com.
PN 2811836
April 2007
©2007 Fluke Corporation. All rights reserved. Printed in U.S.A.
All product names are trademarks of their respective companies.
®
Instruction Sheet
