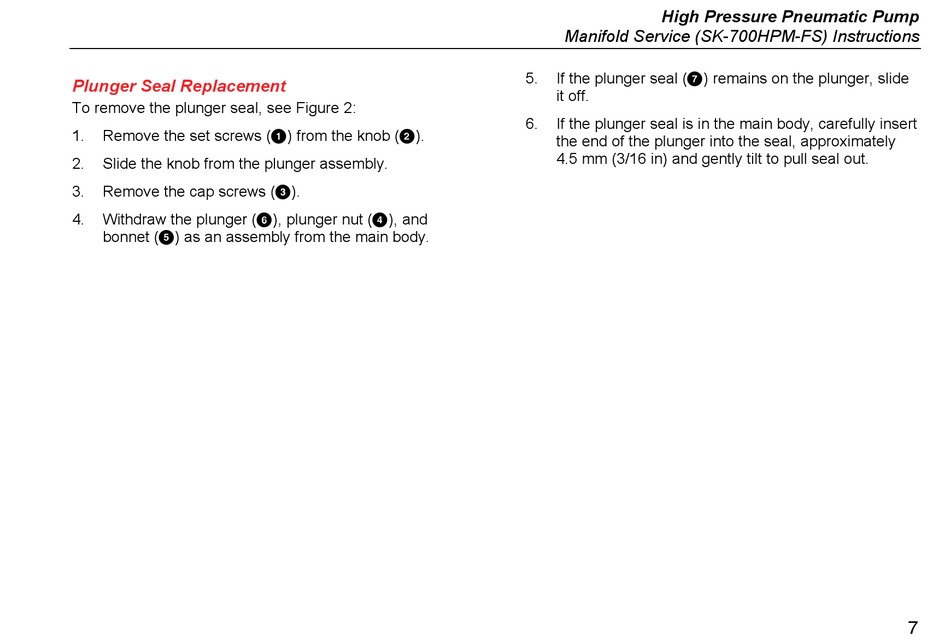

Plunger Seal Replacement
To remove the plunger seal, see Figure 2:
1.
Remove the set screws () from the knob ().
2.
Slide the knob from the plunger assembly.
3.
Remove the cap screws ().
4.
Withdraw the plunger (), plunger nut (), and
bonnet () as an assembly from the main body.
High Pressure Pneumatic Pump
Manifold Service (SK-700HPM-FS) Instructions
5.
If the plunger seal () remains on the plunger, slide
it off.
6.
If the plunger seal is in the main body, carefully insert
the end of the plunger into the seal, approximately
4.5 mm (3/16 in) and gently tilt to pull seal out.
