Manifold Service (SK-700HPM-FS)
Instructions

Strainer Washer Replacement/Service

To avoid build-up of particulate contamination from units
under test, regularly inspect the strainer washer. See
Table 1.
1. Disconnect the test hose () by unscrewing it from
the coupling fitted to the filter retainer.
2. Unscrew the filter retainer () and remove the
strainer washer ().
3. Clean or replace the strainer washer.
4. Inspect the O-ring () on the filter retainer. Replace
if necessary.
5. Lubricate O-ring with small amount of grease.
6. Refit the strainer washer to the main body.
7. Refit the filter retainer and tighten just beyond hand
tight with a wrench.
8. Reconnect the test hose.
6

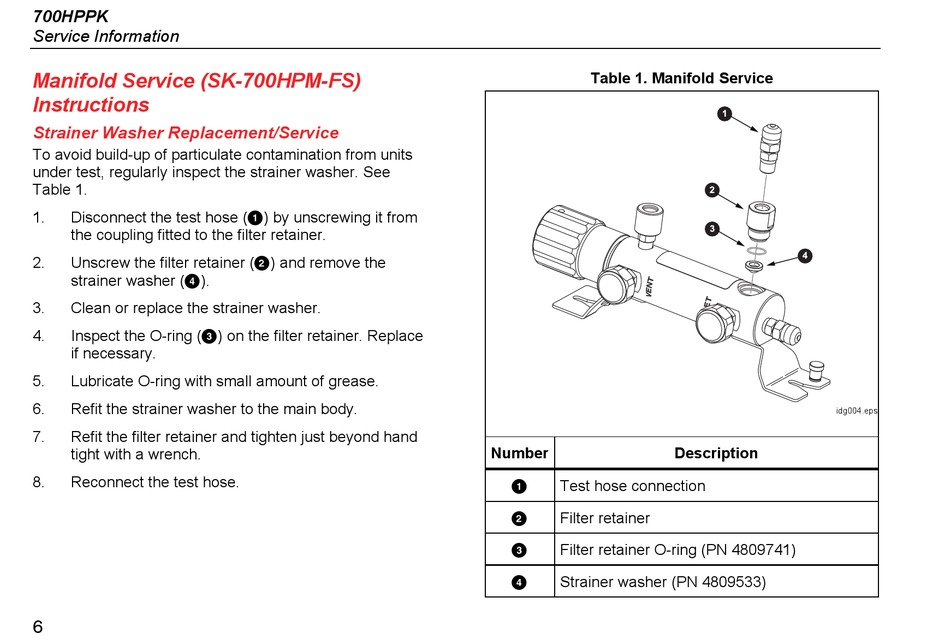

Table 1. Manifold Service
Number
Test hose connection

Filter retainer

Filter retainer O-ring (PN 4809741)

Strainer washer (PN 4809533)

1
2
3
idg004.eps
Description
