Solar-Log PRO1 Quick Reference Manual page 2

Meter type: Solar-Log™ PRO1
Technical data
Nominal voltage 230 V AC
Current 0,25 - 5(45) A
Frequency 50 Hz
Measurement Active- and Reactive energy in forward and reverse direction
Accuracy class B
Power consumption ≤ 10VA/Phase - ≤ 2W/Phase
Width 1 TE (17.5 mm)
Pulse Output LED 10,000 Imp/kWh
S –pulse output: 2,000 Imp/kWh, RA = 0,5 Wh/Imp
0
≤ 5 625 W -> 32 ms
Pulse length
> 5625 W -> 11,2 ms
Temperature range -25°C to +55°C
Max. rel. humidity 75% average, 95% short term
Registered harmonics: 0.05 – 0.25 kHz
LED blinking red consumption >4W, pulsrate= consumption
Display 4 + 2 Digits (9,999.11 kWh)
Mainclamps:
Max diameter
Additional clamps::
Note the SO pulse length for the Solar-Log™ PRO1
The following values for the SO pulse length are known:
► ≤ 5625W = pulse length 32ms
► > 5625W = pulse length 11,2ms
The Solar-Log™ can process a SO pulse with at least a length of 30 ms. This means a maximum
power of 5625W can be defi ned for the S0 output of the Solar-Log™ PRO1

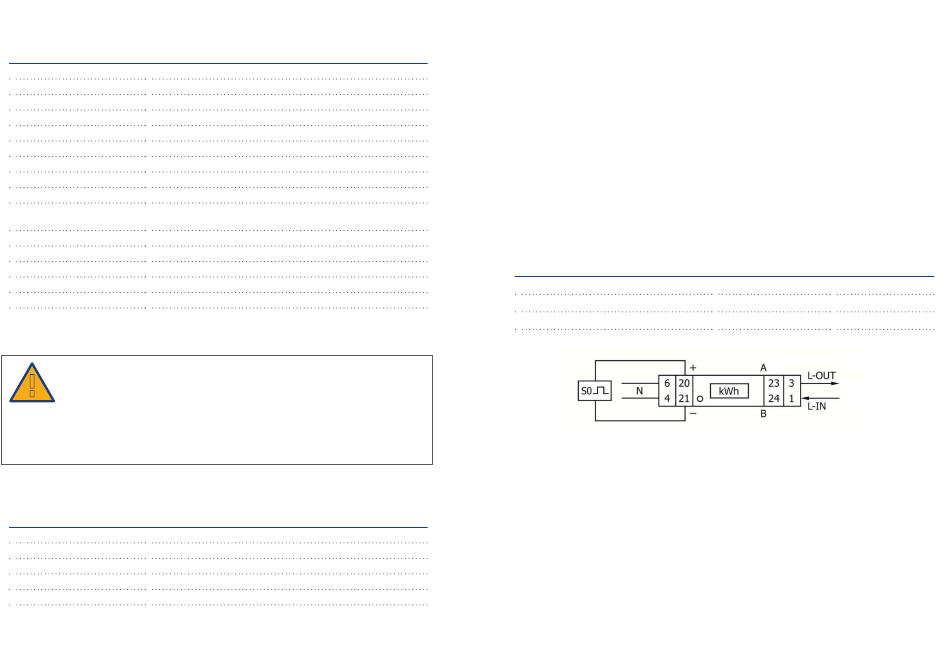

Connection diagramm
Connection diagramm 1000 (DIN 43856)
Clamp 1 Input Phase „L"
Clamp 3 Output Phase „L"
Clamp 4 Input Neutral „N"
Clamp 6 Output Neutral „N"
Clamp 20, 21 Connection S
Clamp 23, 24 ModBus-Connection
max. 10 mm
2
max. 2,5 mm
2
-pulse output
0
Connection diagram for diff erent operating modes
Solar-Log™ PRO1 (RS485 or S ) connection assignments
0
The meter connections are labeled IN (bottom) and OUT (bottom).
As consumption or sub-consumption meter: Connection to the grid (IN) – connection for appliances (OUT)
As inverter /production meter: Connection for the production (IN) – connection to the grid (OUT)
Solar-Log™ PRO1 connection assignments (only RS485)
As battery meter (bi-directional): IN = connection to the grid – OUT = connection to the battery
Please note that only Solar-Log™ PRO1 meters can operate on the RS485 interface (one or several). It is not
possible to combine the operation with other components.
Terminal block connector Solar-Log™ (RS485)
Terminal
1 ->
4 ->
If the meter is the last device on the bus, it has to be terminated at connection block 22 and 23 with a
resistor (120 ohm / 0.25W).
All display values of the meter
Change the meter from the automatically rotating display to the manual display by pressing the keys.
Pressing on the keys here allows all of the available display values to be accessed in sequence. Please refer
to the attached table for the menu navigation. If no keys are pressed after a short time, the meter reverts
back to the automatic display mode.
Solar-Log Base PRO1
Terminal Terminal
(A) 6 or (B) 10 (Data+) 23 (A)
(A) 9 or (B) 13 (Data-) 24 (B)
