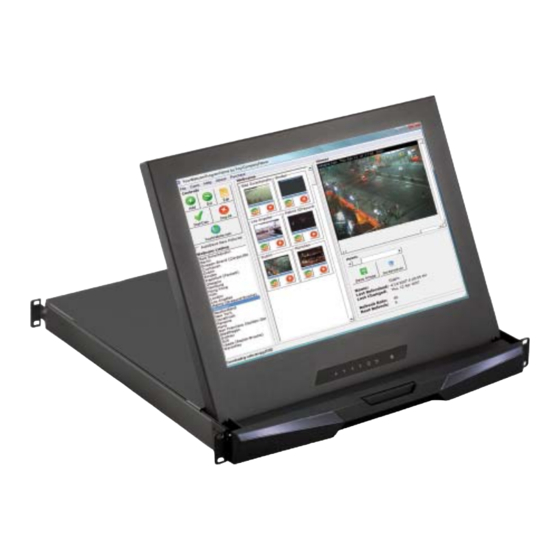

- Page 1 KVM switch and rackmount screen technology User Manual 17” Ultra High Resolution LCD 1920 x 1200 RMD-151-X17 1U LCD Drawer Options : - SDI - HDMI / Audio - Touchscreen / DC power...
-
Page 3: Table Of Contents
Contents < Part. 1 > RMD-151-X17 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifi cations / OSD Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 < Part. 3 >... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Rmd-151-X17
< Part 1 > < 1.1 > Package Content RMD-151-X17 RMD-151-X17 X 1 6ft VGA cable X 1 Power cord X 1 M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ). - Page 6 Weight 441.6 x 460 x 44 mm 590 x 687 x 120 mm 11 kg 15 kg RMD-151-X17 17.4 x 18.1 x 1.73" 23.2 x 27 x 4.7” 24 lb 33 lb The weight is only for the pure models. It varies with accessories & options such as SDI, HDMI, audio, touchscreen &...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides RMD-151-X17 Step ■ Insert the left and right rear mounting bracket into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. -
Page 8: Product Specifi Cations
< Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations Panel Size ( diagonal ) 16.2-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 800:1 Color 16.7 M, 8-bit... - Page 9 RP-X117 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 441.6 x 480 x 44 mm Specifi...
-
Page 10: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) RMD-X17 Auto adjust : Automatically adjust sizes, centers and fi ne tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
- Page 12 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
-
Page 13: Part. 3 > Options
< 3.2 > Options : RMD-151-X17 - HDMI - Audio Audio DVI-D Power HDMI PC in HDMI : HDMI 1.1, CEA-861-D Audio : 3.5mm audio jacks for audio in & out, and 2W + 2W speakers UM-CV-RMD-X17-Q312V1 www.austin-hughes.com... - Page 14 < 3.3 > Options : Touchscreen & driver X17" USB Touchscreen Specifi cation Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger Activation Force ≤ 50g / Stylus=R0.8 ≤ 50g Durability 10 million touches 300 million touches Response Time 15 ms...
- Page 15 < 3.4 > Options : DC Power RMD-151-X17 Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load...
