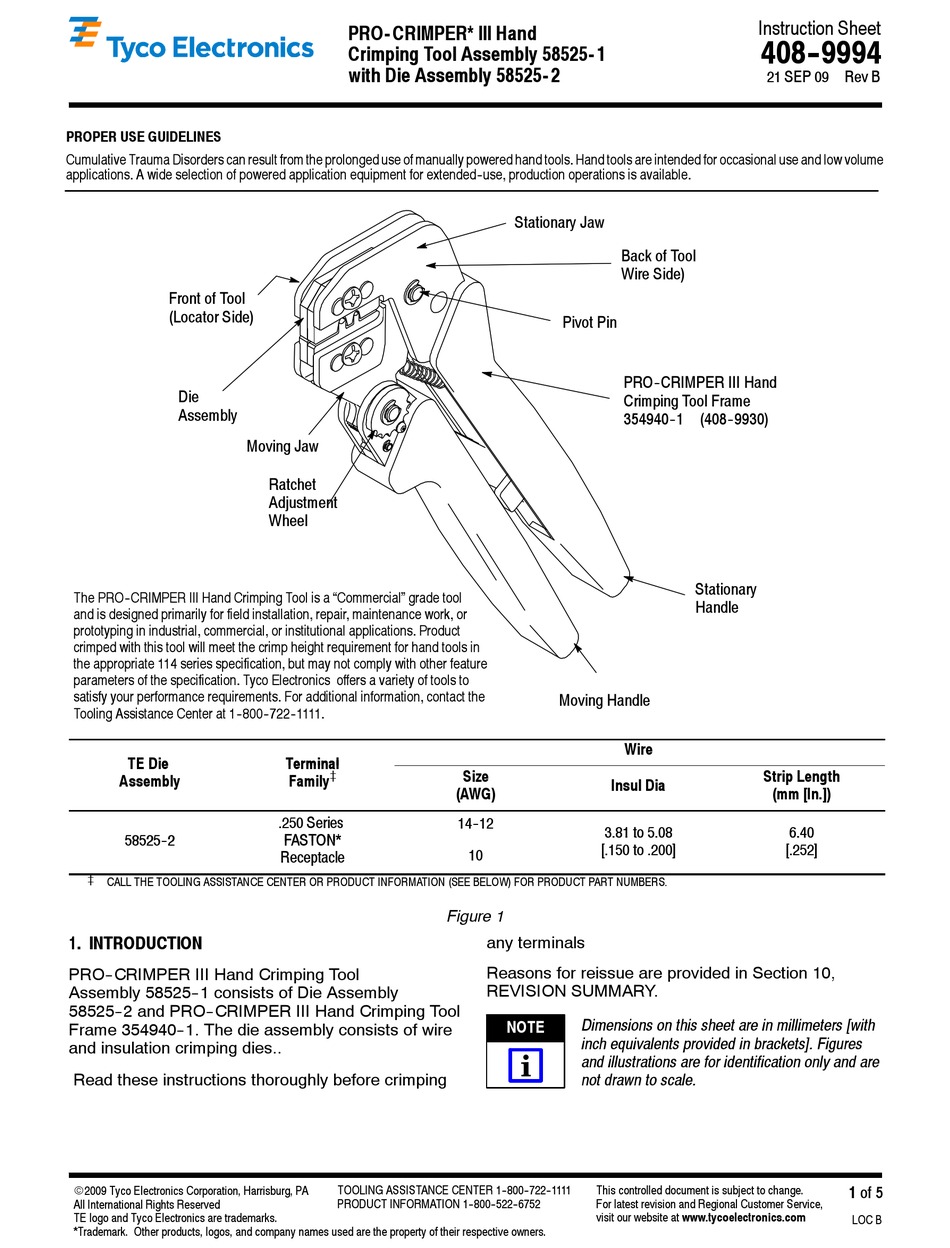

Tyco Electronics PRO-CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
Front of Tool
(Locator Side)
Die
Assembly

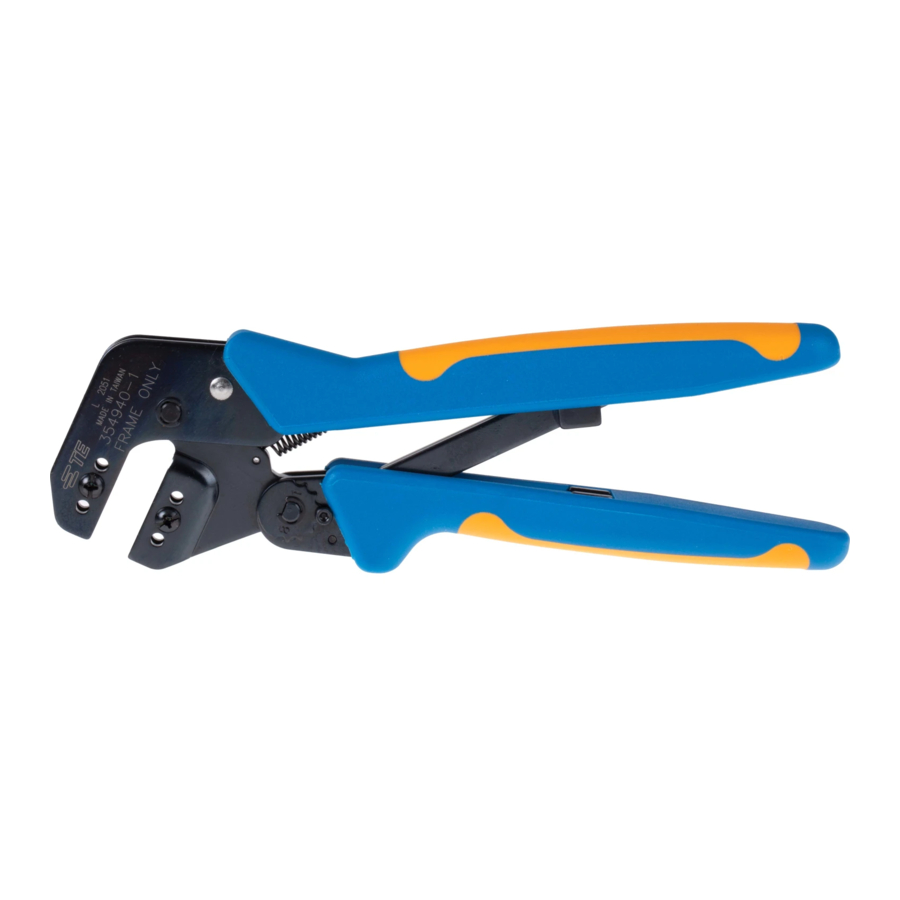

The PRO- - CRIMPER III Hand Crimping Tool is a "Commercial" grade tool
and is designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate 114 series specification, but may not comply with other feature
parameters of the specification. Tyco Electronics offers a variety of tools to
satisfy your performance requirements. For additional information, contact the
Tooling Assistance Center at 1- - 800- - 722- - 1111.
TE Die TE Die
Assembly
58525--2 58525--2
CALL THE TOOLING ASSISTANCE CENTER OR PRODUCT INFORMATION (SEE BELOW) FOR PRODUCT PART NUMBERS.
}
1. INTRODUCTION
PRO--CRIMPER III Hand Crimping Tool
Assembly 58525--1 consists of Die Assembly
58525--2 and PRO--CRIMPER III Hand Crimping Tool
Frame 354940--1. The die assembly consists of wire
and insulation crimping dies..
Read these instructions thoroughly before crimping
E2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PRO- CRIMPER* III Hand
Crimping Tool Assembly 58525- 1
with Die Assembly 58525- 2
Moving Jaw
Ratchet
Adjustment
Wheel
Terminal Terminal
}
Family
.250 Series
FASTON* FASTON*
Receptacle
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Stationary Jaw
Back of Tool
Wire Side)
Pivot Pin
PRO- - CRIMPER III Hand
Crimping Tool Frame
354940- - 1 (408- - 9930)
Moving Handle
Wire
Size
Insul Dia
(AWG)
14--12
3.81 to 5.08 3.81 to 5.08
[.150 to .200]
10
Figure 1
any terminals
Reasons for reissue are provided in Section 10,
REVISION SUMMARY.
Dimensions on this sheet are in millimeters [with
NOTE
inch equivalents provided in brackets]. Figures
i
and illustrations are for identification only and are
not drawn to scale.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408- - 9994
21 SEP 09 Rev B
Stationary
Handle
Strip Length
(mm [In.])
6.40 6.40
[.252]
1 of 5
LOC B
