3.

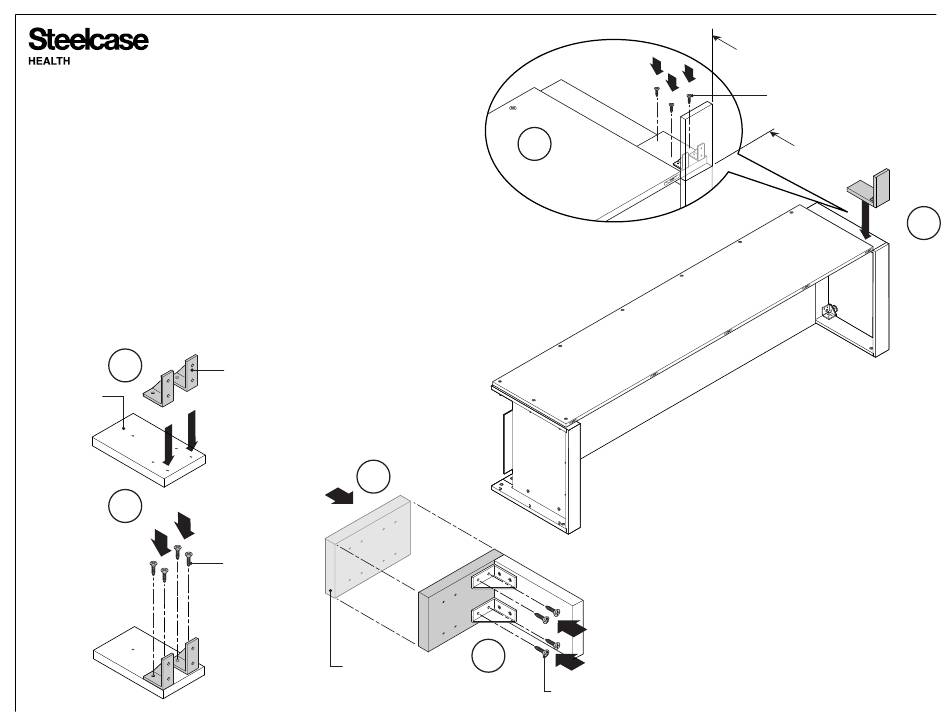

Align gussets at end of toeboard
(3a) and secure using four (4) 5/8"
wood screws (3b). Align toeboard
with toeboard side and gussets (3c).
Attach toeboard with four (4) 5/8"
wood screws though gussets and
into toeboard (3d).
4.
Align toeboard face flush with
base as shown (4a) and attach using
three (3) 1-1/4" wood screws (4b).
3a
TOEBOARD
SIDE
3b
GUSSETS
3c
FOUR (4) 5/8"
WOOD SCREWS
TOEBOARD
4b
3d
FOUR (4) 5/8"
WOOD SCREWS
FLUSH
THREE (3) 1-1/4"
WOOD SCREWS
FLUSH
4a
