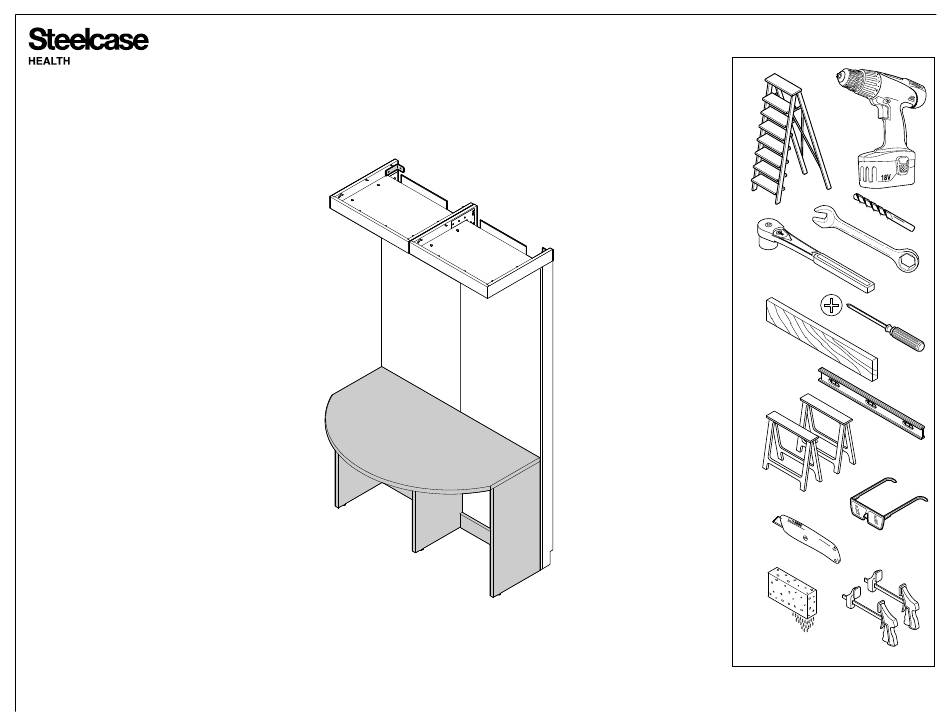

Wall Anchor Brackets are required
if it's a stand alone unit.
NOTE:
Add dust cover to the top
of each unit at the end of
the installation.
NOTE:
It is required to have two (2) people
to install this base unit assembly.

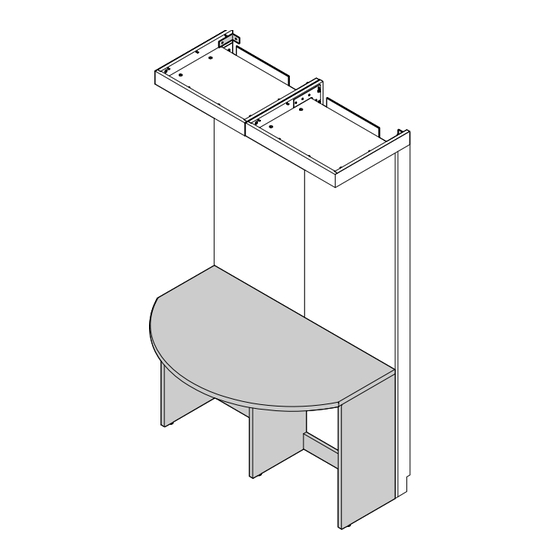

Opus™ Conference Table
2 Foot
Scrap Board
Padded
Saw Horses
Wet
Sponge
939500267 Rev H
5/16"
Page 1 of 15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Opus Conference Table
Summary of Contents for Steelcase Opus Conference Table
- Page 1 Scrap Board Padded Saw Horses If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico,...
-
Page 2: Back Assembly
® NOTE: 24" Base Assembly shown. BACK ASSEMBLY Lay back assembly onto two (2) padded saw horses. Insert pins and wood dowels into the holes of the back assembly as shown (1a). Before installing the wood dowel, wet the dowel with a wet sponge to activate the adhesive on the surface of the dowel (1b). - Page 3 CANOPY BACK ® ASSEMBLY ASSEMBLY Align the canopy assembly to the back assembly (2a). Make sure holes on the canopy assembly accept the pins and dowels on the back assembly (2b). Draw each cam lock, in a clockwise direction, into the center of the cam 0º...
- Page 4 PAPER ® BACKING Peel paper backing from pad (3a). Place pad onto back of base assembly as shown (3b). Cut excess pad when finished. Page 4 of 15 939500267 Rev H...
- Page 5 ® For second base assembly, repeat steps 1 thru 3. Place second base assembly next to the existing base assembly. Page 5 of 15 939500267 Rev H...
- Page 6 ® Make sure the front face of all base assemblies are flush with each other before clamping. Secure the back assemblies of both base assemblies together using quick clamps as shown. Page 6 of 15 939500267 Rev H...
- Page 7 ® Drill two (2) 5/16" diameter clearance holes through the canopy assemblies as shown. Secure using bolts, washers and nuts as BOLT shown. Bolts may be inserted from either side. DRILL 5/16" DIAMETER CLEARANCE HOLES (2) PLACES WASHER WASHER APPROX. 1-1/4"...
- Page 8 ® DRILL 5/16" DIAMETER CLEARANCE HOLES Drill four (4) 5/16" diameter clearance holes, per mating units, through the back assemblies as shown. Secure using bolts, washers and nuts as APPROX. shown. Bolt may be 20" inserted from either side. APPROX. 20"...
- Page 9 ® Place pins and dowels Align the sides to stretchers (14a). Make sure holes on the stretchers into the holes on the sides accept the pins and dowels on the sides (14b). Tighten the cam lock in a as as shown. clockwise direction.
- Page 10 ® MIDDLE DIVIDER Align middle divider with stretchers (15a) making sure divider is centered with the middle holes on the stretchers (15b). To make sure divider is centered, install wood WOOD DOWEL dowel through stretcher and into the middle divider (15c). Once centered, install screw into hole (15d).
- Page 11 ® Before installing the wood dowel, wet the dowel with a wet sponge to activate the adhesive on the surface of the dowel (16a). On the underside of the desk top, place one (1) dowel and one (1) pin into holes as shown (16b). Align the sides and middle WOOD DOWEL...
- Page 12 ® Flip base assemblies over and place on the floor as shown. Flip desk unit over as shown. Page 12 of 15 939500267 Rev H...
- Page 13 ® Lower desk unit onto base unit assemblies. SIDE OF BASE UNIT ASSEMBLY Center the desk on the base unit assembly (21a), making sure the sides of the desk top are flush with the sides of the base unit assemblies (21b) and the bottom of the desk unit is flush with the bottom of the base unit assemblies (21c).
-
Page 14: Wood Screw
® Secure the desk to the base assemblies by completing the predrilled clearance holes and installing the #8 x 1-1/4" wood screws. #8 x 1-1/4" WOOD SCREW Page 14 of 15 939500267 Rev H... - Page 15 ® Remove quick clamps from stretcher and flip unit upright as shown. If this is a 'stand alone' unit, move the desk assembly against the wall (24a) and level (24b). If there are multiple units, gang to adjacent units before moving against the wall and leveling.
