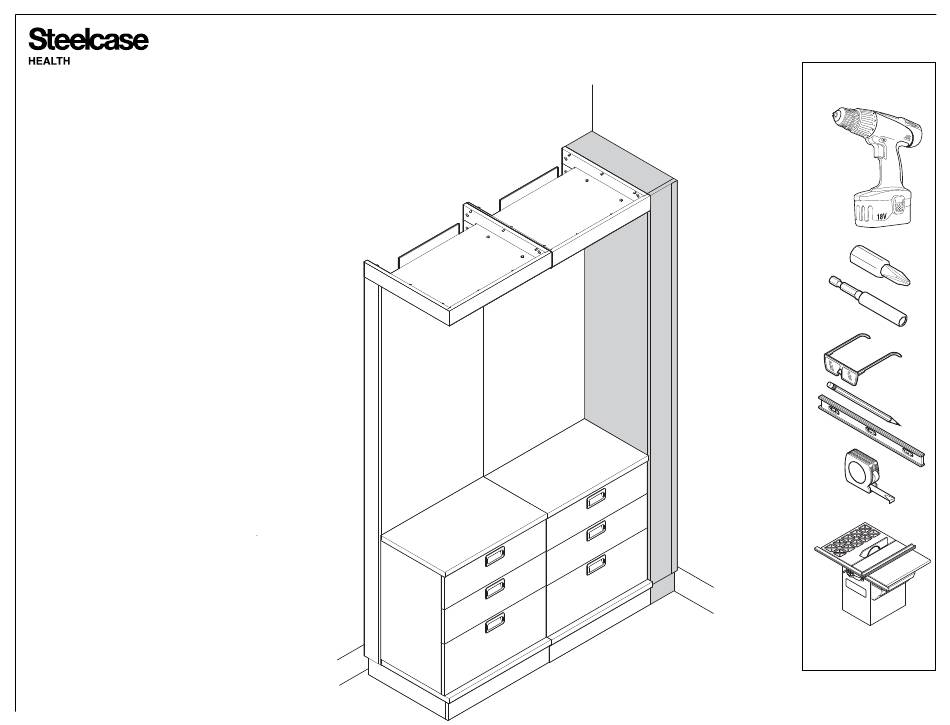

Opus™ End Filler Panel
®
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
2014 Steelcase Inc.
©
Grand Rapids, MI 49501
U.S.A.
Page 1 of 10
939500168 Rev F
Printed in U.S.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Opus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steelcase Opus

Summary of Contents for Steelcase Opus

  • Page 1 Opus™ End Filler Panel ® If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.

  • Page 2: Side Panel

    Turn base assembly on it's side. Lower the side panel onto the base assembly as shown (1a). Make sure there is a 1/8" offset at the top of the base assembly and make sure the front of the side panel is 3/4" from the front of the canopy (1b).
  • Page 3 Align gussets at end of toeboard (3a) and secure using four (4) 5/8" wood screws (3b). THREE (3) 1-1/4” WOOD SCREWS Align toeboard side to side panel (4a) and attach using three (3) 1-1/4" wood screws (4b). TOEBOARD GUSSETS SIDE FOUR (4) 5/8”...
  • Page 4 Push base unit into place. Level base unit. Secure units together and place in position against wall. Refer to assembly direction #939500801. Install storage cabinet. Refer to assembly direction #939500811. BASE Page 4 of 10 UNIT 939500168 Rev F...
  • Page 5 Remove drawers from the lower Secure lower storage cabinet to storage cabinet. side panel using two (2) 1-1/4" wood screws. TIP: Mark all drawers so they can be easily re-installed in their original Re-install drawers. positions. TWO (2) 1-1/4” WOOD SCREWS Page 5 of 10 939500168 Rev F...
  • Page 6 NOTE: Before running filler panel through saw, subtract 1/8" from each measurement to allow for foam tape. Run the filler panel through a table saw. When Measure distance from base trimming with a table saw, make sure the GOOD side assembly to wall at top and bottom.
  • Page 7 FILLER PANEL Peel paper backing from foam Insert (5) shoulder screws into tape (14a). Place foam tape onto the holes on filler panel. side of filler panel as shown (14b). Cut excess foam tape when finished. SHOULDER SCREWS FOAM TAPE PAPER BACKING Determine length (X) at which...
  • Page 8 Align toeboard with side panel, toeboard side and gussets (17a). Attach toeboard by inseting four (4) 5/8" wood screws though gussets and into toeboard (17b). GUSSETS TOEBOARD TOEBOARD FOUR (4) 5/8” WOOD SCREWS Page 8 of 10 939500168 Rev F...
  • Page 9 Align filler panel with side panel (18a) and insert the shoulder screws into the modeeze clips (18b) located on the front of the side panel. Push the panel downward (18c), until shoulder screw is securely seated (18d). Page 9 of 10 939500168 Rev F...

  • Page 10: Dust Cover

    DUST COVER Measure distance from base assembly to wall at front and rear for dust cover dimensions (19a). Run dust cover through table saw. Lower dust cover into place (19b) and attach using three (3) 1-1/4" wood screws (19c). Cut wall trim to length. Remove double face backer tape and install onto front of filler panel and snug against wall.
