Steelcase Ology Manual
  1. Manuals
  2. Brands
  3. Steelcase Manuals
  4. Indoor Furnishing
  5. Ology
  6. Manual

Steelcase Ology Manual

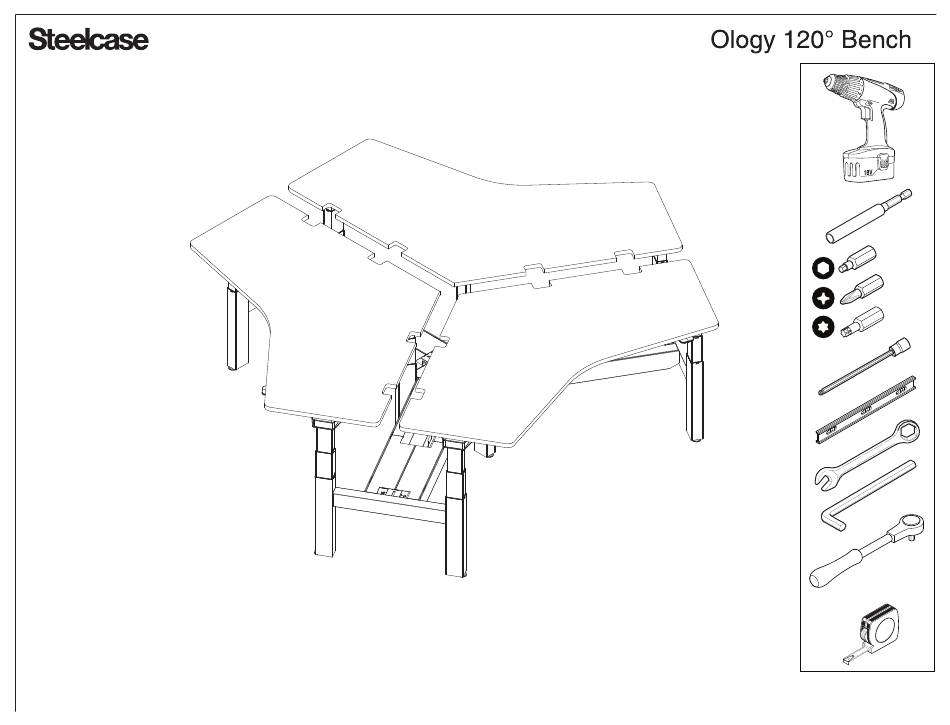

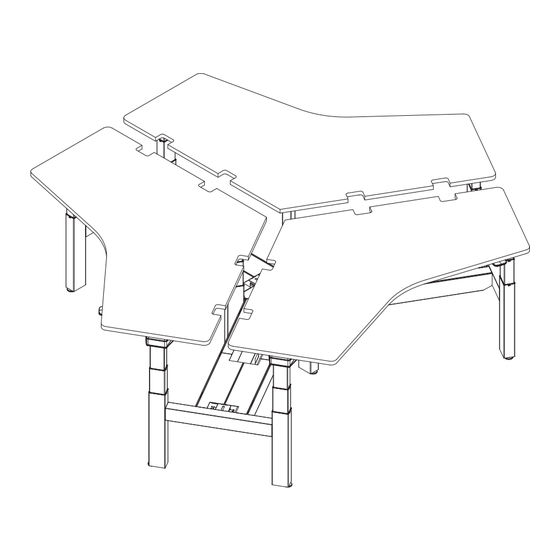

120 degree bench
Hide thumbs Also See for Ology:

Advertisement

Quick Links

Download this manual See also: User Manual, Manual
®
3, 5 & 6mm
T30
10mm
3, 5 & 6mm
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
TORQUE
WRENCH
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2018 Steelcase Inc.
Grand Rapids, MI 49501
Page 1 of 29
U.S.A.
115862001 Rev A
Printed in U.S.A.
